Your Definitive Guide to High-Performance Pressure Control Valves
The Unseen Regulator: Why Pressure Control is Mission-Critical
In the complex world of industrial and commercial fluid systems, pressure control isn’t just a technical detail. It’s the bedrock of operational safety, efficiency, and equipment longevity. Unregulated pressure can be a silent threat, leading to costly downtime, inconsistent product quality, and even catastrophic equipment failure.
At BCST Valve, we share your commitment to precise fluid management. That’s why we engineer and supply high-quality pressure control valves designed to be the reliable, unseen regulators that keep your most demanding applications running smoothly.
A pressure control valve is a sophisticated mechanical device specifically engineered to automatically manage and maintain fluid pressure within a system at a desired, stable level. This category includes specialized valves that react to pressure changes (like relief and reducing valves) and general-purpose vannes de contrôle like the Globe Control Valve , which can be used for precise pressure and flow regulation. Whether your goal is to limit maximum system pressure, reduce a high, fluctuating inlet pressure to a lower, stable outlet pressure, or sequence complex operations based on pressure thresholds, selecting the right valve is absolutely essential.
Decoding the Essentials: Key Types of Pressure Control Valves
The term “Pressure Control Valve” is an umbrella category that covers several specialized devices. Each type is designed to perform a distinct function, and understanding these differences is the first step in optimizing your system’s performance.
Type de vanne
Fonction principale
Common Synonyms & Related Terms
Typical Application
Product Image

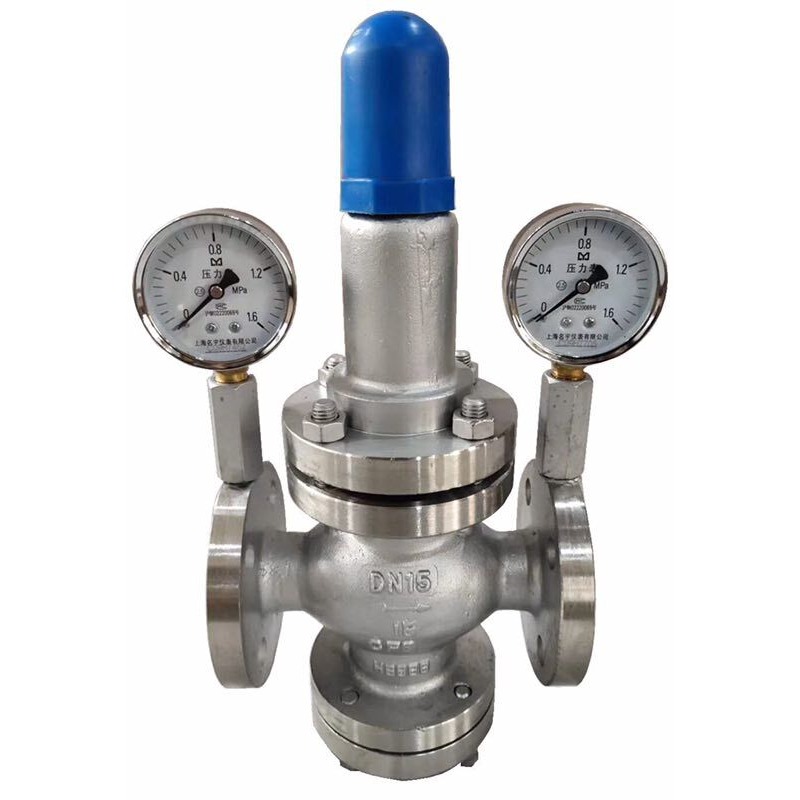

Réducteur de pression (PRV)
Automatically reduces a high, often fluctuating, upstream pressure to a lower, constant downstream pressure, maintaining stability regardless of changes in flow rate.
Pressure Regulator, Reducing Valve, Water Pressure Reducer, Pressure Reducing Regulator
Water distribution systems, HVAC, steam lines, process control in manufacturing.

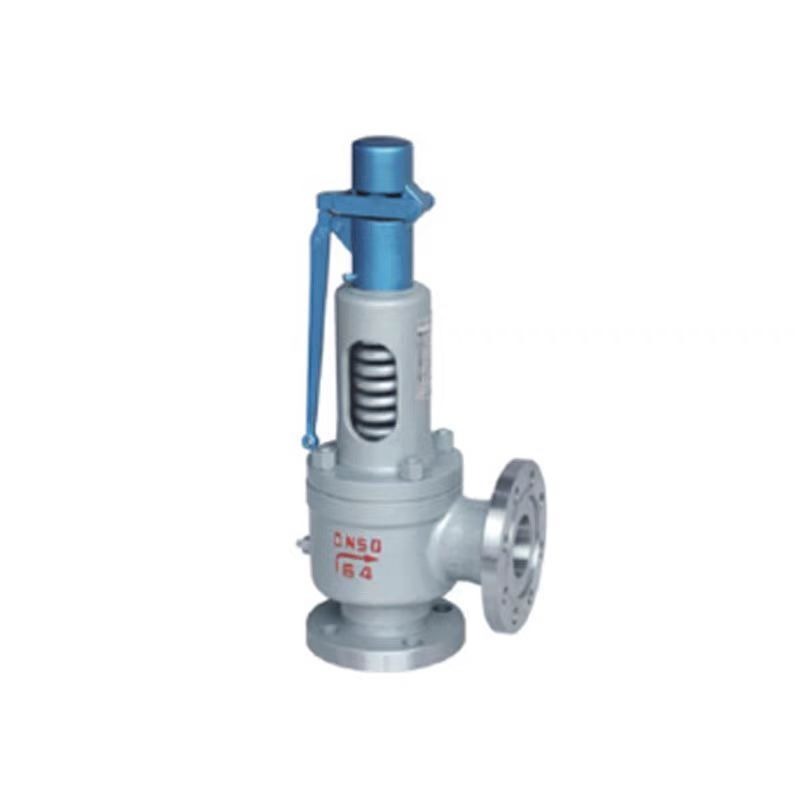

Pressure Relief Valve (Safety Valve)
Acts as a critical safety mechanism by rapidly venting excess fluid when the system pressure exceeds a pre-set maximum limit, preventing equipment damage.
Boilers, pressure vessels, pipelines, chemical and petrochemical processing.

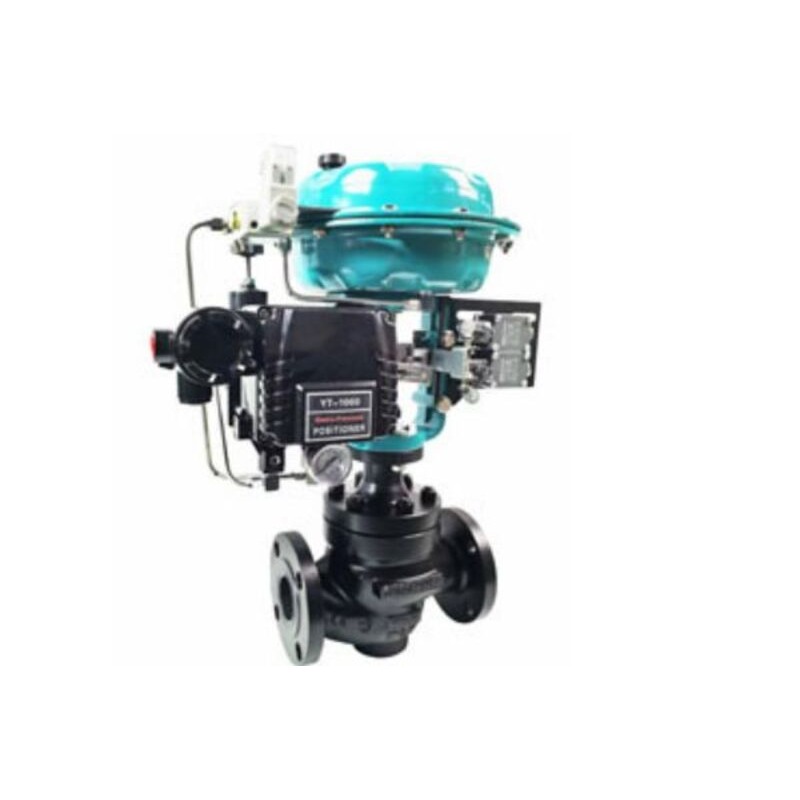

Vanne de régulation à soupape
Precisely regulates fluid flow and pressure by varying the distance between a movable plug and a stationary seat, offering excellent throttling capability.
Single-Seat Control Valve, Throttling Valve, Flow Regulator
Process control systems, steam regulation, high-pressure drop applications.
How They Work: The Core Principles of Pressure Control
Understanding the working mechanism of these valves is key to appreciating their role in system integrity. While their designs vary, each valve type employs a precise physical principle to achieve its specific control function.

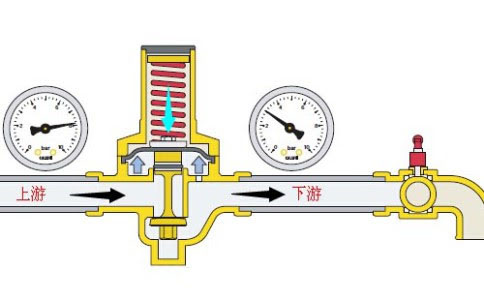

1. Pressure Reducing Valve (PRV) Working Principle
The Pressure Reducing Valve operates on a principle of force balance, acting as a self-regulating mechanism. The valve’s internal components—a diaphragm (or piston) and an adjustable spring—work in opposition. The spring is set to the desired downstream pressure. When fluid flows through the valve, the downstream pressure acts on the diaphragm, pushing against the spring force.
If the downstream pressure is too low: The spring force is greater, pushing the valve plug open to allow more flow, which increases the pressure.
If the downstream pressure is too high: The fluid pressure on the diaphragm overcomes the spring force, pushing the valve plug toward the seat. This reduces the flow area, effectively “throttling” the flow and bringing the downstream pressure back down to the set point.
This continuous, automatic adjustment ensures a stable, lower pressure is maintained, regardless of fluctuations in the high-pressure inlet side.

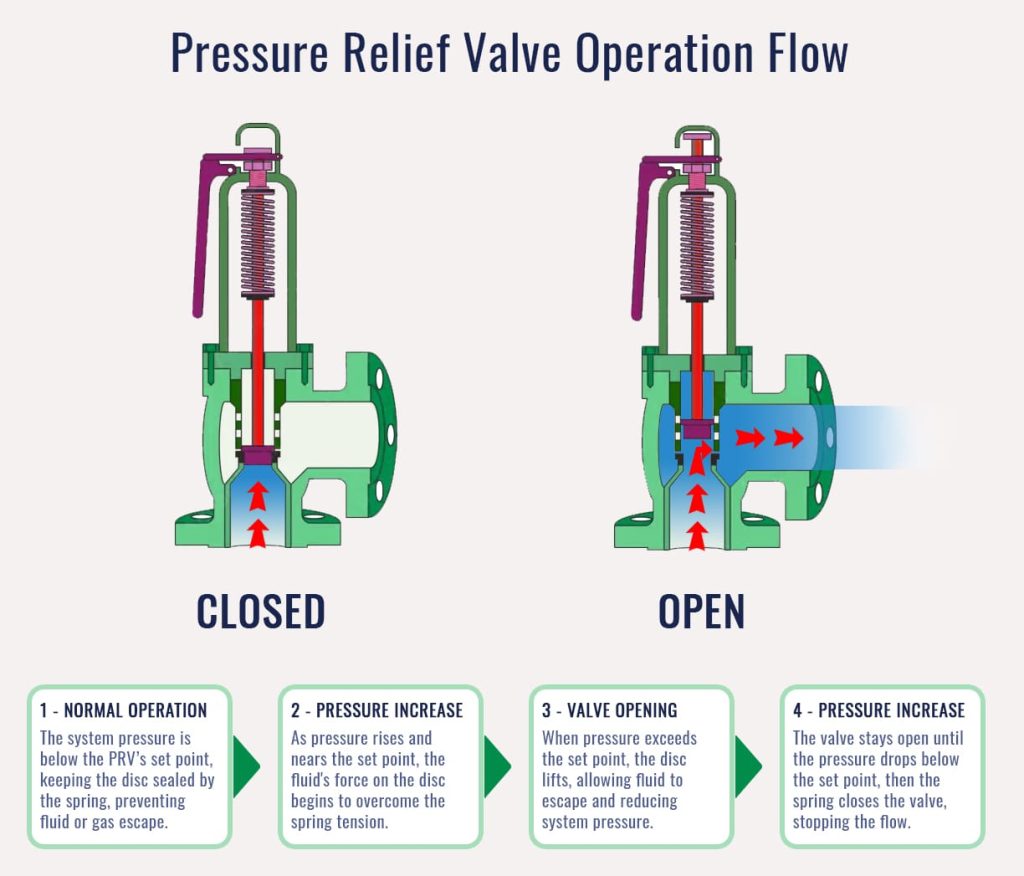

2. Pressure Relief Valve (Safety Valve) Working Principle
The Pressure Relief Valve is a critical safety device designed to prevent catastrophic overpressure. Its operation is simple and direct:
The valve’s disc or plug is held firmly against the inlet by a strong, calibrated spring (or a pilot mechanism). The force exerted by this spring is the set pressure.
As system pressure rises, it exerts an upward force on the disc.
When the system pressure exceeds the set pressure, the upward force overcomes the spring force, causing the valve to rapidly open (often called “popping”).
This opening creates a path for the excess fluid to be discharged, quickly reducing the system pressure.
Once the pressure drops back to a safe level (the reseating pressure), the spring force reseats the disc, closing the valve and restoring normal operation.

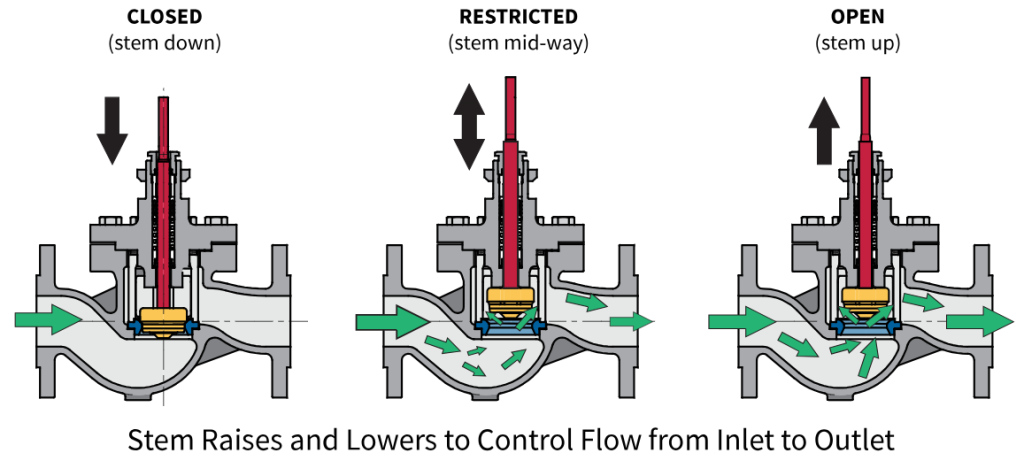

3. Globe Control Valve Working Principle
The Globe Control Valve is primarily a throttling valve, used for precise flow and pressure regulation. Unlike the self-actuating PRV and Relief Valve, the Globe Control Valve is typically actuated by an external source (pneumatic, electric, or hydraulic) to position its internal plug.
The valve’s design features a body with a movable plug that travels perpendicular to the flow path, seating against a stationary ring.
By adjusting the position of the plug relative to the seat, the flow area (and thus the resistance to flow) is precisely controlled.
This throttling action creates a pressure drop across the valve, allowing it to regulate both flow rate and downstream pressure with high accuracy. The linear motion and symmetrical flow characteristics give the Globe Control Valve excellent modulation and tight shut-off capabilities, making it the workhorse of automated process control.
The BCST Difference: Engineered for Durability and Performance
Choosing a reliable pressure control valve from BCST is a strategic, long-term investment in your operational integrity. Our products are not just components; they are precision instruments built on a foundation of durability, unparalleled accuracy, and minimal maintenance .
Why Choose BCST Pressure Control Solutions?
Unwavering Precision: Our pressure regulating valves are equipped with highly sensitive diaphragms and springs, ensuring an immediate and accurate response to pressure fluctuations. This allows for the maintenance of a tight tolerance on the set point, which is non-negotiable for applications demanding consistent process quality.
Rugged, Application-Specific Construction: Whether you require high-pressure relief valves for the harsh environments of oil and gas or water pressure reducing valves for municipal infrastructure, our products are available in a wide range of robust materials. This includes stainless steel, carbon steel, and specialized alloys, all chosen to withstand corrosive media, extreme temperatures, and high-cycle demands.
Optimized Energy Efficiency: By expertly managing system pressure, our pressure regulators play a direct role in minimizing pump energy consumption and reducing system heat. This translates directly into lower operating costs and a longer lifespan for your entire fluid system.
Comprehensive Technical Support: Our engineering team is ready to assist with valve selection, installation guidance, troubleshooting, and maintenance recommendations tailored to your specific application.

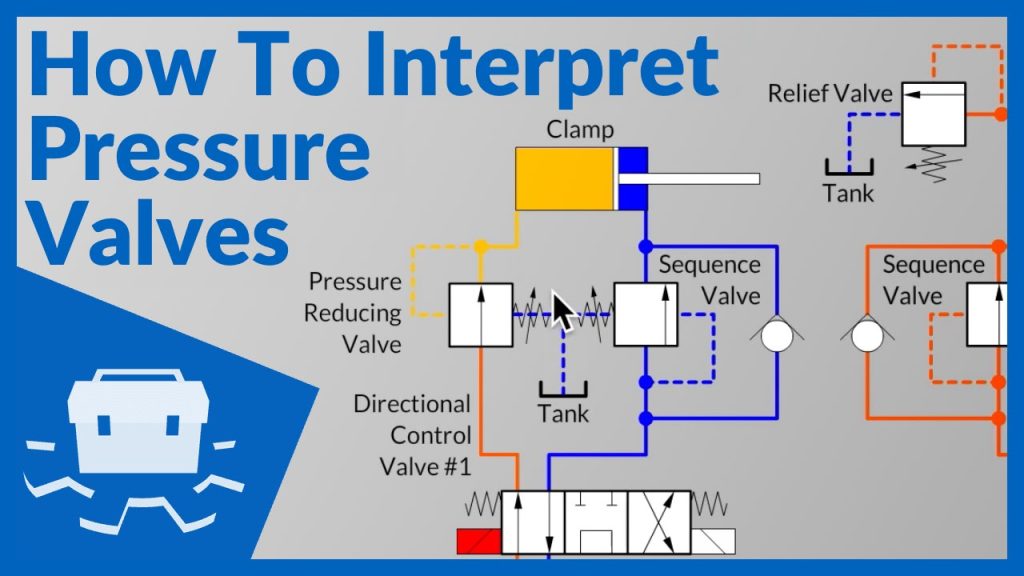

Figure 4: Standard hydraulic symbols for various pressure control valves used in system schematics.
Real-World Applications: Where BCST Valves Deliver Value
Our industrial pressure control valves are the dependable, behind-the-scenes workhorses that power critical operations across diverse sectors. Here’s where they make the biggest impact:

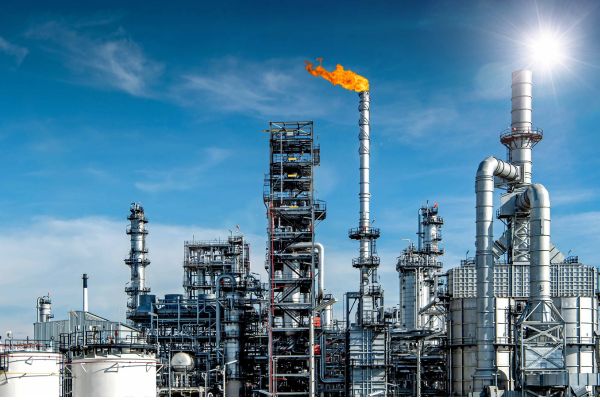

Oil & Gas and Petrochemical
Providing essential protection for pipelines, compressors, and processing equipment against dangerous overpressure events with our robust safety relief valves.
Production d'électricité
Guaranteeing stable steam and water pressure within boilers, turbines, and heat exchangers using our reliable pressure reducing regulators.

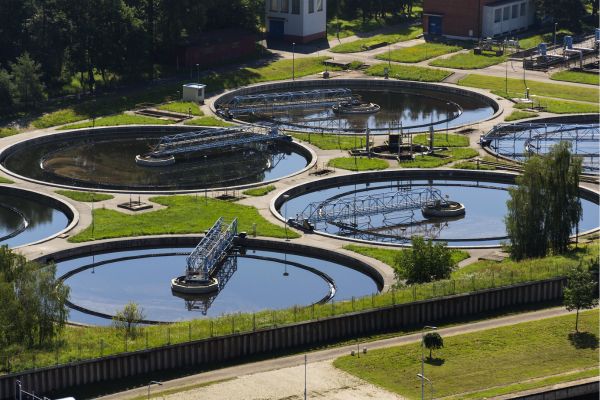

Water and Wastewater Treatment
Ensuring consistent, safe, and regulated water distribution pressure throughout municipal and large-scale industrial networks.
Ready to Elevate Your System's Performance?
Don’t let the risk of fluctuating pressure compromise your safety, efficiency, or bottom line. It’s time to explore BCST Valve’s comprehensive range of pressure control valve solutions .
Connect with BCST Valve’s expert engineering team for a personalized consultation. We will help you select the ideal pressure regulator or relief valve perfectly tailored to your specific technical requirements and application challenges.
Le vanne de régulation de pression is an essential part of any hydraulic system that assists in a variety of functions, such as keeping pressure below the desired limit and maintaining a set pressure in the circuit. You can find pressure control valves in every pneumatic and hydraulic system.
Before using the vanne de régulation de pression, you need to understand the valve’s functions, specifications, advantages, and disadvantages. We will cover important aspects of the vanne de régulation de pression dans ce guide.
1) Pourquoi utilise-t-on une vanne de régulation de pression ?
It is essential to control the pressure in the system. The pressure develops in the valve due to the fluid flow restriction. If we left unchecked, it can cause damage to the system, so it is essential to have a pressure control valve to control pressure levels.
The vanne de régulation de pression limite la pression maximale, règle la contre-pression, envoie un signal lorsque la pression réglée est dépassée, protège le système contre la surpression et met de la pression lorsque de l'huile entre dans le circuit. En l'absence de soupape de contrôle de la pression, les composants de la transmission par fluide peuvent être endommagés.
2. quel est le principe de fonctionnement d'une vanne de régulation de pression ?
Lorsque la pression augmente dans un système hydraulique, elle peut l'endommager. Les vanne de régulation de pression empêche ces dommages et la surchauffe du système. Il existe deux catégories principales de vannes de régulation de pression : les vannes à action directe et les vannes à commande pilote.
Principe de fonctionnement du robinet à action directe
L'action directe vanne de régulation de pression se compose d'un ressort, d'une chambre de vanne pilote, d'une chambre de vanne principale, d'une vis réglable et d'une chambre de membrane. Un ressort mécanique retient le débit du fluide. Vous pouvez utiliser le bouton pour modifier la tension du ressort qui finit par provoquer l'ouverture de la valve. La pression qui provoque l'ouverture de la soupape est appelée pression de fissuration. Lorsque cette pression est surmontée, le fluide s'écoule. Lorsque la pression de la soupape de décharge est maximale, la soupape s'ouvre et permet un écoulement maximal du fluide.
Principe de fonctionnement de la vanne à commande pilote
The pilot operating valve consists of a spring, an adjustable screw, the main valve chamber, a diaphragm, and a pilot valve chamber. The primary function of the screw is to maintain the pressure. You can increase or decrease the pressure by tightening or loosening the bolt. When you tighten the control screw, it increases pressure on the adjustable spring. It causes the diaphragm to deform and opens the pilot valve.
When the pilot valve opens, the pressurized steam enters the pilot valve; it causes the main diaphragm to open up. The opening of the main valve causes the flow of steam to the downstream line. The balancing line provides pressure on the diaphragm that balances the downward force on the spring. The pilot valve controls the flow of steam to the pilot valve chamber. You can adjust the pressure by holding the adjustable bolt, and the whole system balances automatically.
3. quelles sont les applications des vannes de régulation de pression ?
La vanne de régulation de pression est applicable dans diverses industries, telles que les centrales nucléaires, le pétrole, les centrales hydrauliques et les systèmes de contrôle pneumatique. Il contrôle la pression dans les systèmes d'eau, de vapeur et de gaz. Le vanne de régulation de pression is used widely in areas with high water pressure networks to control the pressure level.
The other applications of pressure control valves include air compressors, controlling the flow of load in pressure reactors, aerospace and aero craft, fuel engines, semiconductor machinery, air gauging, mining industries, tooling, and automation. It limits the maximum pressure by diverting the excessive oil when the pressure gets too high.
4. Quel est le principe de fonctionnement du clapet de régulation de la pression de décharge ?
Il existe des forces dans l'actionneur qui fonctionnent dans la plage de pression de tout système hydraulique. Cette plage est fonction des forces, et il faut contrôler ou limiter ces forces pour éviter tout dommage. La soupape de sûreté vanne de régulation de pression acts as a safeguard to limit the maximum pressure by diverting excessive oil when the pressure gets too high.
The relief valve can be direct acting or pilot operated. The direct-acting relief valve has no adjusting screw, opening at the preset pressure. A direct-acting relief valve consists of a ball on one side and a spring. The force exerted on the spring is higher than the force on the ball. The port of the valve returns leakage of fluid to the tank.
When the pressure rises, the ball allows the fluid to bypass the reservoir, maintaining the pressure at the valve setting. There is an adjusting screw in the relief valves, and you can use it to compress or decompress the spring. The direct-acting relief valve blocks flow until the force of pressure on the poppet overcomes the pressure on spring force and downstream pressure.
The pilot-operated relief valves are suitable in applications that must relieve large flow with small differential pressure.
5. comment installer une vanne de régulation de pression ?
Avant d'acheter le vanne de régulation de pressionVous devez vous assurer que vous disposez de tous les bouchons et de tous les emballages nécessaires à l'installation. Avant l'installation, assurez-vous que les raccords, les bouchons et les joints sont en place. Voici les étapes à suivre lors de l'installation.
Ne soulevez pas le robinet par le tuyau, car vous risquez de déformer le point de connexion et de rompre l'étanchéité du robinet. Il est préférable de soulever la soupape par le corps ou les crochets de levage en haut.
Installer les robinets à boisseau sphérique en amont et en aval de la vanne de régulation.
Installer le vanne de régulation de pressiondans l'orientation verticale. L'orientation horizontale entraînera un poids sur la tige de la valve, ce qui peut provoquer des fuites.
Vérifier la position d'échec du vanne de régulation de pressionen regardant la position de l'indicateur pour voir si la valve est ouverte ou fermée. La vanne ouverte signifie qu'elle est réglée sur l'ouverture et la vanne fermée sur la fermeture.
Inspectez minutieusement la valve pour éviter toute saleté sur l'orifice d'aération de la valve. vanne de régulation de pression. La saleté humidifie l'alimentation en gaz et provoque de l'humidité. Utilisez de l'air comprimé pour extraire le gaz d'alimentation.
Lors de l'installation, serrez les boulons en étoile et remplacez les paniers de la bride s'ils sont endommagés.
Utilisez du ruban de téflon sur les filetages pour sceller la connexion et éviter les fuites.
6. quelle est l'importance des vannes de contrôle de la pression ?
Le vanne de régulation de pression is part of every hydraulic system in keeping the system pressure below the desired upper limit. The pressure control valve prevents the bursting and leakage of pipelines. It manages the pressure by removing the excessive pressure. Due to these valves’ high performance and effectiveness, they are used in all hydraulic systems.
With a vanne de régulation de pression Dans le système, vous pouvez gérer la pression du système à des niveaux régulés afin de garantir la pression statique. Le système hydraulique peut être endommagé pour diverses raisons. Par exemple, la pompe est déchargée ou recircule dans le réservoir. A vanne de régulation de pression peut contrôler la force et la pression de l'actionneur et les maintenir à des niveaux sûrs.
7. Quel est le modèle d'établissement de la vanne de régulation de pression ?
To understand the model’s analysis and processing, we need to make a few assumptions.
L'effet de l'huile hydraulique n'affecte pas les caractéristiques de la vanne, nous ne tiendrons donc pas compte de son influence dans le processus de modélisation.
La force de frottement, la force d'inertie et la force de serrage affectant le cœur de la vanne avec de faibles valeurs, leur influence sera également ignorée dans le processus de modélisation.
Aucune fuite interne ou externe de la valve ne sera prise en compte.
Une faible distance entre le noyau de la valve et le manchon fait que le noyau de la valve se déplace selon un seul degré de liberté le long de l'axe, de sorte que le mouvement de rotation par rapport à l'axe est ignoré.
The valve core balance equation will be:
P1 A1 – P2 A2 –P3A3 = m1 d2x/dt2 + (BS1 + Bx)dx/dt + Kx (x+x˳) + Bw1 x
8. quelles sont les spécifications des vannes de régulation de pression ?
Il s'agit d'un robinet à tournant sphérique qui permet un contrôle élevé et une grande souplesse de l'élément régulateur. Il permet d'obtenir des débits, des pressions et des températures élevés.
Les vannes d'équilibrage sont chargées de maintenir la température constante de l'eau et de compenser la perte de charge.
Les vannes de régulation de pression sont pilotées ou actionnées hydrauliquement par une membrane ou un piston. Elles sont fabriquées en acier inoxydable ou en bronze.
La tige indicatrice est un élément important de la vanne de régulation de pression pour indiquer la position de la vanne.
Le corps du robinet, les brides et les couvercles sont fabriqués conformément à la norme ASTM A 126, classe B, ou ASTM A 48, classe 35 en acier inoxydable. Le bronze de la garniture interne est conforme à la norme ASTM B 62.
La vanne pilote de la vanne principale est à simple siège, à membrane ou à ressort. Il est conseillé d'installer la vanne pilote sur la vanne principale pour faciliter les réglages.
9. quels sont les avantages d'une vanne de régulation de pression ?
Le vanne de régulation de pression assists in various functions like keeping the pressure below the desired limit and controlling the flow of fluid depending on the signal from the controller. It also controls the flow of liquid, pressure, and temperature. It is also referred to as a final control element in automatic control terminology.
A vanne de régulation de pression régule l'ouverture et la fermeture de la vanne de régulation dans les actionneurs pneumatiques, hydrauliques et électriques. Les boucles de régulation fixent la température et la pression dans la plage de fonctionnement. Les capteurs mesurent les éventuelles perturbations internes et les vanne de régulation de pression veille à corriger ces perturbations. Les vanne de régulation de pression joue un rôle essentiel dans le maintien du bon fonctionnement du système. Il garantit l'efficacité du système, de l'opérateur et de l'entreprise dans son ensemble.
10. Comment fonctionne le régulateur de pression dans un système hydraulique ?
Différentes vannes remplissent diverses fonctions dans le circuit. Les vanne de régulation de pression contrôle la pression dans le système hydraulique en détournant le flux de fluide vers l'autre voie lorsqu'il atteint la pression prédéfinie. Le système vanne de régulation de pression acts as a fuse that protects the system from the excess current by keeping it within a limit.
The downstream pressure actuates the pressure control valve that starts reverse free flow. The valve dumps excess fluid into the tank in high-low pump circuits. These pumps move on the actuator at low pressure and high speed. The vanne de régulation de pression maintient la baisse de pression en envoyant l'excès de débit provenant du réservoir.
11. qu'est-ce qu'un régulateur de pression de précision dans une vanne de contrôle de la pression ?
The purpose of the precision regulator is to provide constant pressure output concerning fluctuating supply pressure. Various reasons can cause fluctuations in the pressure, such as excessive downstream pressure, leakage, temperature changes, changes in pressure flows, etc. Pressure regulators are important for accurate maintenance.
The pressure regulator provides controlled pressure that ensures workspace safety. The overall system will perform more effectively when there is less wastage of pressurized air. You can also prevent damage to the machine and equipment.
12. qu'est-ce qu'un manomètre et comment fonctionne-t-il dans une vanne de régulation de pression ?
Manometers are the measuring instrument for measuring pressure. It provides accurate measurement of different pressure values. There are two manometers for measuring pressure, analogue and digital manometers. Analog manometer operates using the hydrostatic balance principle. It has U shaped tube, and both ends are open to measure atmospheric pressure. The fluid level in the two tubes shows the amount of pressure applied.
Digital manometers consist of a pressure transducer device that converts the pressure level into an electrical signal. This signal is proportional to the magnitude of pressure, and you can calibrate the electrical parameter after detection to a pressure reading.
Digital manometers are portable with easy displays as compared to analogue manometers. They don’t need periodic calibrations as digital manometers don’t have primary standards. They also provide accurate measurement because of using computer applications.
13. comment étalonner la vanne de contrôle de la pression ?
L'étalonnage est très important pour déterminer la quantité d'erreurs dans un appareil de mesure. Pour des raisons de sécurité, l'étalonnage doit être effectué une fois par an. Pour étalonner le vanne de régulation de pressionVous devez suivre les étapes suivantes.
Déterminer le point de consigne de la vanne de régulation de pression. Ce point de consigne anticipe l'ouverture de la vanne en contrôlant la pression.
Une fois le point de consigne déterminé, il faut s'assurer qu'il n'y a pas de fuite.
Augmentez la pression, vérifiez la pression affichée sur l'écran et inscrivez-la sur la fiche de données de mesure.
Diminuez lentement le débit de pression et observez la fermeture de la valve. Enregistrez cette mesure et répétez la même procédure 2 ou 3 fois.
Lors de l'étalonnage, vous devez observer trois étapes : la pression de réglage, la surpression et la pression de fermeture. La pression de réglage est la pression relevée lorsque la soupape relâche brusquement la pression. La surpression est la pression lorsque la soupape est complètement ouverte. La pression de fermeture est la pression de réarmement, et c'est là que la soupape cesse de relâcher la pression.
14. comment choisir la bonne vanne de régulation de pression ?
Pour la sélection de l'outil adéquat vanne de régulation de pression, you need to keep certain things in mind. You need to understand the material of the valve according to the requirement of the project. The media that flows through the valve can affect the valve’s performance. The wrong material can affect the performance of the valve.
Various corrosive resistant valves can ensure the high performance of the valve. The pressure valve size is also very important in measuring the pressure. If the size is too small, it will be challenging to carry out the task. The incorrect valve size can also damage the system, so it is essential to know the size of the valve based on the requirement of the project.
The third concern is the pricing of the vanne de régulation de pression. Vous devez envisager plusieurs options et choisir la soupape de pression qui vous convient le mieux.
