Pressure Vacuum Vent Manufacturer
Pressure Vacuum Vents for Industrial Storage Tank Protection
BCST Valve is a pressure vacuum vent manufacturer supporting atmospheric and low-pressure storage tank applications. Our pressure vacuum vents help protect tanks from excessive pressure and damaging vacuum during filling, emptying, and thermal breathing.
Share your tank data with our engineering team to select the required vent type, pressure setting, vacuum setting, capacity, material, connection, and discharge arrangement.
Pressure Protection
Relieves excessive tank pressure during outbreathing
Vacuum Protection
Allows controlled inbreathing when tank vacuum increases
Vapor Conservation
Helps reduce unnecessary vapor release during normal operation
Factory Engineering
Supports custom settings, materials, sizes, and connections
Product Collection
Pressure Vacuum Vent Configurations
Different tanks require different operating mechanisms, discharge arrangements, materials, set points, and venting capacities.

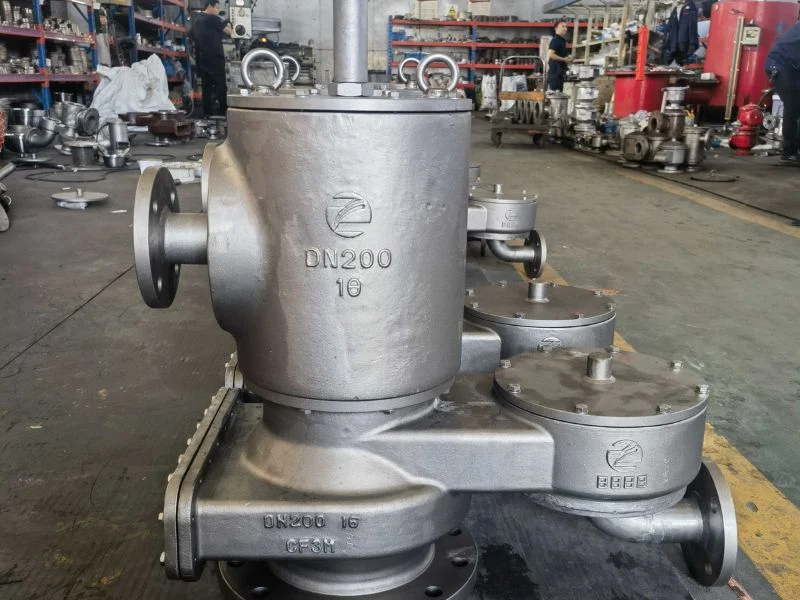

Weighted Pressure Vacuum Vent
Uses weighted pallets to establish pressure and vacuum settings for suitable low-pressure storage applications.
- Simple mechanical construction
- Separate pressure and vacuum pallets
- Multiple size and material options
Spring-Loaded Pressure Vacuum Vent
Uses spring force to support selected set points or configurations beyond suitable weighted-pallet designs.
- Spring-assisted operation
- Application-specific settings
- Compact configuration options

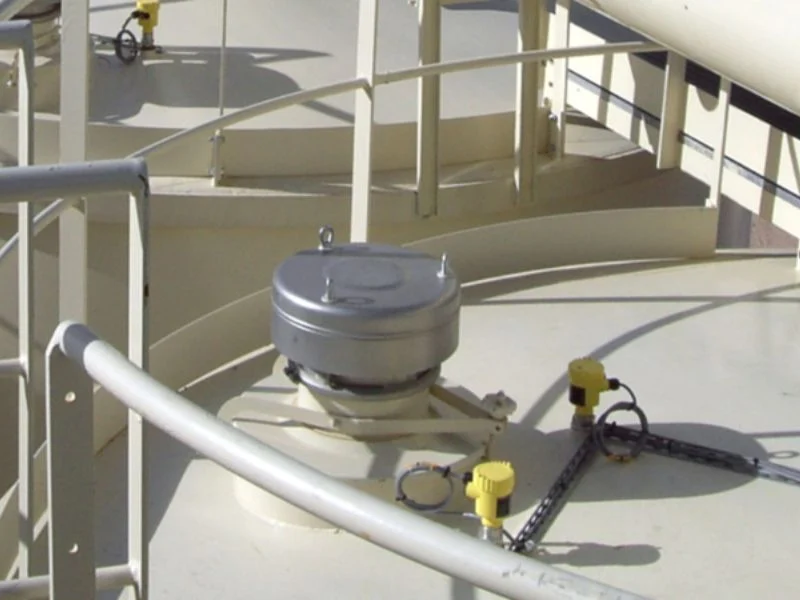

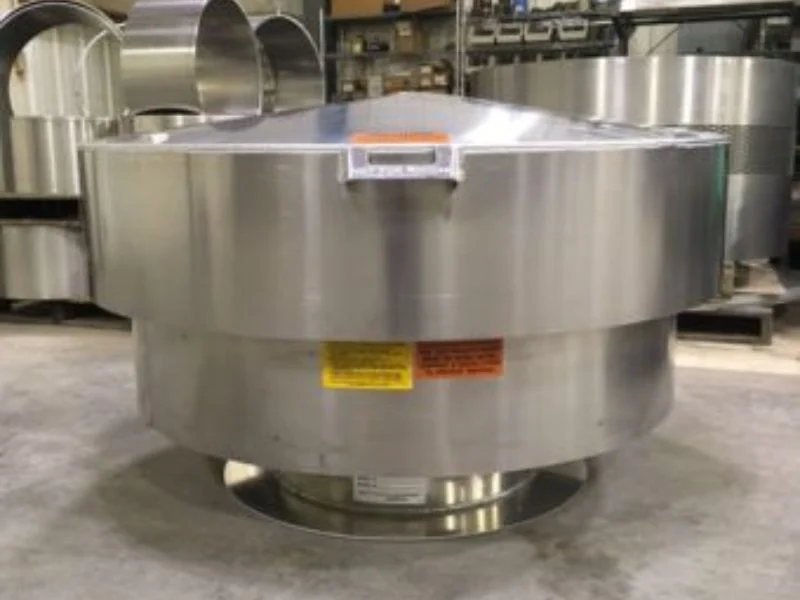

End-of-Line Pressure Vacuum Vent
Discharges directly to atmosphere through a weather-protected outlet mounted on the tank vent connection.
- Tank-top installation
- Weather hood arrangement
- Direct atmospheric discharge

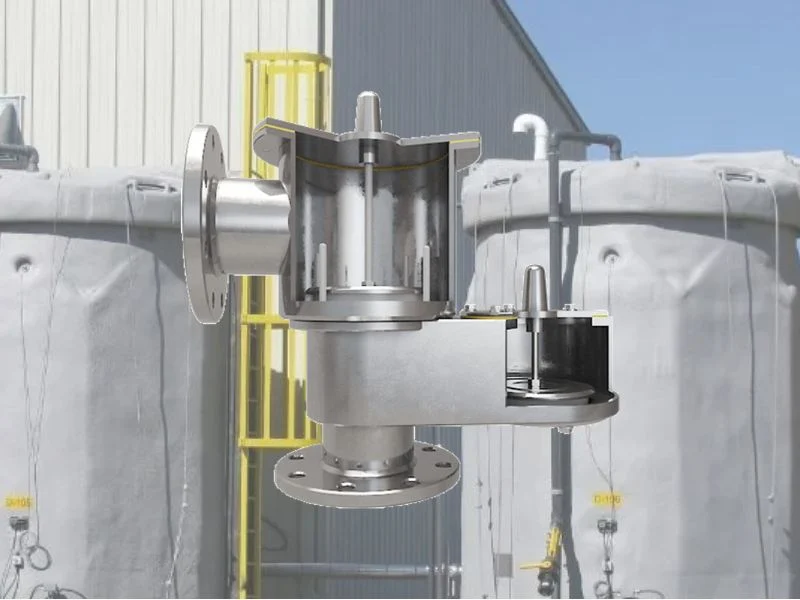

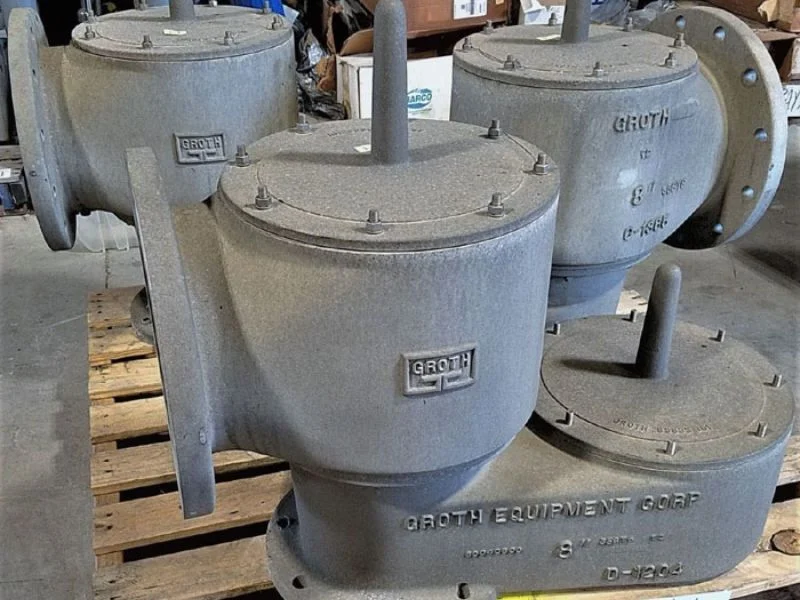

Pipe-Away Pressure Vacuum Vent
Provides a connected outlet for routing discharged vapor into a recovery, collection, or treatment system.
- Flanged discharge connection
- Vapor-routing capability
- Outlet pressure-loss review
Pressure-Only Tank Vent
Provides controlled outward venting for tanks requiring pressure relief without an integrated vacuum pallet.
- Pressure-relief function
- Selected opening pressure
- Multiple discharge arrangements

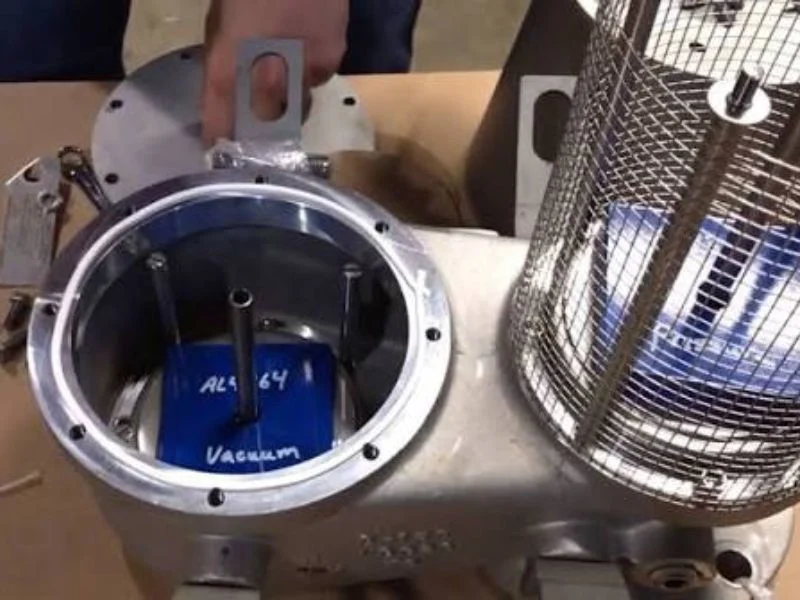

Vacuum-Only Tank Vent
Provides controlled inward flow when liquid withdrawal, cooling, or condensation creates excessive tank vacuum.
- Vacuum-relief function
- Selected vacuum setting
- Weather-protected options
Product Comparison
Compare Pressure Vacuum Vent Types
Use this table for initial comparison. Final selection should be based on complete tank and operating data.
| Vent Type | Fonction principale | Typical Application | Key Selection Point |
|---|---|---|---|
| Weighted Pressure Vacuum Vent | Combined pressure and vacuum relief | Atmospheric and low-pressure storage tanks | Set points, pallet weight, orientation, and capacity |
| Spring-Loaded Pressure Vacuum Vent | Spring-controlled pressure and vacuum relief | Selected settings or compact configurations | Spring range, operating stability, and materials |
| End-of-Line Vent | Direct atmospheric tank breathing | Tank roof and open discharge applications | Weather protection and safe discharge location |
| Pipe-Away Vent | Tank breathing through connected piping | Vapor recovery or treatment systems | Outlet backpressure and piping pressure loss |
| Pressure-Only Vent | Outbreathing pressure relief | Tanks with separate vacuum protection | Pressure setting and required outflow capacity |
| Vacuum-Only Vent | Inbreathing vacuum relief | Tanks with separate pressure protection | Vacuum setting and required inflow capacity |
Principe de fonctionnement
How Does a Pressure Vacuum Vent Work?
The vent normally remains closed while tank pressure and vacuum stay within the intended operating range. Its pressure and vacuum pallets respond independently when their selected settings are reached.
- Tank filling or thermal expansion increases internal pressure.
- The pressure pallet opens at the selected pressure setting.
- Vapor leaves the tank until pressure returns toward the normal range.
- Tank emptying, cooling, or condensation creates vacuum.
- The vacuum pallet opens at the selected vacuum setting.
- Air or inert gas enters until the vacuum condition is reduced.
Manufacturer Selection
What Should You Ask a Pressure Vacuum Vent Manufacturer?
A reliable manufacturer should be able to connect the tank application with product selection, factory inspection, testing, and documentation.
Can You Review the Tank Data?
The manufacturer should request tank design limits, filling and emptying rates, medium, temperature, set points, and installation details.
Can You Confirm the Capacity?
The proposed vent should be evaluated against required inbreathing, outbreathing, pressure loss, and connected piping conditions.
Can You Verify the Materials?
Body, pallets, seats, seals, screens, fasteners, and coatings should be selected around the medium and environment.
Can You Provide Drawings?
Datasheets and general arrangement drawings should confirm dimensions, connections, materials, settings, and configuration.
Can the Factory Test Set Points?
Applicable pressure and vacuum set-point testing should be defined before production and recorded when included in scope.
Can You Support Replacement?
The factory should review the existing nameplate, dimensions, settings, connection, condition, and operating problem.
Application Data
Information Required for Vent Selection
Accurate tank and process data is essential for determining set points, capacity, materials, size, and configuration.
Tank and Process Conditions
- Tank type and dimensions
- Stored medium and vapor characteristics
- Tank design pressure
- Tank design vacuum
- Normal operating pressure
- Operating and design temperature
- Ambient operating conditions
Venting and Product Requirements
- Maximum filling rate
- Maximum emptying rate
- Required pressure-relief capacity
- Required vacuum-relief capacity
- Pressure and vacuum set points
- Connection size and flange standard
- Body and internal materials
| Selection Factor | Why It Matters |
|---|---|
| Tank Design Limits | The selected pressure and vacuum settings must remain within the allowable limits of the tank. |
| Filling Rate | Influences the required pressure-relief or outbreathing capacity. |
| Emptying Rate | Influences the required vacuum-relief or inbreathing capacity. |
| Thermal Breathing | Temperature changes can expand or contract the vapor inside the tank. |
| Stored Medium | Affects material compatibility, corrosion resistance, vapor behavior, and safety evaluation. |
| Connected Piping | Inlet and outlet pressure losses can reduce the available venting capacity. |
Sizing and Capacity
Vent Size Should Not Be Selected by Tank Nozzle Alone
The existing nozzle size does not automatically confirm that a pressure vacuum vent can provide the required capacity. The complete breathing demand and installation pressure loss should be evaluated.
- Normal liquid filling rate
- Normal liquid emptying rate
- Thermal outbreathing
- Thermal inbreathing
- Tank pressure and vacuum limits
- Selected pressure and vacuum settings
- Vapor density and operating temperature
- Inlet and outlet piping losses
- Additional flame arrester pressure drop
- Required operating and design margins
Factory Capability
Pressure Vacuum Vent Factory Support
BCST Valve coordinates pressure vacuum vent manufacturing around the approved product configuration and project quality requirements.
- Drawing and technical-data confirmation
- Material and component review
- Machining and dimensional inspection
- Pallet, seat, seal, and guide inspection
- Product assembly and movement checks
- Applicable set-point and leakage testing
- Nameplate and marking verification
- Export packing and documentation review
Matériaux
Material Options for Storage Tank Service
Material selection should consider the stored medium, vapor concentration, corrosion, temperature, external environment, and project specification.
| Material Option | Typical Consideration | Common Application |
|---|---|---|
| Acier au carbone | General industrial service where material compatibility is confirmed | Fuel, oil, and general process storage |
| Acier inoxydable | Improved corrosion resistance and process cleanliness | Chemical, solvent, and corrosive vapor service |
| Aluminium | Lightweight construction for compatible service conditions | Selected atmospheric storage applications |
| Duplex Stainless Steel | Higher strength and resistance in selected chloride environments | Marine, terminal, and demanding chemical service |
| Special Alloy | Application-specific resistance to aggressive media | Severe chemical and specialty process storage |
| Protective Coating | Additional external or internal surface protection | Corrosive plant and coastal environments |
Applications
Pressure Vacuum Vent Applications
Oil and Fuel Storage
Pressure and vacuum protection for crude oil, diesel, fuel, and hydrocarbon storage tanks.
Tank Farms and Terminals
Tank breathing and vapor conservation for storage terminals, loading facilities, and transfer operations.
Raffineries
Protection for crude, intermediate-product, and finished-product storage tanks.
Chemical Storage
Material-compatible pressure and vacuum protection for chemicals, solvents, and process media.
Usines pétrochimiques
Tank venting for feedstock, process storage, vapor recovery, and finished products.
Traitement de l'eau
Vent protection for chemical dosing, treatment, wastewater, and utility storage tanks.
Inspection and Testing
How Does the Factory Verify the Finished Vent?
Inspection and testing requirements are confirmed according to the product, tank application, project specification, and agreed supply scope.
- Material and certificate review
- Visual and dimensional inspection
- Pressure set-point testing where applicable
- Vacuum set-point testing where applicable
- Pallet movement and operational checks
- Leakage inspection where applicable
- Product marking and nameplate review
- Final documentation and packing inspection
Engineering Workflow
From Tank Data to Factory Delivery
Review the Tank
We review the tank, medium, design limits, temperature, filling rate, emptying rate, and installation.
Select the Vent
We evaluate vent type, set points, capacity, size, material, connection, and outlet arrangement.
Confirm the Scope
Datasheets, drawings, inspection, testing, documentation, quantity, and delivery are confirmed.
Manufacture and Deliver
Production, inspection, packing, shipment, installation guidance, and support are coordinated.
Custom Manufacturing
Custom Pressure Vacuum Vents from the Factory
When a standard product does not match the tank, medium, connection, set point, capacity, or installation, BCST Valve can evaluate a custom configuration.
- Special pressure and vacuum settings
- Custom inbreathing and outbreathing capacities
- Special connection sizes and flange standards
- Carbon steel, stainless steel, and special alloys
- Special seats, seals, screens, and coatings
- End-of-line and pipe-away arrangements
- Combined flame arrester configurations
- Replacement compatibility review
- Project-specific document packages
Request a Selection
Send Your Tank Data to the Manufacturer
Provide your tank dimensions, stored medium, design pressure, design vacuum, temperature, filling rate, emptying rate, set points, connection, material, quantity, and documentation requirements.
Questions fréquemment posées
Pressure Vacuum Vent FAQ
What is a pressure vacuum vent?
A pressure vacuum vent is a tank-mounted device that opens at selected pressure and vacuum settings to protect a storage tank during filling, emptying, and thermal breathing.
Is a pressure vacuum vent the same as a breather valve?
The terms are often used interchangeably. Pressure vacuum vent specifically describes a product providing both pressure-relief and vacuum-relief functions.
How does a pressure vacuum vent protect a tank?
It releases vapor when internal pressure reaches the selected setting and allows air or gas to enter when vacuum reaches the selected setting.
How is a pressure vacuum vent sized?
Sizing considers tank design limits, filling rate, emptying rate, thermal breathing, stored medium, set points, piping losses, and required capacity.
How should the pressure and vacuum settings be selected?
The settings should remain within the tank design limits while allowing normal operation and providing sufficient operating margin.
What is the difference between weighted and spring-loaded vents?
A weighted vent uses pallet weight to establish the setting. A spring-loaded vent uses spring force for selected settings or installation requirements.
What is the difference between end-of-line and pipe-away vents?
An end-of-line vent discharges directly to atmosphere. A pipe-away vent routes vapor through connected piping to a collection, recovery, or treatment system.
Can a pressure vacuum vent reduce vapor loss?
Yes. A suitable vent remains closed until its set point is reached, helping reduce unnecessary vapor release compared with an open vent.
Can a flame arrester be installed with a pressure vacuum vent?
Yes, in selected applications. Vapor characteristics, flame-protection requirements, pressure drop, capacity, and installation must be evaluated.
Can the factory manufacture a custom pressure vacuum vent?
Custom settings, capacities, sizes, materials, connections, outlets, coatings, and combined configurations can be evaluated.
How do I evaluate a pressure vacuum vent supplier?
Review the supplier’s application process, factory capabilities, drawings, material control, testing scope, documentation, customization, and after-sales support.
What information is required for a factory quotation?
Please provide the tank size, medium, design pressure, design vacuum, temperature, filling rate, emptying rate, set points, connection, material, quantity, and required documents.
