Pneumatic & Electric Valve Actuators For Automated Flow Control

A valve actuator is the “brain” and “muscle” of a fluid control system. It is a mechanical device used to provide the force required to operate a valve specifically to move the plug, ball, or disc into an open, closed, or modulating position. In manual systems, a person turns a handwheel or lever; in automated systems, the actuator replaces the human element, responding to a signal from a control system (like a PLC) to manage flow, pressure, and temperature remotely and precisely.

You need a reliable valve actuator for automated flow control, but the options – pneumatic spring-return, double-acting, or electric – can be overwhelming. The wrong choice leads to slow response, inadequate torque, or costly field failures. Here’s exactly when to pick each type, backed by ISO 5211, NAMUR, and industry best practices.

For fail-safe on/off with pneumatic supply → Spring-Return Pneumatic Actuator. For high cycle, fast operation without spring → Double-Acting Pneumatic Actuator. For precise modulating control, no instrument air → Electric Actuator (multi-turn or part-turn). For ultra-high torque, heavy-duty service → Scotch Yoke Pneumatic Actuator.

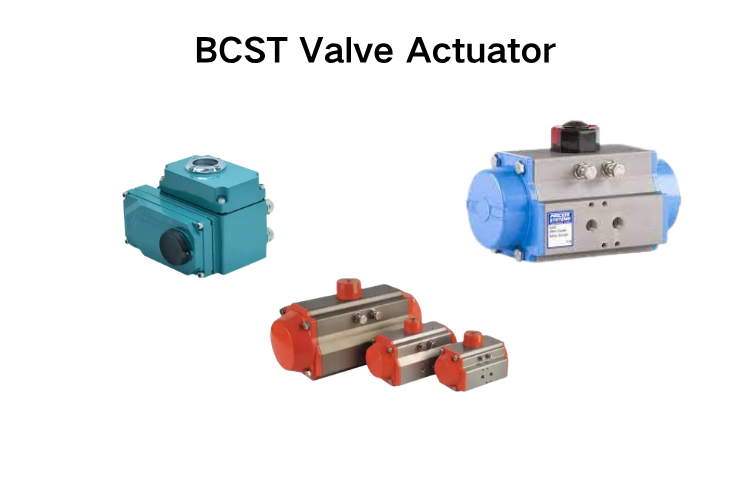

Figure 1: Three main valve actuator configurations – each optimized for different automation requirements.

Real-world lesson: A chemical plant automated a critical reactor vent valve with a double-acting pneumatic actuator, assuming air supply would always be available. After a plant air compressor failure, the valve could not close, causing a hazardous release. They replaced it with a spring-return fail-safe actuator – the lesson: always specify fail-safe position for ESD and critical isolation.

What You Really Need to Know Before Choosing a Valve Actuator

Your selection hinges on four pillars: torque requirement (break, running, seat torque), fail-safe action (spring-return or electric backup), control type (on/off or modulating), and environment (hazardous area, temperature, available utilities). Also consider cycle speed, duty cycle, and maintenance access. Below we break down each actuator family with technical depth and field-proven advice.

1. Spring-Return Pneumatic Actuator: Fail-Safe by Design

Comment ça marche

A spring-return actuator uses compressed air to compress one or more springs, moving the valve to the “powered” position. When air pressure is lost, the stored spring energy returns the actuator to the predetermined fail-safe position (either open or closed). This design is inherently safe for emergency shutdown (ESD) and critical isolation. Per ISO 5211 and NAMUR VDI/VDE 3845 , these actuators are available in rack-and-pinion or scotch yoke configurations, with torque outputs from 50 Nm to 25,000 Nm.

When I Recommend It

• Emergency shutdown (ESD) systems – must close or open on air failure.
• Fuel gas and burner shut-off – safety integrity level (SIL) rated applications.
• Remote pipelines and wellhead isolation – where instrument air may be interrupted.
• Fire-safe valve automation – spring return ensures position regardless of power loss.

Where It Falls Short

Spring-return actuators have larger physical envelopes and higher cost than double-acting due to spring packs. They also have lower cycle life (spring fatigue) if cycled frequently. For high cycle count (e.g., 50,000+ cycles/year), a double-acting pneumatic or electric actuator is preferable.

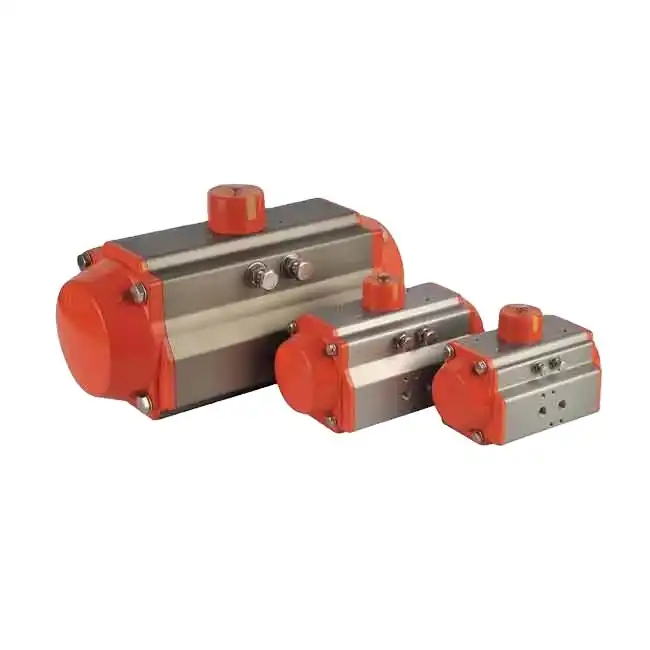

2. Double-Acting Pneumatic Actuator: High Speed, High Cycle

Comment ça marche

A double-acting actuator uses compressed air on both sides of the piston. One side opens the valve, the other closes it. Without springs, it offers lower cost, lighter weight, and higher cycle life. It requires a continuous air supply to maintain position; loss of air leaves the valve in its last position (no fail-safe). Standardized mounting per ISO 5211 and VDI/VDE 3845 ensures interchangeability with quarter-turn valves (ball, butterfly, plug).

When You Want This One

• High cycle frequency applications – automatic packaging, batching, conveyor diverters.
• Large diameter butterfly valves – lower torque requirement and fast stroking.
• Water and wastewater treatment – where air supply is reliable and fail-safe not required.
• Modulating service with positioner – precise control without spring hysteresis.

The Big Trade-Off

No fail-safe. If air supply fails, the valve stays put – unacceptable for ESD or safety systems. Also requires clean, dry instrument air (typically ISO 8573-1 Class 2.4.2). In freezing climates, air line drying is mandatory.

Critical: Double-acting actuators are NOT suitable for safety instrumented functions (SIF) per IEC 61508/61511 unless supplemented with a separate safety system (e.g., air tank and trip valve). Always evaluate the required safety integrity level (SIL).

3. Electric Actuator: Precision Modulation Without Pneumatics

Comment ça marche

Electric actuators use an electric motor (AC or DC) driving a gear train to produce torque. They can be part-turn (for ball/butterfly valves) or multi-turn (for gate/globe valves). They offer precise positioning (<0.5% accuracy), data logging, and network connectivity (Modbus, Profibus, HART). Fail-safe can be achieved with battery backup or supercapacitors. Standards: IEC 60534-2-1 , EN 15714-2 , and API 6DX for subsea applications.

When You Absolutely Need This Valve

• No instrument air available – remote sites, small skids, offshore platforms with limited utilities.
• Precise modulating control – temperature or pressure loops requiring tight regulation.
• Smart valve diagnostics – real-time torque profiles, cycle counting, predictive maintenance.
• Multi-turn valves (gate, globe) – where linear motion is required.

One Limitation

Electric actuators are slower than pneumatic (typically 2-10 sec per stroke vs. 0.5-2 sec). They are also more expensive upfront and require electrical power in hazardous areas (ATEX/IECEx certification needed). For very high torque (above 10,000 Nm), pneumatic scotch yoke is often more economical.

Quick Comparison Table: Valve Actuator Types

Fonctionnalité	Spring-Return Pneumatic	Double-Acting Pneumatic	Actionneur électrique
Fail-Safe	Yes (spring return on air loss)	No (holds last position)	Optional (battery/capacitor backup)
Torque Range	50 – 25,000 Nm	50 – 40,000 Nm	10 – 20,000 Nm
Stroking Speed	Fast (0.5-2 sec)	Very fast (0.3-1 sec)	Slow (2-10 sec)
Type de contrôle	On/off (with positioner can modulate)	On/off or modulating	Precise modulating (0.5% accuracy)
Utility Required	Instrument air (clean, dry)	Instrument air	Single-phase or 3-phase power
Meilleures applications	ESD, blowdown, wellhead, fuel gas	High cycle, water treatment, HVAC, general on/off	Remote sites, precision modulation, smart diagnostics

Making the Right Choice – A Practical Decision Framework

Need fail-safe action on air loss for emergency shutdown? → Spring-return pneumatic actuator .

Have reliable instrument air, high cycle rates, no fail-safe required ? → Double-acting pneumatic actuator .

Lack instrument air, require precise modulation and diagnostics ? → Electric actuator with battery backup for fail-safe.

Need ultra-high torque (>20,000 Nm) for large valves ? → Scotch yoke pneumatic actuator (double-acting or spring-return).

Always verify torque requirements at minimum supply pressure (e.g., 80 psi for pneumatic, ±10% voltage for electric). For modulating service, ensure the actuator has enough start/stops per hour. I’ve seen plants oversize actuators and suffer from slow response, or undersize them and experience stalling. Match the actuator to the valve’s break torque, especially for ball valves with high seat friction.

Pro tip: For critical applications, always request a torque curve from the valve manufacturer and compare with the actuator’s torque output across the full stroke. Factor in temperature effects (rubber seats stiffen at low temperature). For electric actuators, confirm the control signal (4-20 mA, 0-10 V, or digital) and fieldbus compatibility before ordering.
