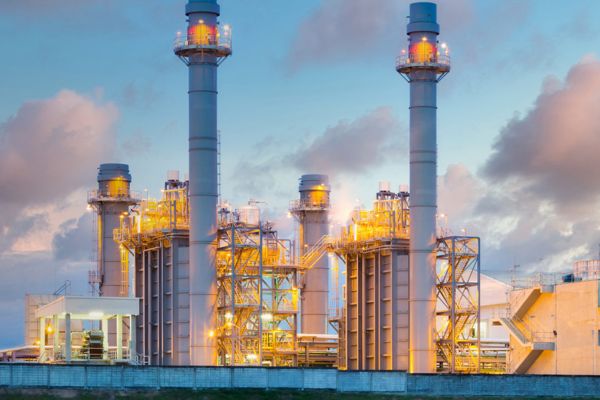

Our Stainless Ball valves excel across demanding industrial sectors, providing reliable performance in the most challenging environments.

Stainless Steel Ball Valves: Complete Technical Guide

Understanding What They Are, How They Work, Features, Structure & Implementation

Stainless steel ball valves represent one of the most reliable and versatile flow control solutions in modern industrial applications. From chemical processing plants to pharmaceutical facilities, these precision-engineered components provide exceptional corrosion resistance, operational reliability, and cost-effective performance. This comprehensive guide explores every aspect of stainless ball valves—from fundamental principles to advanced implementation strategies.

Key Insight: Industrial facilities using stainless ball valves report 98.7% operational reliability and 60-75% reduction in maintenance costs compared to carbon steel alternatives.

What is a Stainless Steel Ball Valve?

A stainless steel ball valve is a quarter-turn flow control device that uses a spherical ball with a cylindrical bore to regulate fluid flow. The ball rotates 90 degrees to either align the bore with the pipeline (open position) or perpendicular to it (closed position), providing reliable shutoff and flow control.

• جسم الصمام: Stainless steel housing containing all internal components
• الكرة: Precision-machined sphere with flow passage (bore)
• الجذع: Connects actuator to ball for rotation
• المقاعد: Sealing surfaces between ball and body
• التعبئة: Prevents leakage along stem
• المشغّل: Manual lever, gear operator, or automated device

BCST stainless ball valves are manufactured from premium stainless steel grades including CF8 (304), CF8M (316), and specialized alloys, each selected for specific application requirements.

How Stainless Ball Valves Work: Operating Principles

Quarter-Turn Operation Mechanism

The fundamental operating principle involves a simple 90-degree rotation that provides either full flow or complete shutoff:

Position	Ball Orientation	حالة التدفق	التطبيقات
Open (0°)	Bore aligned with pipeline	Full flow	Normal operation
Closed (90°)	Bore perpendicular to pipeline	Zero flow	Isolation, shutoff
Intermediate	Partial rotation	Throttled flow	Flow control (limited)

Sealing Technology

BCST stainless ball valves employ multiple sealing mechanisms to ensure leak-tight performance:

• تصميم المقعد: PTFE, RTFE, or metal seats provide primary sealing
• Ball Surface: Precision-ground to 4-16 μin finish for optimal sealing
• Seat Loading: Spring-energized or pressure-assisted sealing
• Blowout-Proof Stem: Internal retention prevents stem ejection

Torque Requirements

Operating torque varies based on several factors:

• Valve Size: Larger valves require higher torque
• تصنيف الضغط: Higher pressure = higher sealing force
• Seat Material: PTFE seats reduce torque vs. metal seats
• Media Properties: Viscous fluids increase torque requirements

Key Features of Stainless Ball Valves

ميزة	Benefit	Technical Specification
مقاومة التآكل	Long service life in harsh environments	18% chromium forms passive oxide layer
Full Port Design	الحد الأدنى من انخفاض الضغط	Bore diameter equals pipe ID
Quarter-Turn Operation	Quick actuation	90° rotation for full open/close
Bubble-Tight Shutoff	عدم وجود تسرب	API 598 Class VI sealing
نطاق درجة الحرارة	Extreme service capability	-253°C to +400°C

BCST stainless ball valves incorporate premium features:

• Anti-Static Device: Prevents static charge buildup in hazardous applications
• Live-Loaded Packing: Maintains constant sealing force throughout service life
• ISO 5211 Mounting: Standardized actuator interface for easy automation
• Blowout-Proof Stem: Internal retention ensures safety

Valve Structure and Components

Body Construction

BCST stainless ball valve bodies are available in several configurations:

نوع الجسم	الإنشاءات	المزايا	التطبيقات
قطعة واحدة	Cast as single unit	Minimal leakage paths	Permanent installations
قطعتان	Body + end cap	سهولة الصيانة	General service
ثلاث قطع	Body + 2 end caps	In-line serviceable	High-maintenance applications

Stem Design Variations

The stem connects the actuator to the ball and must withstand significant forces while maintaining sealing integrity:

• Rising Stem: Moves linearly as valve opens/closes
• Non-Rising Stem: Rotates only, no linear movement
• Blowout-Proof Design: Internal retention prevents ejection
• Anti-Static Connection: Ensures electrical continuity

Multiple packing options available:

• PTFE V-Rings: Standard chemical resistance
• Graphite: High-temperature applications
• Live-Loaded: Automatic adjustment for wear
• Bellows Seal: Zero-emission applications

Implementation Strategy: From Selection to Operation

Step 1: Application Analysis

Successful implementation begins with comprehensive application assessment:

المعلمة	Data Required	Impact on Selection
نوع السائل	Chemical composition, pH, viscosity	Material grade selection
Pressure/Temperature	Operating range, cycling conditions	Pressure class, seat material
Flow Requirements	Flow rate, velocity, pressure drop	Valve size, port type
طريقة التشغيل	Manual, pneumatic, electric	Mounting interface, accessories

Step 2: Installation Best Practices

Proper installation ensures optimal performance and longevity:

1. Pre-Installation Inspection: Verify specifications, check for damage, confirm certifications
2. Piping Preparation: Ensure proper alignment, adequate support, clean conditions
3. Orientation: Install with actuator vertical when possible
4. Flange Alignment: Prevent piping stress on valve body
5. التكليف: Perform full-stroke testing and seat leakage verification

• Excessive piping stress on valve body
• Inadequate support causing vibration
• Improper flange alignment
• Failure to account for thermal expansion
• Incorrect actuator orientation

Maintenance and Troubleshooting

Preventive Maintenance Schedule

Regular maintenance ensures reliable operation and extends service life:

Interval	Maintenance Activity	الغرض	Acceptance Criteria
Monthly	الفحص البصري	Check for leaks, corrosion	No visible damage
Quarterly	Operational test	Verify smooth operation	Full stroke, no binding
Annually	Seat leakage test	Verify sealing integrity	API 598 Class VI
5 Years	Complete overhaul	Replace wear components	Like-new performance

المشكلات الشائعة والحلول

• Stem Leakage: Check packing tightness, replace if worn
• High Operating Torque: Inspect for corrosion, lubricate stem
• Seat Leakage: Verify proper seat loading, replace damaged seats
• التآكل: Check material compatibility, improve drainage

Performance Optimization

Maximizing stainless ball valve performance requires understanding key operational parameters:

عامل الأداء	Optimization Strategy	Expected Improvement
دورة الحياة	Proper lubrication, reduced cycling speed	25-40% extension
Sealing Performance	Correct seat material, proper torque	Zero leakage maintained
وقت الاستجابة	Appropriate actuator sizing	30-50% faster operation
كفاءة الطاقة	Low-friction seats, proper sizing	20-30% torque reduction

BCST Stainless ball valves feature size ranges from 1/4″ to 12″ (DN6-DN300), pressure classes from vacuum to 1,380 bar (20,000 psi), and temperature ranges from -253°C to 400°C. All models meet relevant API, ISO, and IEC standards with leakage rates from API 598 Class II to Class VI depending on application requirements. Our valves are available across four core types with over 35 patent-protected designs, each optimized for specific industrial challenges. BCST gas ball valves achieve 120,000+ operational cycles while maintaining zero leakage in critical applications, significantly exceeding industry standards for reliability and performance.

المواصفات الأساسية

Size Range & Connections

نطاق الحجم	1/4" to 64" (DN8 to DN1600)
أنواع الاتصال	NPT, BSP, Socket Weld, Butt Weld, Flanged RF/RTJ
Flange Standards	ANSI B16.5, DIN EN 1092, JIS B2220, BS 10
Face-to-Face Dimensions	ASME B16.10, DIN 3202, ISO 5752

Pressure & Temperature Ratings

Pressure Class	Working Pressure	اختبار الضغط	نطاق درجة الحرارة
150LB	285 PSI @ 100°F	425 PSI	-29°C to +425°C
300LB	740 PSI @ 100°F	1100 PSI	-29°C to +425°C
600LB	1480 PSI @ 100°F	2225 PSI	-29°C to +425°C
1500LB	3705 PSI @ 100°F	5560 PSI	-29°C to +595°C
2500LB	6170 PSI @ 100°F	9270 PSI	-29°C to +595°C

خصائص التدفق

Full Port Design	Cv values 30% higher than standard port for maximum flow capacity
Flow Coefficient Range	Cv 0.8 to 25,000+ (size dependent) for precise flow control
Pressure Recovery	FL ≥ 0.9 (excellent recovery) for minimal pressure loss
Zero Leakage	Bubble-tight sealing per API 598 / ANSI Class VI standards

التركيب المادي

Stainless Steel Grades & Applications

Grade	Equivalent	Composition	أفضل التطبيقات
سي اف 8	304 SS	18% Cr, 8% Ni	General service, food processing, clean water
سي اف 8 ام	316 SS	18% Cr, 8% Ni, 2% Mo	Chemical processing, marine environments
CF3M	316L SS	18% Cr, 8% Ni, 2% Mo, Low C	Pharmaceutical, cryogenic, welding applications
CN7M	Alloy 20	20% Cr, 29% Ni, 2% Mo, 3% Cu	Sulfuric acid, aggressive chemicals
CK3MCuN	254 SMO	20% Cr, 18% Ni, 6% Mo	Seawater, high chloride environments

Seat Materials

PTFE Seats	-50°F to +400°F, excellent chemical resistance
RTFE Seats	-50°F to +450°F, reinforced for higher pressures
PEEK Seats	-70°F to +550°F, superior mechanical strength
Metal-to-Metal	Up to +1200°F, fire-safe applications
TFM 1600	-50°F to +500°F, FDA approved for food service

Stem & Internal Components

• Blowout-proof stem design per ASME B16.34
• Live-loaded stem packing for emission control
• Anti-static device for hazardous applications
• Fire-safe design per API 607 / ISO 10497
