Emergency Vent Manufacturer
Emergency Vents for Storage Tank Pressure Protection
BCST Valve is an emergency vent manufacturer supporting atmospheric and low-pressure storage tank applications. Emergency vents provide additional pressure-relief capacity during abnormal conditions that exceed normal tank-breathing requirements.
Our engineering team reviews tank design pressure, emergency venting demand, stored medium, temperature, connection, materials, installation, and project requirements before recommending a product.
Emergency Capacity
Provides additional relief during abnormal pressure conditions
Tank Protection
Helps keep pressure within the tank design limit
Rapid Opening
Opens when pressure reaches the selected emergency setting
Factory Engineering
Supports custom sizes, materials, settings, and connections
Product Collection
Emergency Vent Configurations
Different tanks and projects require different opening mechanisms, access arrangements, discharge configurations, materials, and pressure settings.

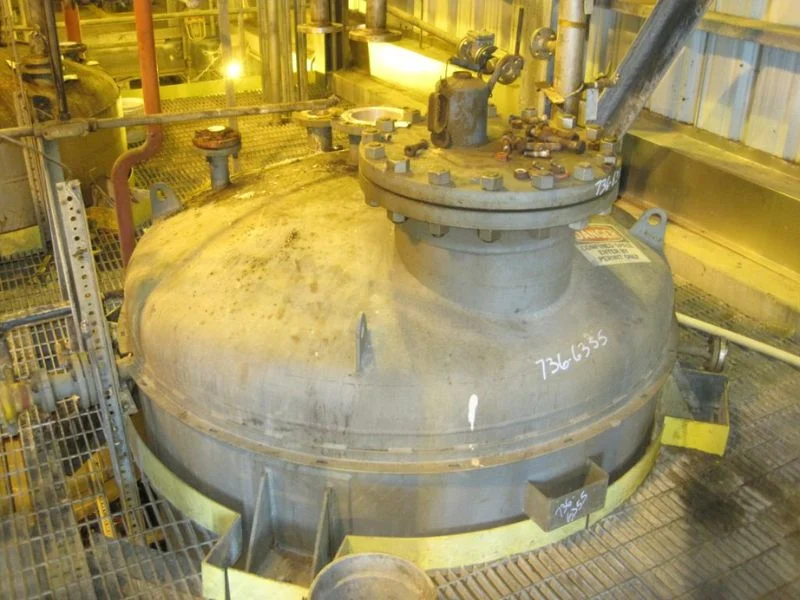

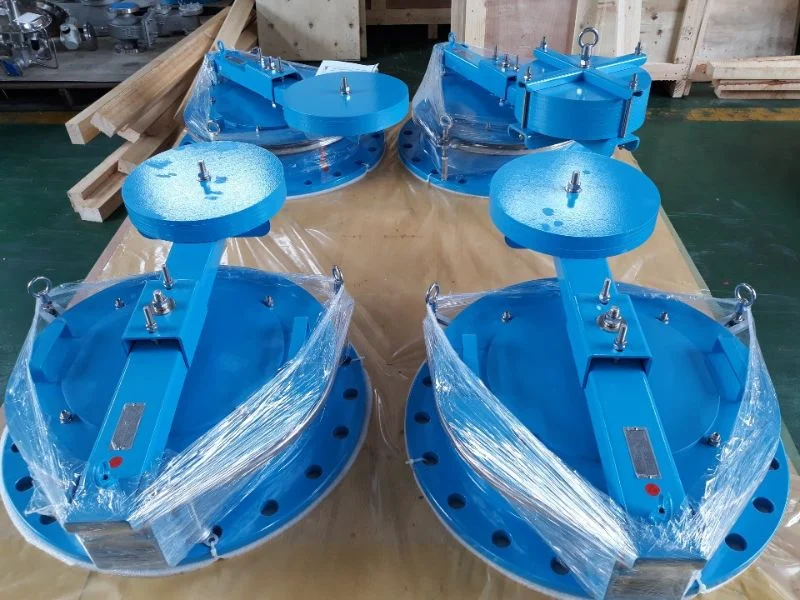

Weighted Emergency Vent
Uses a weighted cover or pallet to establish the emergency opening pressure for suitable low-pressure tanks.
- Simple mechanical construction
- Gravity-loaded opening mechanism
- Tank-top installation

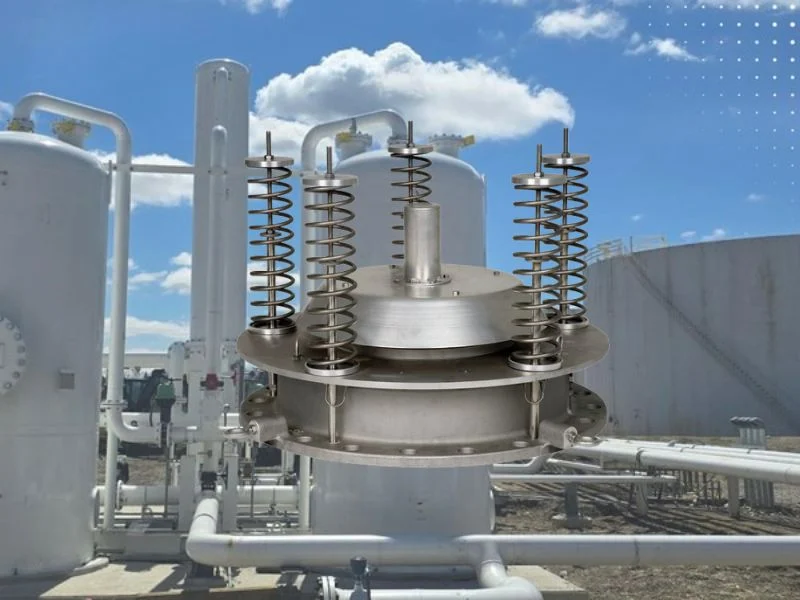

Spring-Loaded Emergency Vent
Uses spring force to support selected pressure settings or installation conditions beyond suitable weighted designs.
- Spring-assisted opening
- Application-specific set pressure
- Multiple size options
Emergency Relief Manhole
Combines emergency pressure relief with a larger opening that can provide tank access when designed for that purpose.
- Large relief opening
- Tank inspection access
- Hinged cover arrangement
Hatch-Type Emergency Vent
A compact tank-top relief hatch for applications requiring emergency pressure relief and convenient internal access.
- Hinged hatch construction
- Quick access arrangement
- Weather-protected design

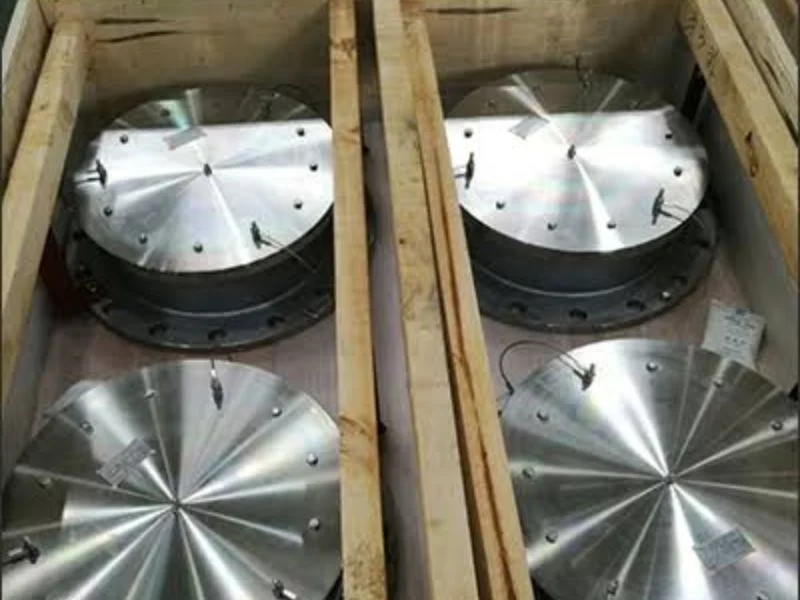

Flanged Emergency Vent
A dedicated emergency vent for installation on a specified storage tank roof nozzle or flange connection.
- Multiple flange standards
- Different connection sizes
- Custom mounting options

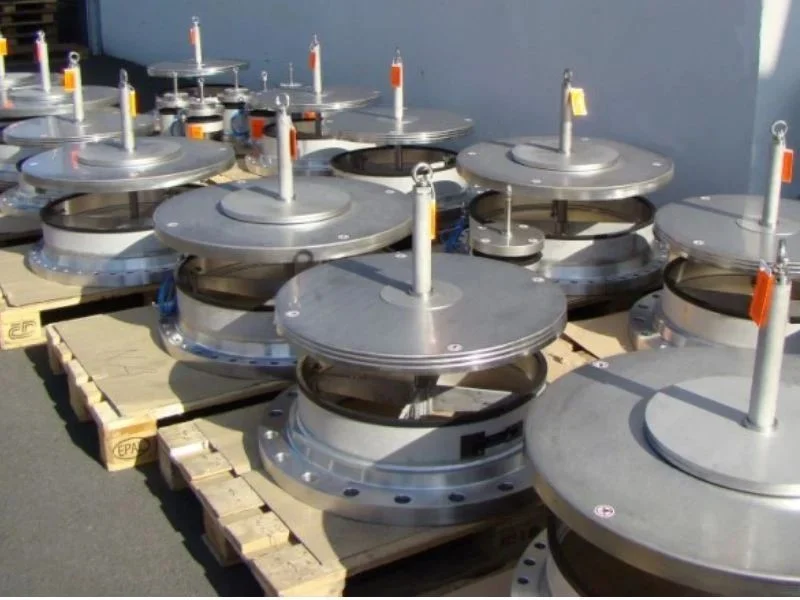

Custom Emergency Vent
Engineered for special tank connections, pressure settings, materials, capacities, or project documentation requirements.
- Custom opening pressure
- Special materials and coatings
- Project-specific documentation
Product Comparison
Compare Emergency Vent Types
Use this table for initial comparison. Final selection should be based on complete tank, process, and emergency venting data.
| Vent Type | Opening Method | Typical Application | Key Selection Point |
|---|---|---|---|
| Weighted Emergency Vent | Gravity-loaded cover or pallet | Atmospheric and low-pressure tanks | Set pressure, orientation, cover weight, and capacity |
| Spring-Loaded Emergency Vent | Spring-assisted opening | Selected pressure settings or orientations | Spring range, set pressure, stability, and material |
| Emergency Relief Manhole | Large hinged relief cover | Tanks requiring emergency relief and access | Opening area, access size, setting, and installation |
| Hatch-Type Emergency Vent | Hinged pressure-relief hatch | Compact tank-top relief applications | Access, sealing, weather protection, and capacity |
| Flanged Emergency Vent | Weighted or spring-loaded mechanism | Dedicated tank roof nozzle | Flange standard, nozzle size, setting, and capacity |
| Custom Emergency Vent | Application-specific mechanism | Non-standard tanks and project requirements | Tank data, materials, connection, testing, and documents |
مبدأ العمل

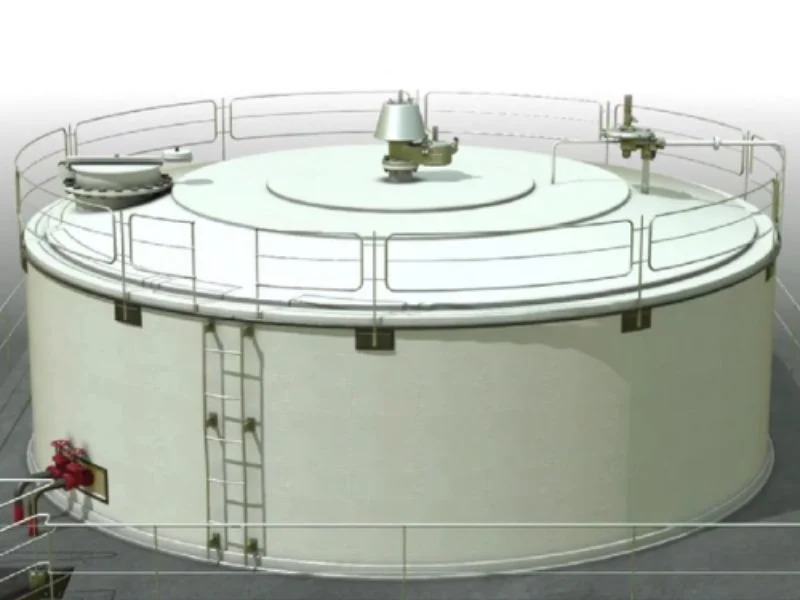

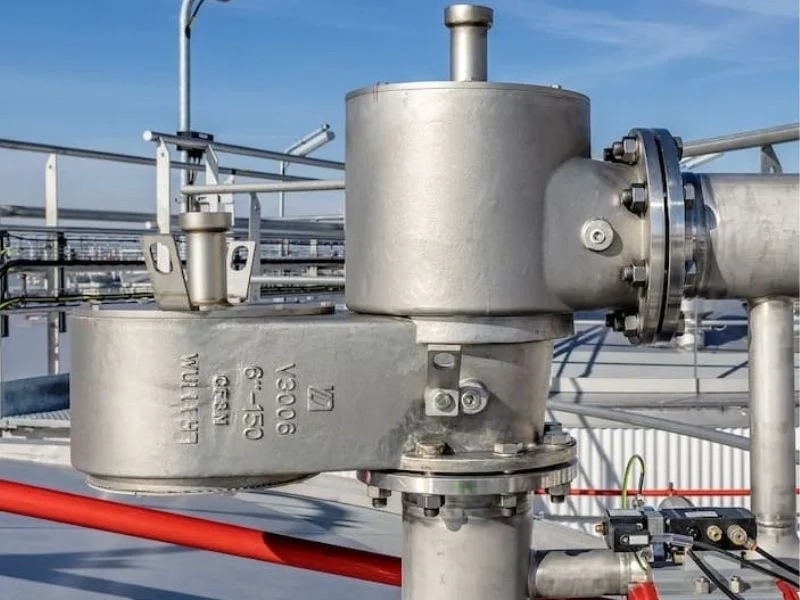

How Does a Tank Emergency Vent Work?
An emergency vent normally remains closed during routine tank operation. It opens when internal pressure reaches its selected emergency setting and provides a larger relief path.
- An abnormal event causes tank pressure to rise.
- Normal tank-breathing equipment continues to provide its available relief capacity.
- Pressure reaches the emergency vent opening setting.
- The weighted or spring-loaded cover lifts.
- Vapor or gas exits through the larger emergency opening.
- The cover returns toward the closed position as tank pressure decreases.
The actual opening and relieving performance depends on the vent design, setting, required capacity, medium, temperature, pressure loss, and installation.

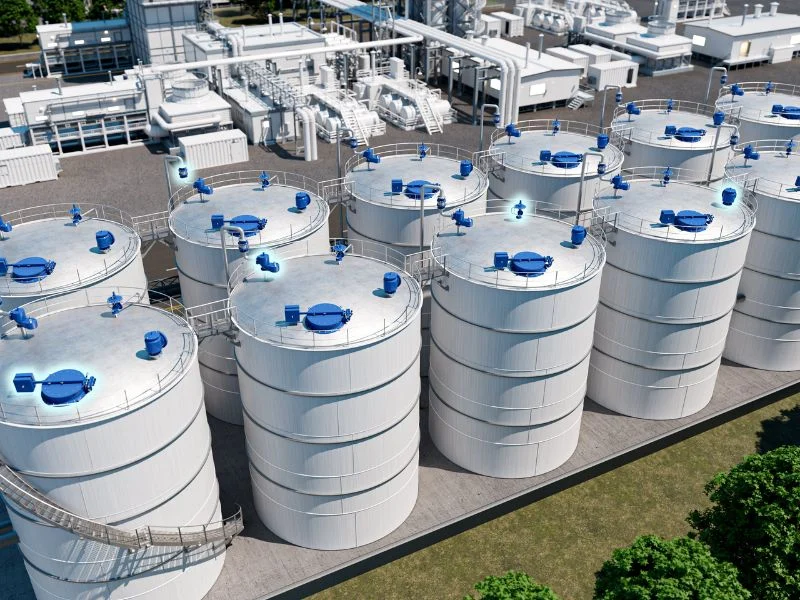

Normal vs. Emergency Venting
Does an Emergency Vent Replace a Breather Valve?
An emergency vent and a pressure vacuum relief valve normally perform different functions. Emergency venting should be evaluated together with normal tank breathing rather than treated as a direct replacement.
- Breather valves handle normal filling and emptying
- Breather valves respond to routine thermal breathing
- Emergency vents provide additional pressure-relief capacity
- Emergency vents use a higher opening setting where appropriate
- Vacuum protection may require separate equipment
- Combined capacity should be checked against the tank requirement
- Every product setting must remain within tank design limits
Application Data
Information Required for Emergency Vent Selection
Accurate tank and process data is required to evaluate opening pressure, emergency capacity, size, materials, and installation.
Tank and Process Conditions
- Tank type and dimensions
- Stored medium and vapor characteristics
- Tank design pressure
- Normal operating pressure
- Operating and design temperature
- Tank insulation condition
- Environmental and installation conditions
Emergency Vent Requirements
- Required emergency-relief capacity
- Emergency vent opening pressure
- Available tank nozzle size
- Connection and flange standard
- Body, cover, seat, and seal materials
- Required access-opening size
- Applicable project requirements
| Selection Factor | Why It Matters |
|---|---|
| Tank Design Pressure | The emergency vent setting must protect the tank without exceeding its allowable pressure limit. |
| Emergency Scenario | The selected sizing basis determines the required emergency-relief capacity. |
| Wetted Surface Area | Tank geometry and exposed surface may affect the emergency venting calculation. |
| Stored Medium | Vapor properties affect material selection, relieving behavior, and safety evaluation. |
| Connection Size | The available nozzle and flow path can limit the achievable emergency capacity. |
| Discharge Arrangement | The outlet location must consider personnel, equipment, ignition sources, and pressure loss. |

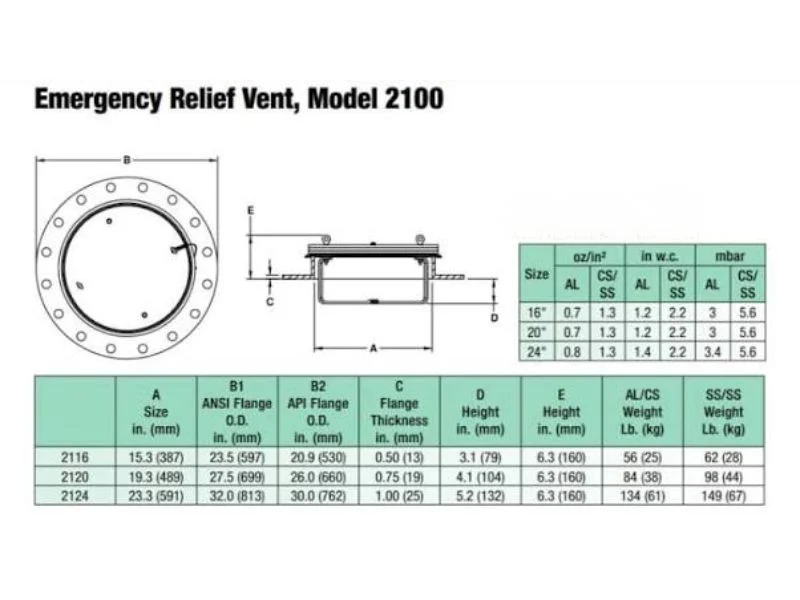

Sizing and Capacity
Emergency Vent Size Should Follow the Required Capacity
The existing tank nozzle size alone does not confirm that an emergency vent can provide sufficient relief. The required emergency capacity and complete flow path should be evaluated.
- Tank dimensions and exposed surface area
- Emergency scenario and sizing basis
- Tank design pressure
- Selected emergency opening pressure
- Stored-medium vapor characteristics
- Required relieving capacity
- Vent inlet and outlet pressure losses
- Available tank nozzle size
- Installation and discharge conditions
- Applicable project standards and specifications
Manufacturer Selection
What Should You Ask an Emergency Vent Manufacturer?
Can the Factory Review Capacity?
The manufacturer should request the emergency sizing basis, tank information, set pressure, and required relieving capacity.
Can the Setting Be Verified?
The proposed inspection scope should define whether opening-pressure testing is applicable and how it will be recorded.
Are the Materials Traceable?
Body, cover, seat, seal, fastener, and internal materials should match the approved specification.
Will It Fit the Tank?
The drawing should confirm connection size, flange standard, dimensions, orientation, opening space, and access.
Is Maintenance Practical?
The cover, hinge, seat, seal, and internal components should remain accessible for inspection and maintenance.
Are Documents Included?
The quotation should clearly define drawings, certificates, inspection records, test reports, and manuals.
المواد
Material Options for Emergency Vent Service
Material selection should consider the stored medium, vapor, temperature, corrosion, external environment, and project requirements.
| Material Option | Typical Consideration | Common Application |
|---|---|---|
| الفولاذ الكربوني | General industrial service where compatibility is confirmed | Fuel, oil, and general process storage |
| الفولاذ المقاوم للصدأ | Improved corrosion resistance and process cleanliness | Chemical, solvent, and corrosive vapor service |
| ألومنيوم | Lightweight construction for compatible conditions | Selected atmospheric storage applications |
| Duplex Stainless Steel | Higher strength and resistance in selected chloride environments | Marine, terminal, and demanding chemical service |
| Special Alloy | Application-specific resistance to aggressive media | Severe chemical and specialty process storage |
| Protective Coating | Additional external or internal surface protection | Corrosive plant and coastal environments |
التطبيقات
Emergency Vent Applications

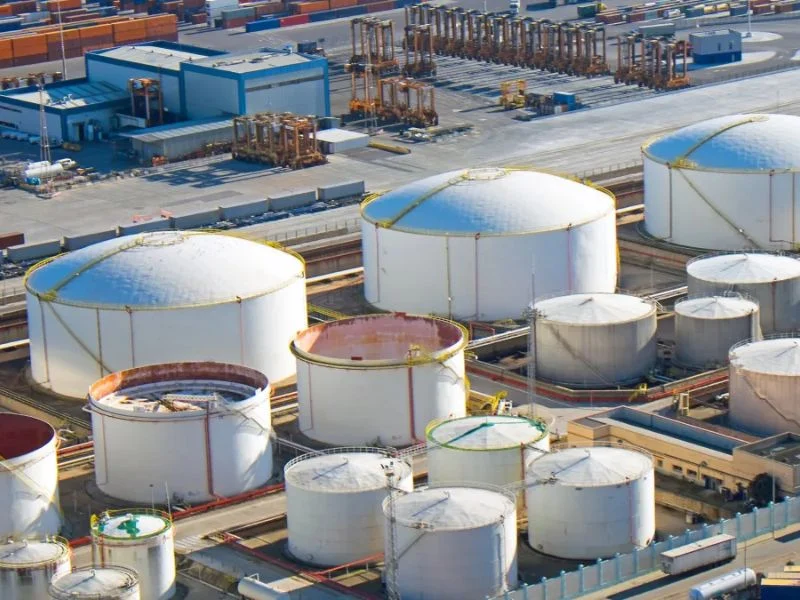

Oil and Fuel Storage
Emergency pressure relief for crude oil, diesel, fuel, and hydrocarbon storage tanks.
Tank Farms and Terminals
Additional venting capacity for storage terminals, loading facilities, and transfer operations.
مصافي التكرير
Tank protection for crude, intermediate-product, and finished-product storage.

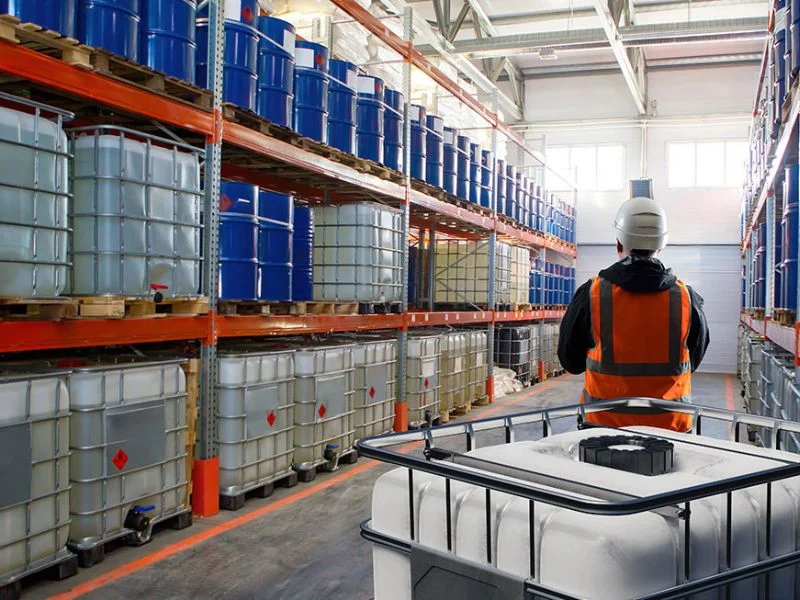

![Emergency vent on a chemical storage tank](/wp-content/uploads/2026/09/Chemical-Storage-tank.webp")
Chemical Storage
Material-compatible emergency relief for chemicals, solvents, and process media.
مصانع البتروكيماويات
Emergency tank venting for feedstock, process storage, and finished products.
معالجة المياه
Tank protection for chemical dosing, treatment, wastewater, and utility storage applications.
Factory Quality Control
How Is an Emergency Vent Inspected?
Inspection and testing requirements are confirmed according to the product, application, project specification, and agreed supply scope.
- Material and certificate review
- Visual and dimensional inspection
- Flange and connection verification
- Cover, hinge, pallet, and spring inspection
- Opening-pressure test where applicable
- Movement and reseating checks
- Product marking and nameplate review
- Final documentation and packing inspection
Engineering Workflow
From Tank Data to Factory Delivery
Review the Tank
We review the tank, medium, design pressure, temperature, emergency scenario, and installation.
Select the Vent
We evaluate vent type, opening pressure, required capacity, size, material, and connection.
Confirm the Scope
Datasheets, drawings, inspection, testing, documentation, quantity, and delivery are confirmed.
Manufacture and Deliver
Production, inspection, packing, shipment, installation guidance, and support are coordinated.
Custom Manufacturing
Custom Emergency Vents from the Factory
When a standard product does not match the tank, connection, pressure setting, capacity, material, or access requirement, BCST Valve can evaluate a custom solution.
- Special emergency opening pressures
- Custom relief capacities
- Special connection sizes and flange standards
- Carbon steel, stainless steel, and special alloys
- Special seats, seals, fasteners, and coatings
- Custom access-opening dimensions
- Replacement compatibility review
- Project-specific inspection and testing
- Custom documentation packages
Request a Selection
Send Your Tank Data to the Manufacturer
Provide your tank dimensions, stored medium, design pressure, operating temperature, emergency sizing basis, required capacity, opening pressure, connection, material, quantity, and documentation requirements.
الأسئلة المتداولة
Emergency Vent FAQ
What is a storage tank emergency vent?
An emergency vent is a pressure-relief device that provides additional venting capacity when abnormal conditions cause tank pressure to exceed normal breathing requirements.
What conditions can require emergency venting?
Emergency venting may be evaluated for abnormal events such as external fire exposure, equipment malfunction, process upset, or another specified overpressure scenario.
Does an emergency vent replace a breather valve?
Normally no. A breather valve handles routine pressure and vacuum changes, while an emergency vent provides additional pressure-relief capacity during abnormal conditions.
How is an emergency vent sized?
Sizing considers the tank, emergency scenario, exposed surface, stored medium, design pressure, opening pressure, required capacity, connection, and installation.
How is the emergency opening pressure selected?
The setting should coordinate with normal vent settings and remain within the allowable pressure limit of the storage tank.
What is the difference between a weighted and spring-loaded emergency vent?
A weighted vent uses gravity to establish the opening setting. A spring-loaded vent uses spring force and may suit selected settings or installation arrangements.
What is an emergency relief manhole?
It is a larger tank opening that can provide emergency pressure relief and, when designed for that purpose, access for inspection or maintenance.
Can an emergency vent provide vacuum protection?
Many emergency vents provide pressure relief only. Vacuum protection normally requires a pressure vacuum relief valve or a separate vacuum-relief device.
Where should an emergency vent be installed?
It is generally installed on a suitable tank-roof opening with sufficient clearance for operation, inspection, maintenance, and safe discharge.
How often should an emergency vent be inspected?
Inspection frequency depends on the medium, environment, deposits, corrosion, operating history, plant procedures, and applicable maintenance requirements.
Can BCST manufacture a custom emergency vent?
Custom settings, capacities, sizes, materials, connections, access dimensions, coatings, testing, and documentation can be evaluated.
What information is required for a quotation?
Please provide the tank size, medium, design pressure, temperature, emergency scenario, required capacity, opening pressure, connection, material, quantity, and required documents.
