Tank Protection Solutions
Tank Protection Systems for Safer Storage and Vapor Control
BCST Valve provides engineered tank protection products for controlling pressure, vacuum, emergency venting, vapor loss, and flame propagation in industrial storage systems.
Share your tank data and operating conditions with our engineering team to select the appropriate product, size, material, connection, and set pressure.
Product Collection
Tank Protection Products
Products for normal tank breathing, emergency relief, vapor control, and flame protection.

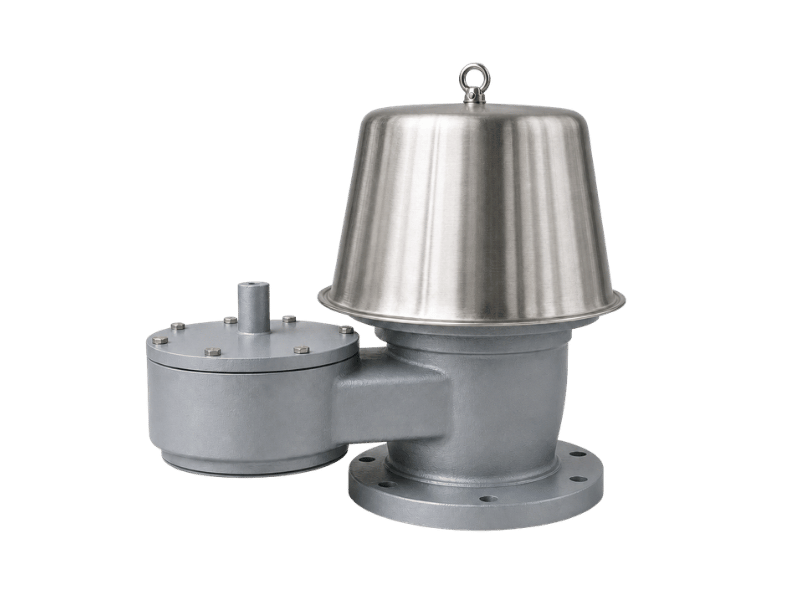

Pressure Vacuum Relief Valves
Protect atmospheric and low-pressure storage tanks from excessive internal pressure or vacuum during normal operation.
- Pressure and vacuum relief
- Weighted or spring-loaded designs
- Multiple materials and connections
صمامات التنفس
Support controlled tank breathing while helping reduce unnecessary vapor release and product loss.
- Tank pressure balancing
- Vapor conservation
- Top-mounted configurations

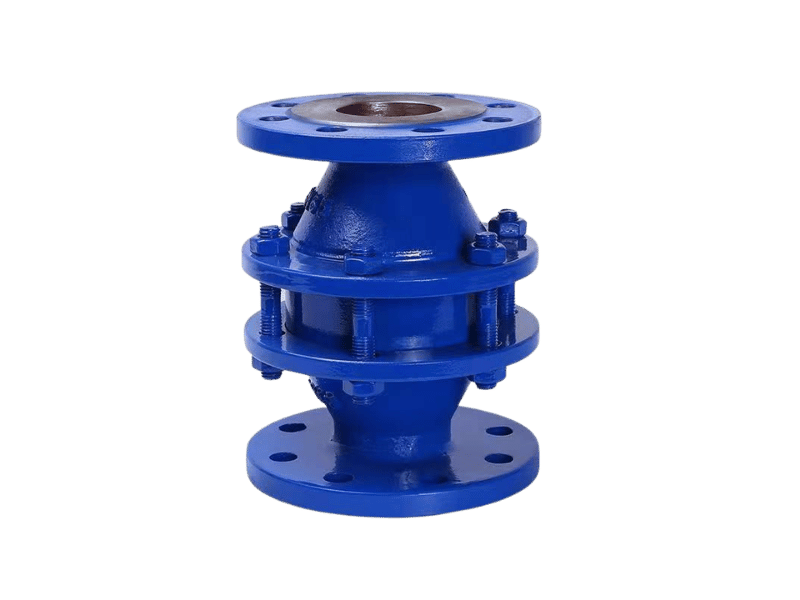

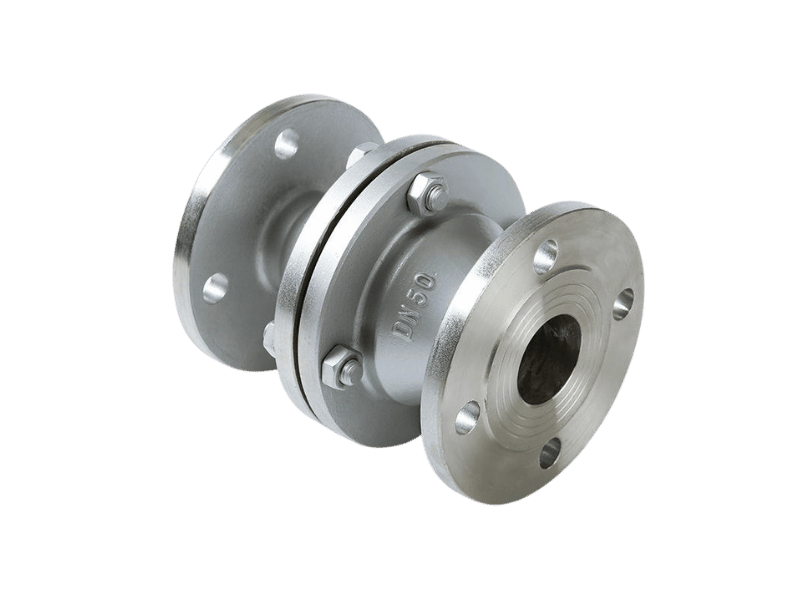

Flame Arresters
Help prevent flame propagation through tank vents or process piping when correctly selected for the application.
- End-of-line configurations
- Inline configurations
- Application-specific selection

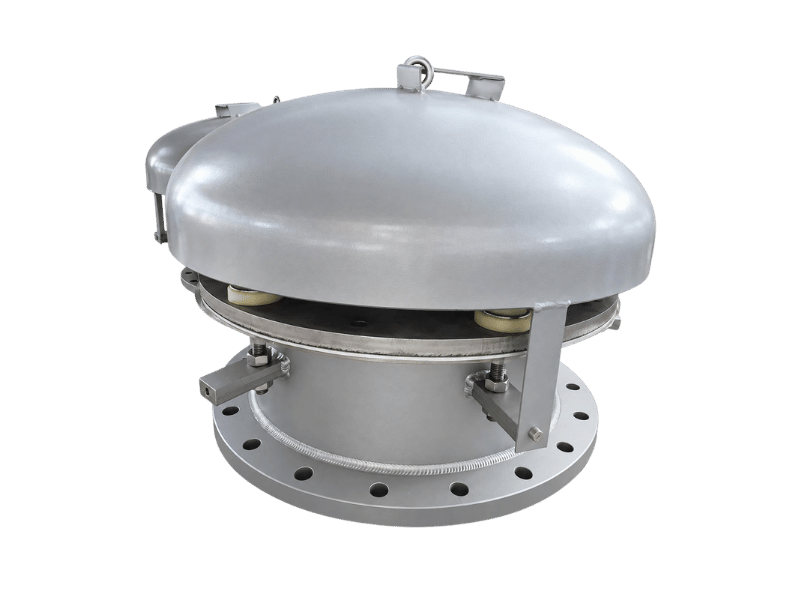

Emergency Vents
Provide additional pressure-relief capacity during abnormal conditions such as external fire exposure.
- High-capacity emergency relief
- Hinged or weighted construction
- Tank-top installation

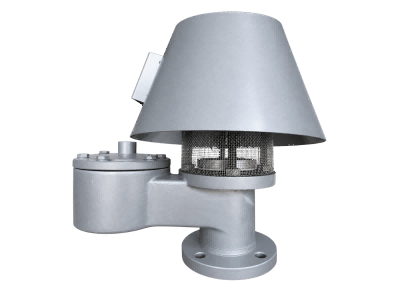

Tank Vent Valves
Provide controlled venting for storage tanks, vessels, and process equipment under defined operating conditions.
- Pressure-only venting
- Vacuum-only venting
- Combined configurations

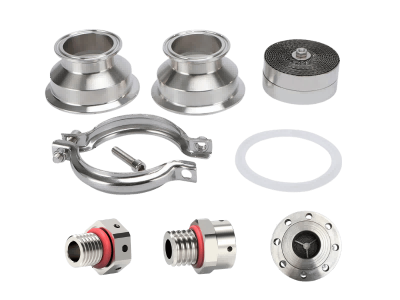

Tank Protection Packages
Combine related protection products into one coordinated supply scope for EPC and storage projects.
- Breather valve and flame arrester
- Emergency vent and accessories
- Documentation and inspection support
Selection Overview
Compare Tank Protection Products
Use this table as an initial reference. Final selection should be based on tank design and actual operating conditions.
| Product | الوظيفة الأساسية | Typical Operating Condition | Common Installation |
|---|---|---|---|
| Pressure Vacuum Relief Valve | Relieves excessive pressure and vacuum | Normal filling, emptying, and thermal breathing | Tank roof nozzle |
| Breather Valve | Controls tank breathing and vapor release | Routine storage tank operation | Atmospheric or low-pressure tank |
| Flame Arrester | Helps stop flame propagation | Potentially flammable vapor service | Vent outlet or process piping |
| Emergency Vent | Provides high-capacity emergency pressure relief | Abnormal pressure rise or external fire exposure | Tank roof or emergency vent nozzle |
| Vacuum Relief Valve | Protects the tank from excessive vacuum | Rapid withdrawal, cooling, or vapor condensation | Tank roof nozzle |
| Tank Protection Package | Coordinates normal and emergency protection | New tanks, upgrades, and EPC projects | Complete tank venting system |

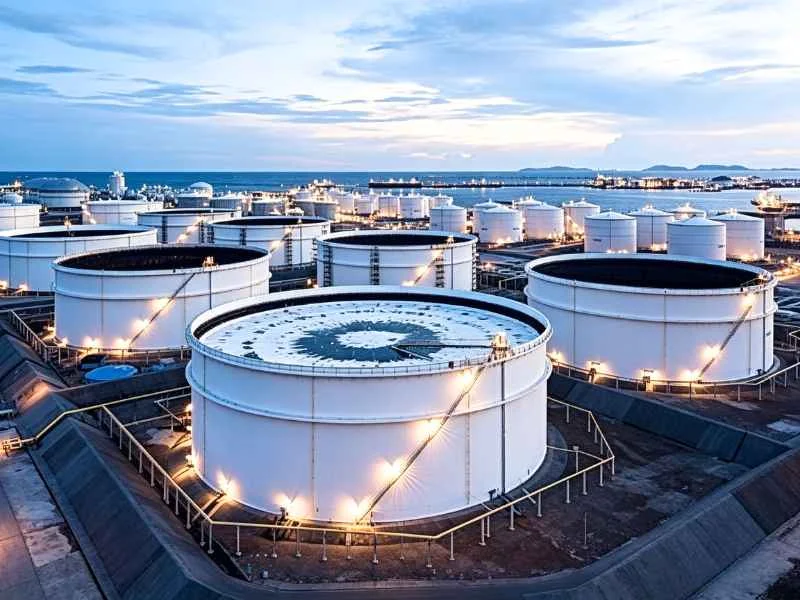

Why Tank Protection Matters

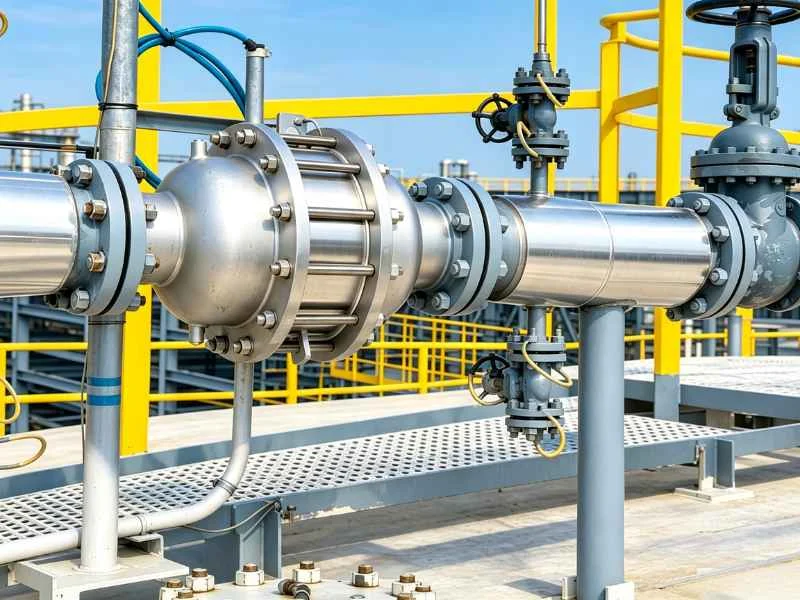

Control Pressure, Vacuum, Vapor, and Fire Risk
Storage tanks continuously respond to liquid movement, temperature changes, vapor generation, and external conditions. An unsuitable venting arrangement can expose the tank and surrounding process to avoidable risk.
- Reduce the risk of tank overpressure
- Protect against damaging vacuum conditions
- Control vapor release during normal breathing
- Provide additional emergency venting capacity
- Address flame propagation risk where applicable
- Improve equipment reliability and operating safety
Application Data
Information Required for Product Selection
Accurate tank and process data helps our team evaluate relief function, capacity, material, and configuration.
Tank and Process Conditions
- Tank type and tank dimensions
- Stored medium and vapor characteristics
- Design pressure and design vacuum
- Normal operating pressure
- Operating and design temperature
- Maximum filling and emptying rates
- Required pressure and vacuum capacity
Product and Project Requirements
- Required set pressure and set vacuum
- Nominal size and connection standard
- Body and internal materials
- Installation orientation and available space
- Applicable project specifications
- Inspection and documentation requirements
- Quantity and required delivery date
| Selection Item | Why It Matters |
|---|---|
| Set Pressure and Vacuum | Must remain within the allowable operating limits of the storage tank. |
| Required Capacity | Determines whether the product can handle filling, emptying, thermal breathing, or emergency conditions. |
| Stored Medium | Affects material compatibility, corrosion resistance, vapor behavior, and flame-risk evaluation. |
| Connection Size | Influences flow capacity, pressure drop, installation compatibility, and available nozzle arrangement. |
| Ambient Conditions | Low temperature, dust, rain, icing, and corrosive environments may affect product configuration. |

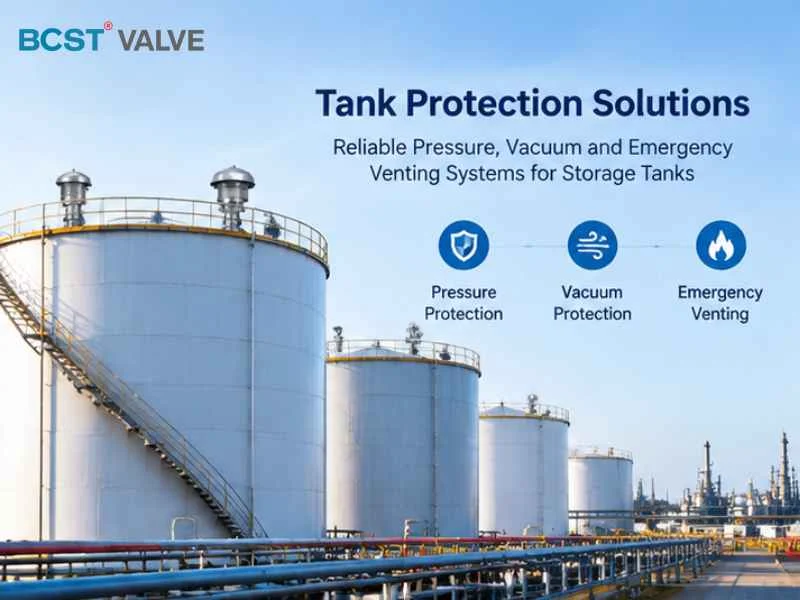

Engineering Support
From Tank Data to Project Supply
We support product selection and project execution for new tanks, replacements, upgrades, and packaged supply requirements.
Application Review
We review tank data, medium, pressure, vacuum, temperature, capacity, and installation conditions.
Product Selection
We evaluate the appropriate product type, size, set point, material, connection, and accessories.
Technical Confirmation
Datasheets, drawings, testing scope, inspection requirements, and project documents are confirmed.
Production and Delivery
Manufacturing, inspection, packing, shipment, and after-sales support are coordinated.

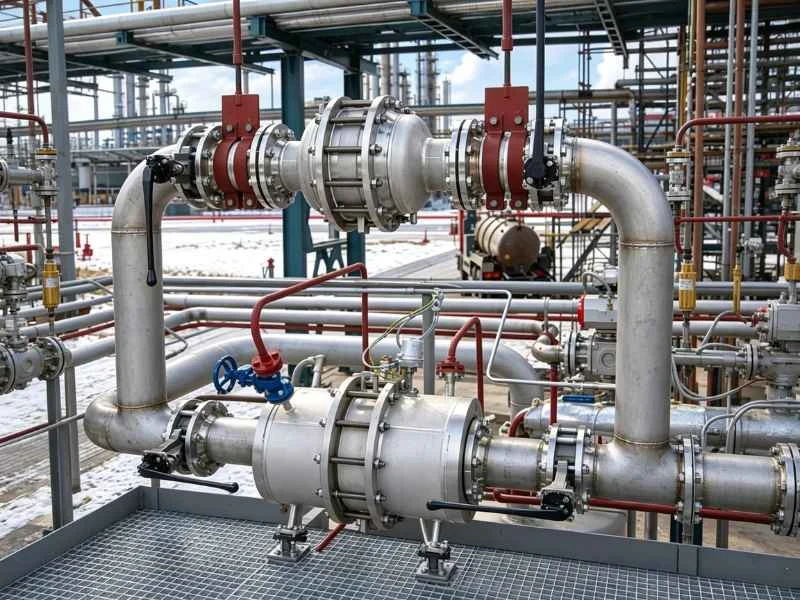

Custom Engineering
Tank Protection Products for Specific Project Conditions
Standard products do not cover every storage application. BCST Valve can evaluate project-specific requirements and coordinate suitable product configurations.
- Special pressure and vacuum settings
- Carbon steel, stainless steel, and special materials
- Special flange standards and connection sizes
- Alternative nozzle orientations
- Protective coatings and corrosion-resistant construction
- Project-specific documentation packages
- Replacement compatibility review
التطبيقات
Where Tank Protection Products Are Used
Oil and Fuel Storage
Protection for crude oil, fuel, diesel, and hydrocarbon storage tanks at terminals and tank farms.
Refineries and Petrochemical Plants
Tank venting and vapor protection for process storage, intermediate products, and finished products.
Chemical Storage
Material-compatible tank protection for corrosive chemicals, solvents, and specialty process media.

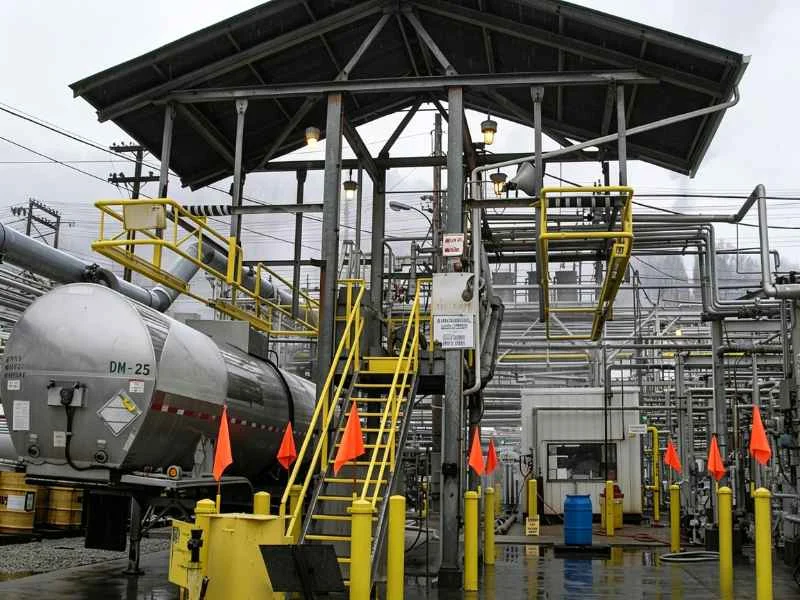

Loading Facilities
Tank protection for terminals and facilities exposed to frequent filling, emptying, and vapor movement.

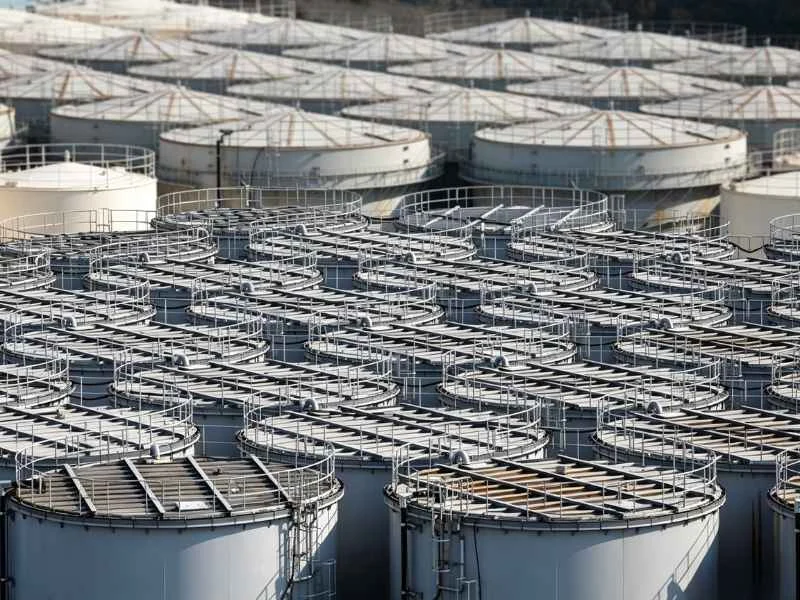

Water and Wastewater
Vent and vacuum protection for chemical dosing, treatment, and storage tank applications.

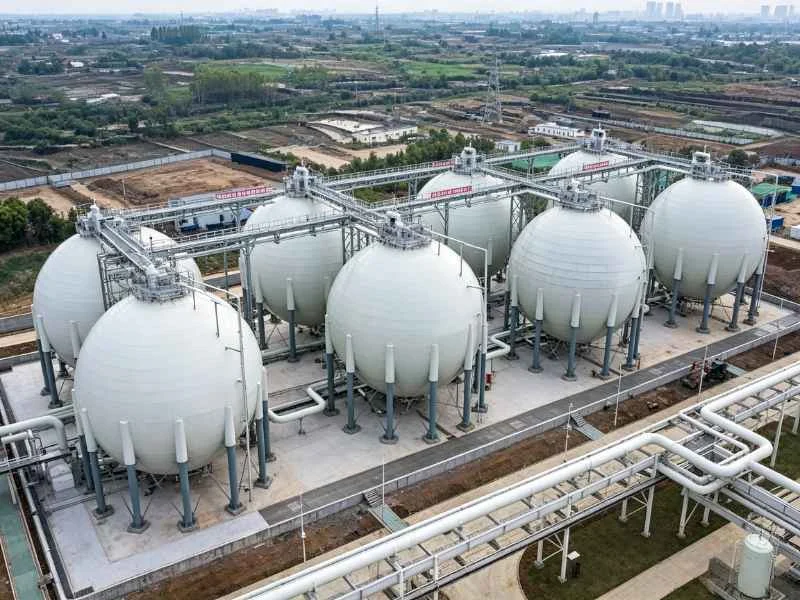

EPC Tank Projects
Coordinated equipment, technical documents, inspection, and delivery for complete project requirements.

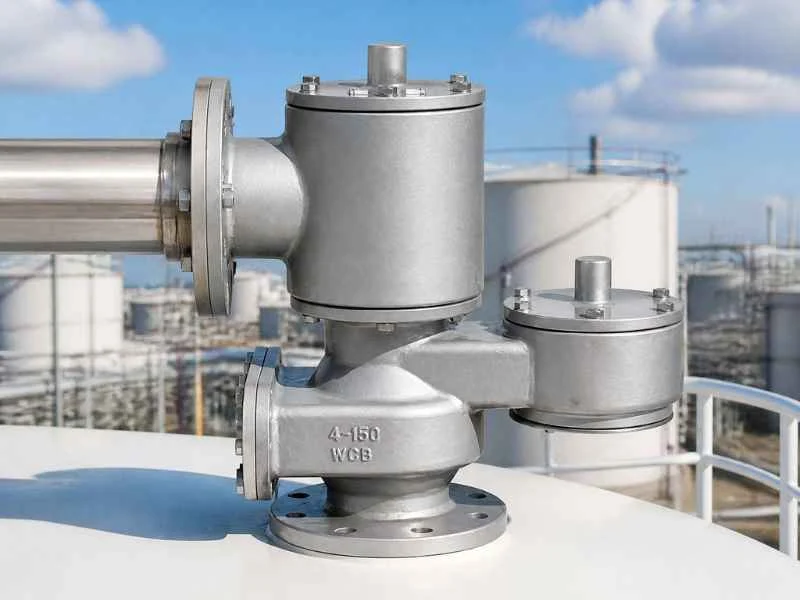

Quality and Documentation
Support for Engineering and Procurement Teams
Documentation and inspection requirements can be coordinated according to the actual product, project specification, and agreed supply scope.
- Product datasheets
- General arrangement drawings
- Material certificates
- Dimensional inspection records
- Set-pressure and set-vacuum testing where applicable
- Leakage testing where applicable
- Inspection and test plans
- Quality assurance plans
- Installation and maintenance manuals
الأسئلة المتداولة
Tank Protection FAQ
What is a tank protection system?
A tank protection system is a coordinated arrangement of products used to manage normal pressure, vacuum, emergency venting, vapor release, and applicable flame-propagation risks around a storage tank.
What is the purpose of a breather valve?
A breather valve allows a storage tank to inhale or exhale when pressure or vacuum reaches the selected setting. It helps protect the tank while limiting unnecessary vapor release during normal operation.
How is a pressure vacuum relief valve sized?
Sizing depends on factors including tank design limits, filling and emptying rates, thermal breathing, stored medium, operating temperature, connection size, and applicable project requirements.
What is the difference between a breather valve and an emergency vent?
A breather valve handles routine pressure and vacuum changes. An emergency vent is intended to provide additional pressure-relief capacity during abnormal conditions such as external fire exposure.
Can a flame arrester be installed with a breather valve?
In some applications, a flame arrester and breather valve are used together. The configuration must be evaluated for vapor characteristics, installation position, operating conditions, pressure drop, and required performance.
Does every storage tank require a flame arrester?
No. The requirement depends on the stored medium, vapor characteristics, ignition risk, vent arrangement, installation conditions, and applicable project or regulatory requirements.
How do I choose the correct set pressure and vacuum?
The selected settings must protect the tank without interfering with normal operation. They should be based on the tank design pressure, design vacuum, operating range, and required venting capacity.
What information is needed for a quotation?
Please provide the tank size, medium, design pressure, design vacuum, temperature, filling and emptying rates, required capacity, connection, material, quantity, and project documentation requirements.
Can BCST Valve supply replacement tank vents?
Yes. Please provide the existing product nameplate, dimensions, connection details, set points, operating conditions, and photographs so replacement compatibility can be reviewed.
Can tank protection products be customized?
Project-specific sizes, materials, connections, set points, coatings, orientations, and documentation can be evaluated according to the application and manufacturing feasibility.
Request a Selection
Send Us Your Tank Data
Tell us about your storage tank, medium, pressure, vacuum, temperature, venting capacity, and project requirements. Our team will review the application and recommend the next step.
