Straight-Flow Pipeline Filtration
Tee Strainer Manufacturer
BCST Valve manufactures tee strainers for removing rust, scale, welding slag and other solid particles from liquid, gas and steam pipelines. The straight-through body and perpendicular screen chamber provide efficient flow with accessible maintenance.
Also known as a T-type strainer, this configuration is suitable for permanent filtration, startup protection and large-flow process pipelines.
- Cast and fabricated body configurations
- Horizontal and vertical installation options
- Permanent and temporary filtration designs
- Perforated, mesh-lined and wedge-wire screens
- Drain, vent and differential-pressure connections
Straight Flow Path
Supports efficient flow through the main pipeline connection.
Large Screen Area
Provides useful dirt-holding capacity for demanding service.
Accessible Maintenance
The perpendicular chamber allows screen removal and cleaning.
Project Flexibility
Body, connection and screen options can match project conditions.
Product Collection
Tee Strainer Types
Select the construction, installation orientation and screen arrangement that match the pipeline duty.

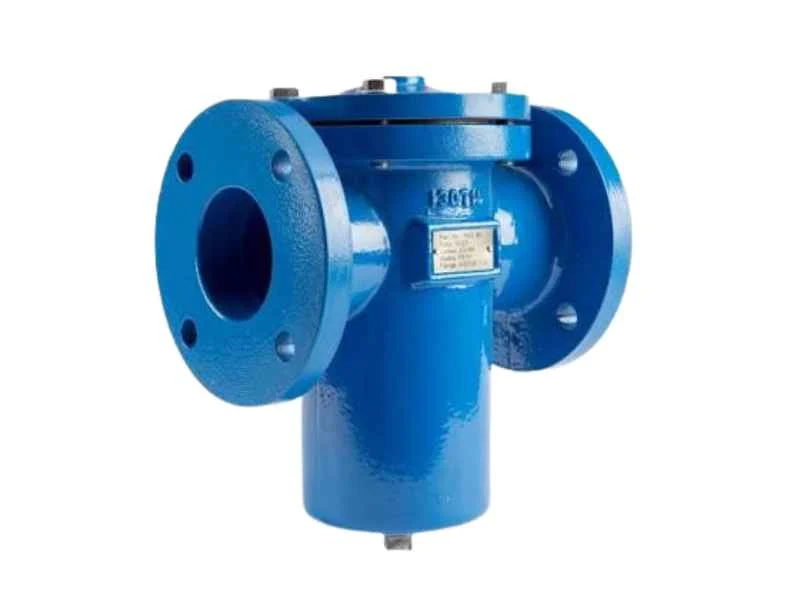

Cast Tee Strainer
A compact cast-body strainer for permanent filtration in general industrial pipelines.
- Flanged connections
- Removable filter element
- Multiple body materials

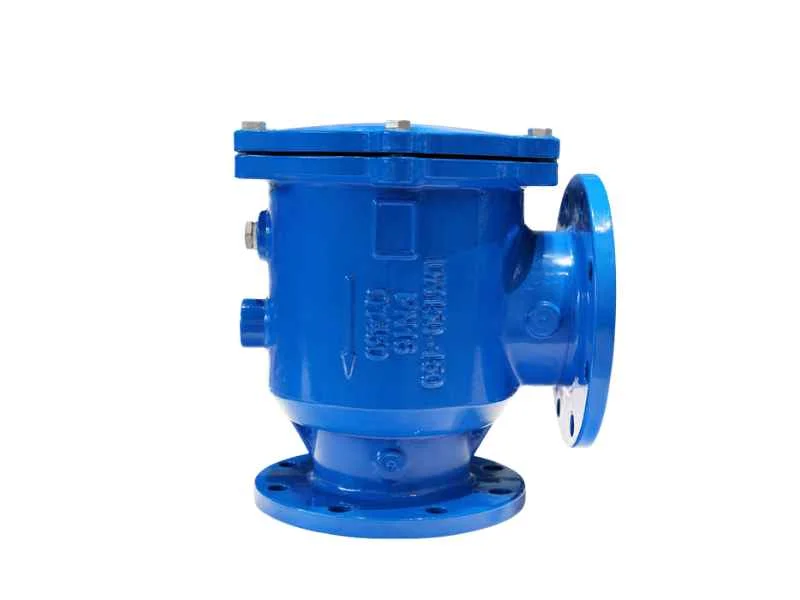

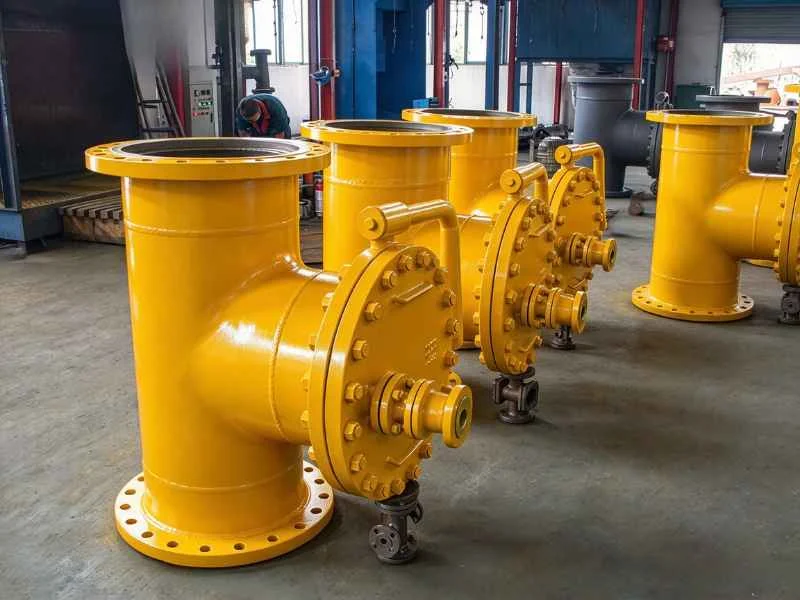

Fabricated Tee Strainer
A welded configuration for larger pipelines, higher flow rates and custom nozzle arrangements.
- Large-size capability
- Custom body dimensions
- Flexible screen orientation

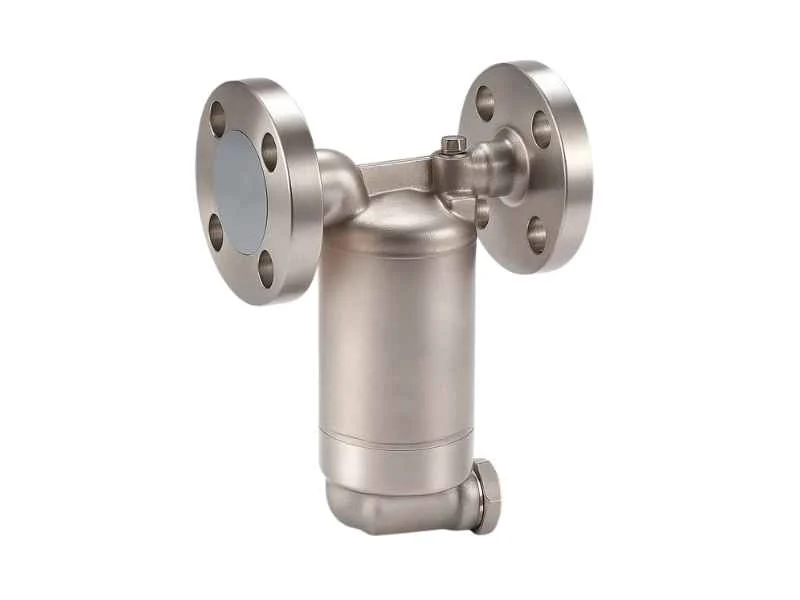

Horizontal Tee Strainer
A straight-through configuration with the screen chamber positioned for horizontal pipeline installation.
- Horizontal pipeline service
- Top or bottom screen access
- Drain and vent options

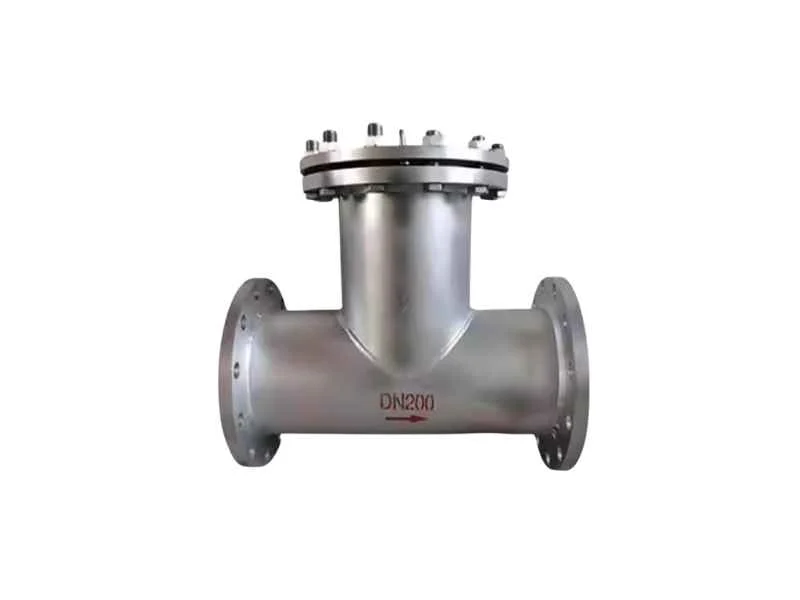

Vertical Tee Strainer
A project-specific design for vertical pipelines where flow direction and debris collection permit this arrangement.
- Vertical pipeline installation
- Application-specific orientation
- Maintenance-clearance review

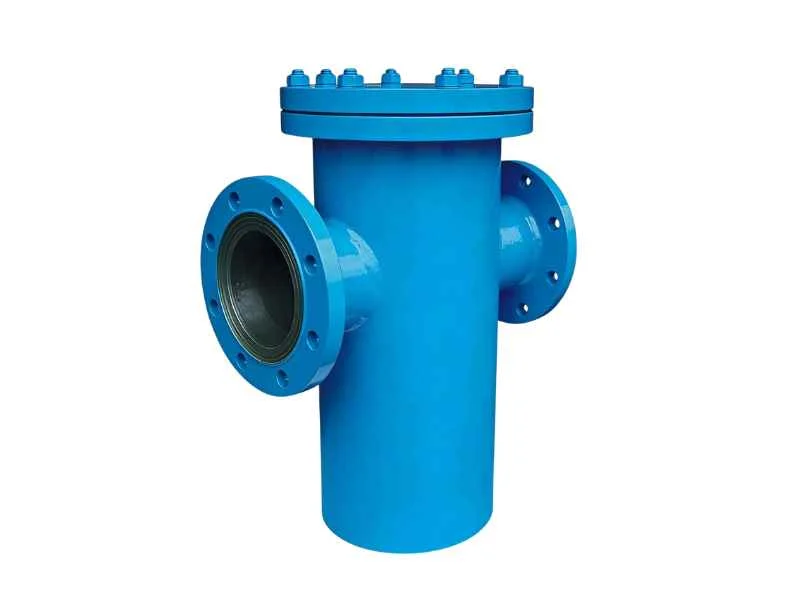

Quick-Opening Tee Strainer
A maintenance-focused configuration for processes requiring frequent screen inspection or cleaning.
- Faster screen access
- Reduced maintenance time
- Safety interlock options

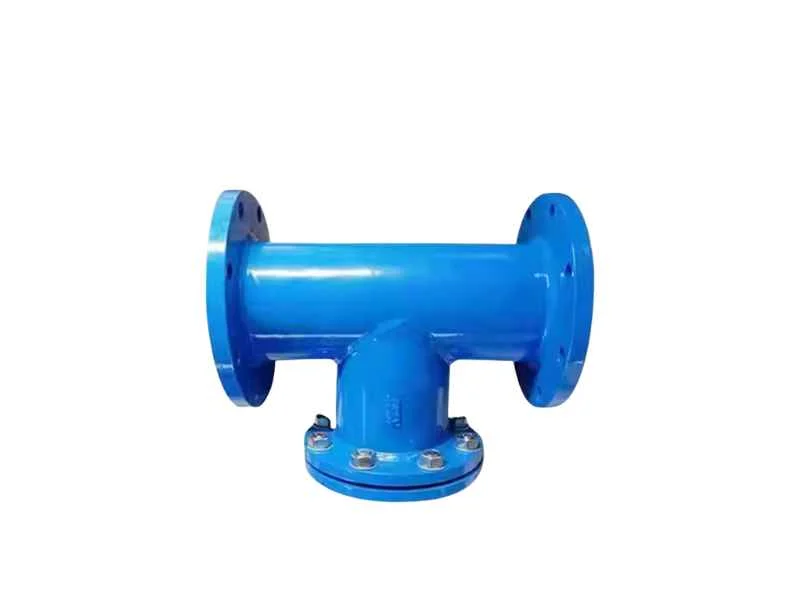

Custom Tee Strainer
A project-engineered strainer for special materials, screen openings, connections or installation restrictions.
- Custom filtration area
- Special material combinations
- Alternative nozzle arrangements
Product Comparison
Choose the Appropriate Tee Strainer
The preferred configuration depends on pipe size, flow rate, pressure, orientation and maintenance frequency.
| Tee Strainer Type | Body Construction | تثبيت | Maintenance Access | Typical Application |
|---|---|---|---|---|
| Cast Tee Strainer | Cast body | Horizontal | Bolted cover | General industrial service |
| Fabricated Tee Strainer | Welded body | Horizontal or vertical | Project-specific cover | Large-size and high-flow systems |
| Horizontal Tee Strainer | Cast or fabricated | Horizontal pipeline | Top or bottom access | Permanent pipeline filtration |
| Vertical Tee Strainer | Fabricated | Vertical pipeline | Side access | Restricted piping layouts |
| Quick-Opening Tee Strainer | Cast or fabricated | Project dependent | Quick-opening closure | Frequent screen cleaning |
| Custom Tee Strainer | Project engineered | Project dependent | Project dependent | Special process requirements |

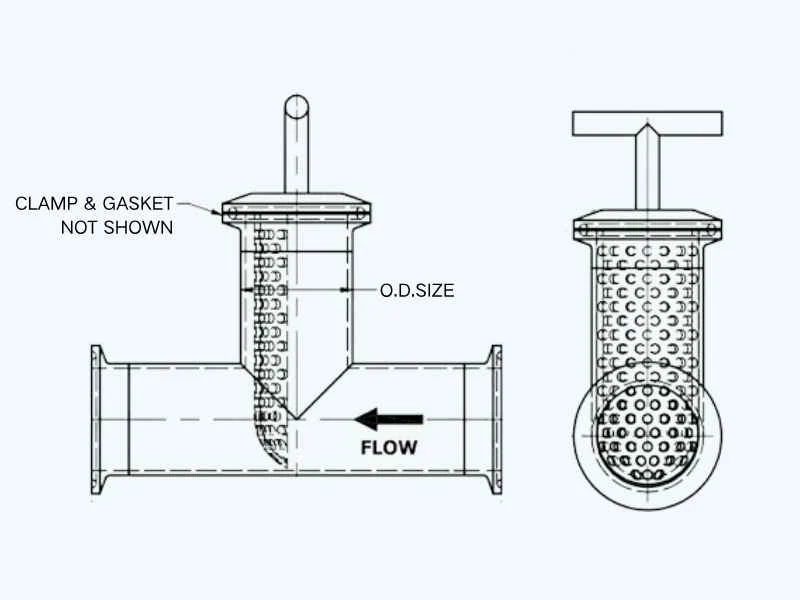

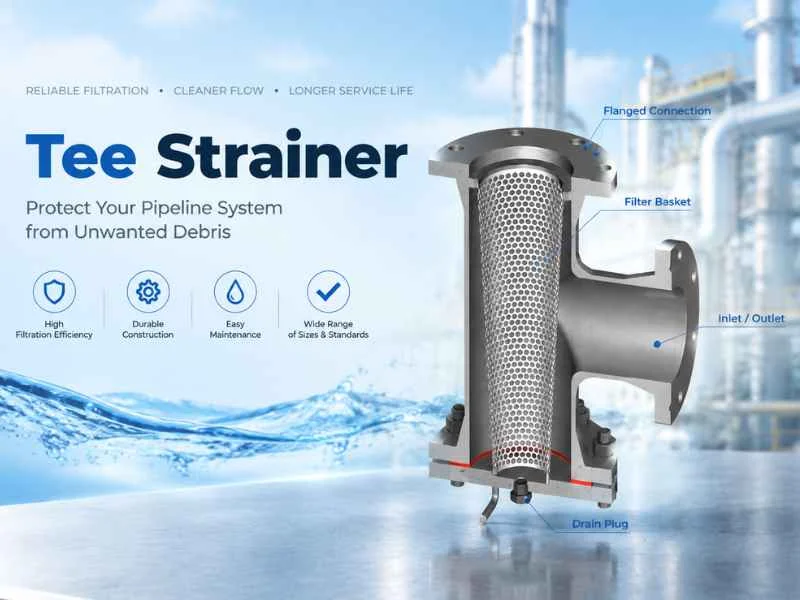

Operating Principle
How a Tee Strainer Works
Process fluid moves through the straight body and passes across the filter element installed inside the perpendicular chamber. Solid particles remain on the dirty side of the screen while filtered fluid continues downstream.
- Unfiltered process fluid enters the strainer inlet.
- Flow passes through the perforated or mesh-lined screen.
- Solid particles collect on the upstream screen surface.
- Filtered fluid exits through the straight pipeline connection.
- Differential pressure rises as debris accumulates.
- The element is isolated, removed and cleaned when required.
Required Flow
Determines body size, connection size and filtration area.
Screen Opening
Must protect downstream equipment without excessive restriction.
Allowable Pressure Drop
Must be checked for both clean and contaminated conditions.
Maintenance Clearance
Sufficient space is required for safe screen removal.
Technical Options
Tee Strainer Configuration Guide
Available options depend on the selected construction and project conditions. Confirm the complete specification before ordering.
| المعلمة | Typical Options | Information Required |
|---|---|---|
| Body Construction | Cast or fabricated | Pipe size, pressure and project specification |
| تثبيت | Horizontal or vertical | Flow direction and available space |
| اتصال | Flanged, butt-welded or project specified | Piping standard and pressure class |
| Cover | Bolted, hinged or quick opening | Pressure and maintenance frequency |
| Screen Construction | Perforated, mesh lined or wedge wire | Particle size and mechanical strength |
| Drain and Vent | Plugged, flanged or valve connections | Cleaning and maintenance procedure |
| Monitoring | Pressure-gauge or differential-pressure connections | Maintenance and control requirements |
| مُكَمِّلات | Support legs, lifting devices or heating jacket | Installation and process requirements |
Screen Selection
Filtration Opening and Screen Construction
Screen design should balance particle retention, filtration area, mechanical strength and allowable pressure drop.

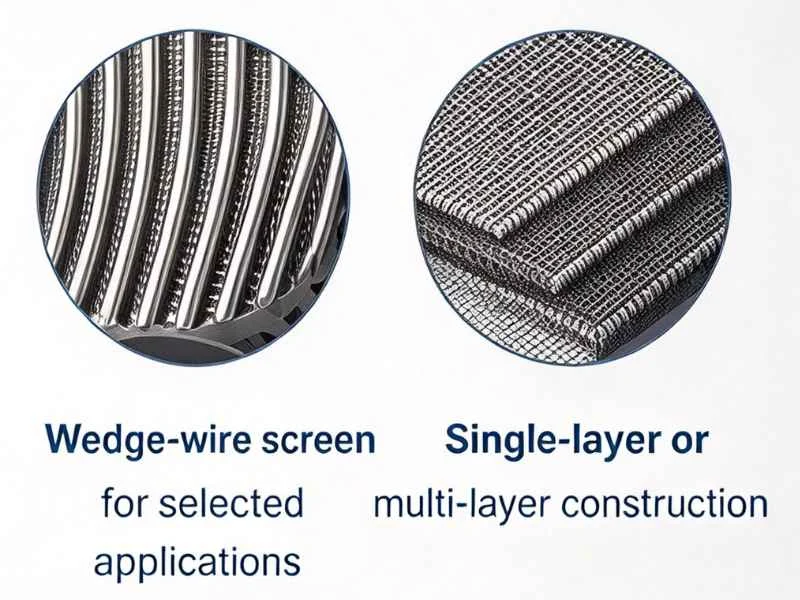

Screen Construction Options

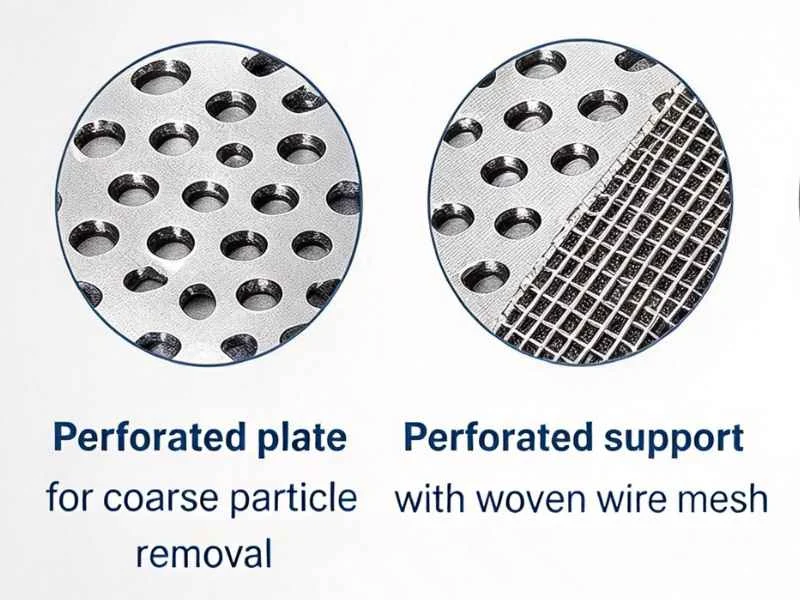

- Perforated plate for coarse particle removal
- Perforated support with woven wire mesh
- Wedge-wire screen for selected applications
- Single-layer or multi-layer construction
- Reinforced screen for higher differential pressure
Selection Considerations
- Smallest particle that can damage downstream equipment
- Expected particle type and concentration
- Required flow rate and fluid viscosity
- Allowable clean and dirty pressure drop
- Required cleaning and replacement interval
| Screen Type | Filtration Characteristic | Relative Strength | Typical Use |
|---|---|---|---|
| Perforated Plate | Coarse filtration | عالية | Large debris and startup protection |
| Mesh-Lined Screen | Medium or fine filtration | Supported | Pumps, valves and meters |
| Wedge-Wire Screen | Uniform slot opening | عالية | Water and selected process systems |
| Reinforced Screen | Application-specific filtration | Very high | Higher differential-pressure conditions |
Tee or Y Strainer
Compare Pipeline Strainer Designs
Both configurations protect downstream equipment, but their body shape and maintenance arrangement suit different installations.
| Selection Factor | Tee Strainer | مصفاة Y |
|---|---|---|
| مسار التدفق | Straight-through body | Y-shaped screen pocket |
| Screen Position | Perpendicular to the pipeline | Angled to the pipeline |
| Filtration Area | Suitable for larger screen designs | Compact screen arrangement |
| Maintenance Access | Top, bottom or side access | Angled cover access |
| Large Pipeline Use | Common fabricated option | Model dependent |
| Typical Selection Reason | High flow or layout preference | Compact and economical filtration |
المواد
Material Options for Different Media
Body, screen, gasket and bolting materials should be selected together according to the process medium, pressure, temperature and corrosion conditions.
| المكوّن | Typical Material Options |
|---|---|
| Cast Body | Carbon steel, low-temperature steel, SS304 or SS316 |
| Fabricated Body | Carbon steel, SS304, SS304L, SS316 or SS316L |
| Filter Screen | SS304, SS304L, SS316 or SS316L |
| Cover Gasket | Graphite, PTFE or application-specific material |
| Bolting | Selected according to pressure, temperature and body material |
Selection Checklist
Information Required for Tee Strainer Selection
Complete operating data allows the manufacturer to review body size, screen area, filtration opening and pressure-drop requirements.
Process Data
- Fluid name and composition
- Design pressure and temperature
- Operating pressure and temperature
- Normal and maximum flow rates
- Fluid density and viscosity
Filtration Data
- Required screen opening
- Particle type and concentration
- انخفاض الضغط المسموح به
- Required filtration area
- Screen material and construction
Piping Requirements
- Nominal pipe size
- Connection standard and pressure class
- Horizontal or vertical installation
- Available screen-removal clearance
- Drain, vent and monitoring requirements
التطبيقات
Tee Strainer Applications
Tee strainers provide pipeline protection across process, energy and industrial utility systems.

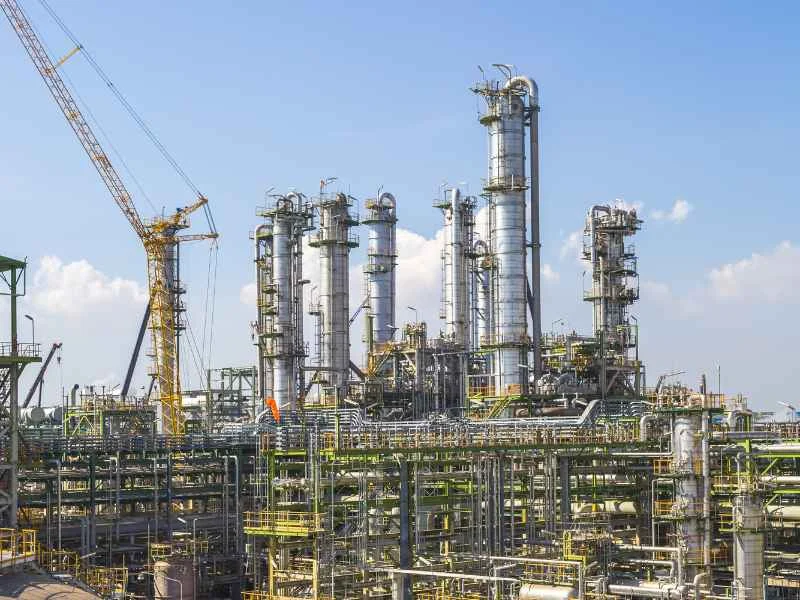

النفط والغاز
Pipeline protection for pumps, meters, valves and transfer equipment.

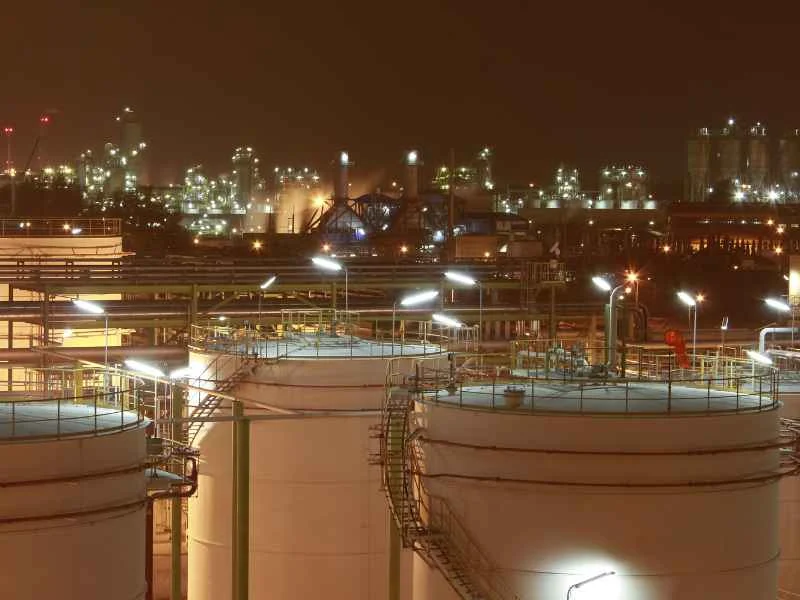

المعالجة الكيميائية
Material-compatible filtration for chemicals, solvents and process liquids.

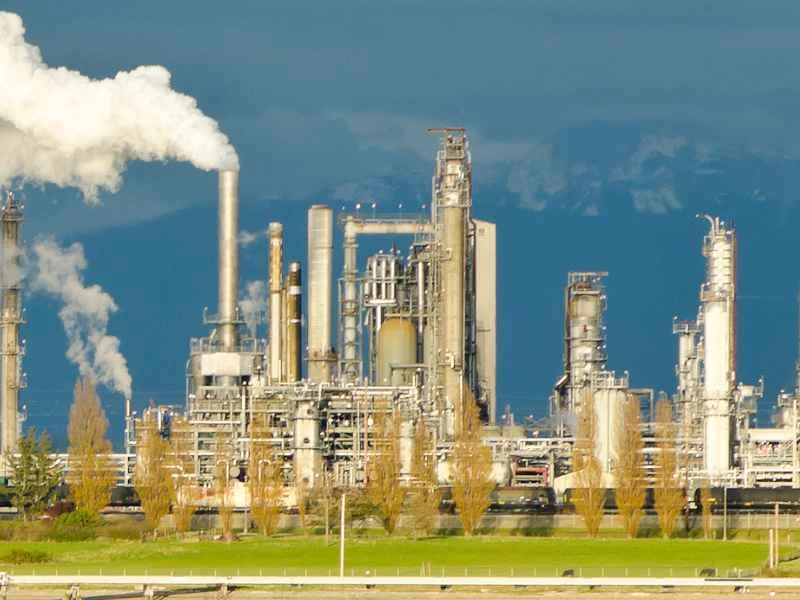

توليد الطاقة
Filtration for cooling water, steam, condensate and auxiliary systems.

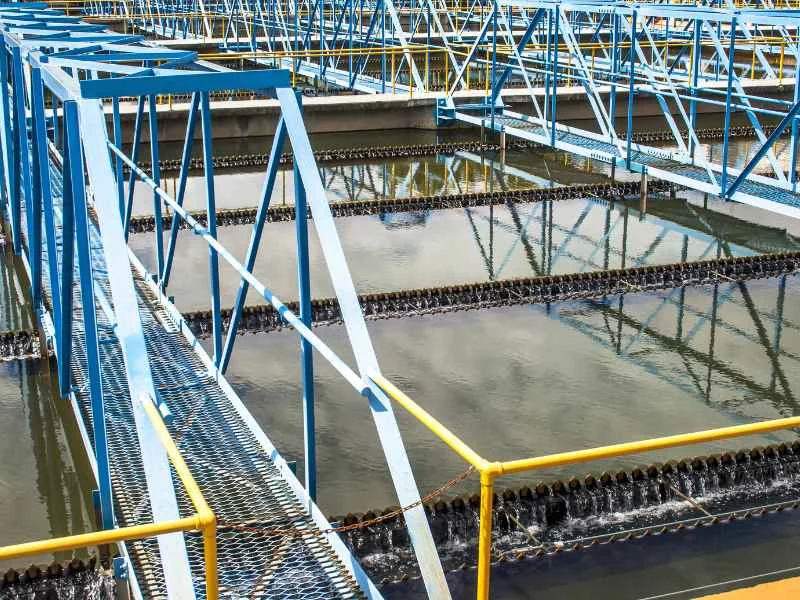

Water & Mining
Debris removal from raw water, process water and utility pipelines.

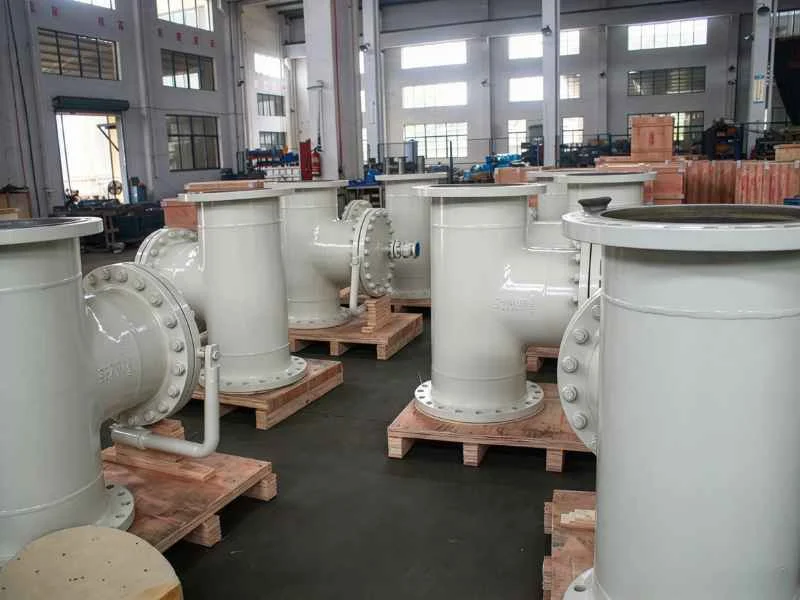

Manufacturer Quality Control
Inspection Before Delivery
The inspection scope depends on the selected tee strainer construction and agreed project requirements.
- Review the approved datasheet and product drawing.
- Verify body, screen, gasket and bolting materials.
- Inspect dimensions, nozzle orientation and connections.
- Check screen opening, construction and fit.
- Perform pressure and leakage testing where applicable.
- Review cleanliness, documentation and protective packing.
Installation & Maintenance
Maintain Reliable Filtration Performance
Correct orientation, sufficient screen-removal clearance and routine cleaning help control pressure drop and protect downstream equipment.
Installation Guidelines
- Match the body arrow to the pipeline flow direction.
- Follow the approved screen-chamber orientation.
- Provide sufficient clearance for screen removal.
- Support the strainer body and connected piping.
- Install pressure connections where monitoring is required.
- Flush the pipeline before commissioning.
Maintenance Guidelines
- Monitor differential pressure across the strainer.
- Isolate and depressurize the line before opening.
- Remove and clean the screen at suitable intervals.
- Inspect the screen for deformation or damage.
- Replace damaged cover gaskets before reassembly.
- Verify sealing after returning the strainer to service.
Send Us Your Tee Strainer Data
Provide the pipe size, flow rate, pressure, temperature, medium, screen opening and connection standard. BCST Valve will review the information and recommend a suitable tee strainer.
الأسئلة المتداولة
Tee Strainer FAQ
Answers to common questions from engineers, operators and procurement teams.
What is a tee strainer?
A tee strainer is a straight-through pipeline filter with a removable screen installed inside a perpendicular chamber.
Is a tee strainer the same as a T-type strainer?
Yes. Both terms generally describe a strainer with a straight main flow path and a perpendicular screen-access chamber.
What is the difference between a tee and Y strainer?
A tee strainer uses a perpendicular screen chamber, while a Y strainer uses an angled pocket. Selection depends on layout, flow and maintenance requirements.
Can a tee strainer be used permanently?
Yes. Permanent tee strainers include a serviceable body, removable screen, cover, drain and optional monitoring connections.
How is the screen opening selected?
Select an opening small enough to protect downstream equipment while maintaining acceptable flow, pressure drop and cleaning intervals.
How is tee strainer size determined?
Selection considers pipe size, flow rate, fluid properties, screen opening, filtration area and allowable clean and dirty pressure drop.
Can it be installed vertically?
Selected designs can be installed vertically when the flow direction, screen orientation and debris collection arrangement are suitable.
How often should the screen be cleaned?
The interval depends on debris concentration and allowable pressure drop. Differential-pressure monitoring provides a practical indication of blockage.
Can BCST Valve manufacture a custom tee strainer?
Project-specific dimensions, materials, screen openings, nozzle orientations and accessories can be reviewed against the operating conditions.
What information is required for a quotation?
Provide the pipe size, flow rate, pressure, temperature, medium, screen opening, body material, connection standard and installation orientation.
