Abrasion & Corrosion Control
Ceramic Valve Manufacturer
BCST manufactures industrial ceramic valves for abrasive, corrosive and solids-bearing process media. Engineered ceramic seats, balls, gates, liners or trim protect critical flow-path components where conventional metallic materials may experience rapid erosion or chemical attack.
- Ceramic ball, gate, double-disc and control valves
- Isolation and application-specific regulating designs

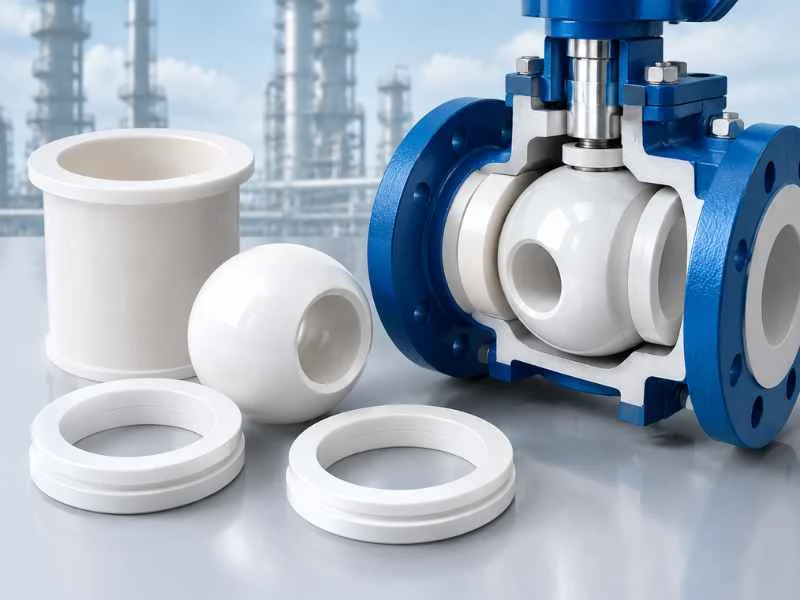

- Replaceable ceramic seats, liners and trim options
- Manual, pneumatic, electric or hydraulic operation
- Material selection based on chemistry, particles and temperature
Abrasion Resistance
Protect seats, liners and closure components from erosive particles.
مقاومة التآكل
Select ceramic wetted components for compatible aggressive process media.
Engineered Flow Path
Reduce local turbulence, particle impact and solids accumulation where practical.
Replaceable Wear Parts
Configure serviceable ceramic trim and liners for planned maintenance.
Product Collection
Ceramic Valve Configurations
Select the valve type according to particle characteristics, pressure drop, operating duty and required shutoff performance.

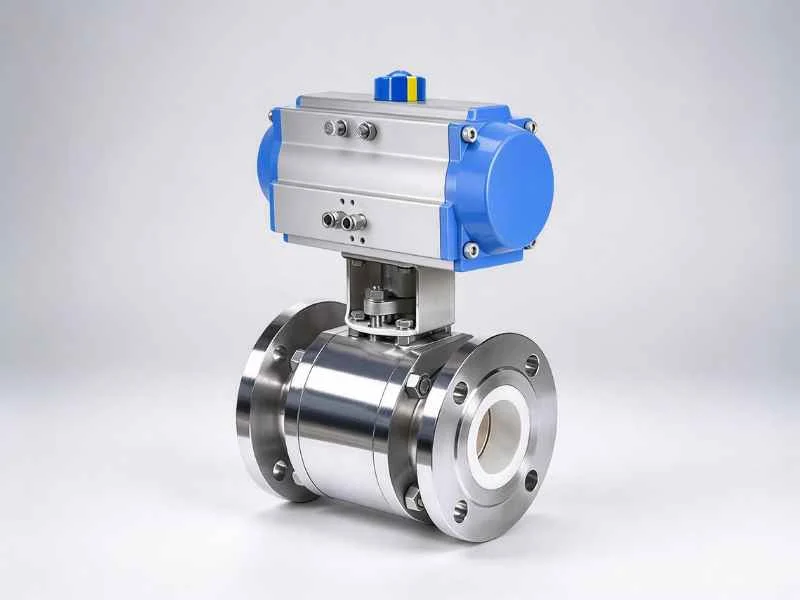

Ceramic Ball Valve
A ceramic ball and seat arrangement provides quarter-turn isolation for compatible abrasive or corrosive media.
- Full-port options
- Fast quarter-turn operation
- Manual or automated actuation

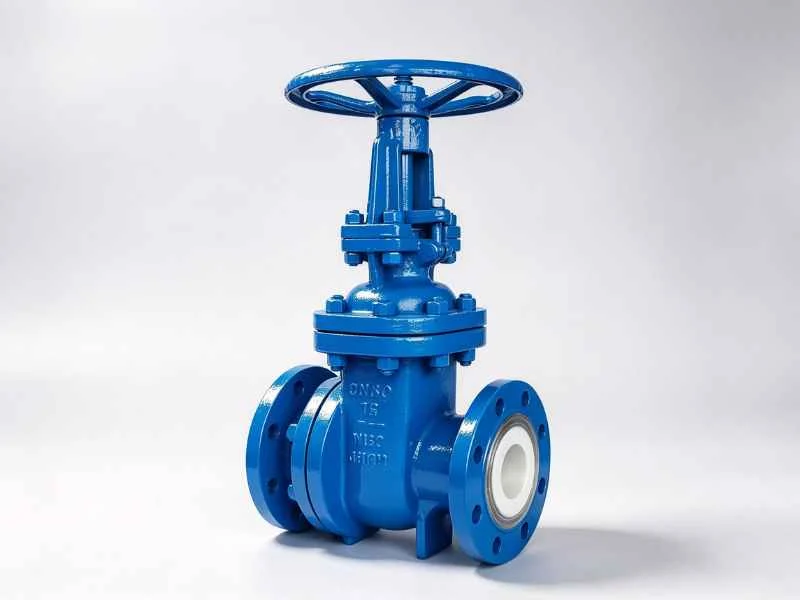

Ceramic Gate Valve
Ceramic sealing and wear components support isolation in ash, powder and solids-bearing pipelines.
- Isolation-focused design
- Low-obstruction open passage
- Abrasion-resistant sealing parts

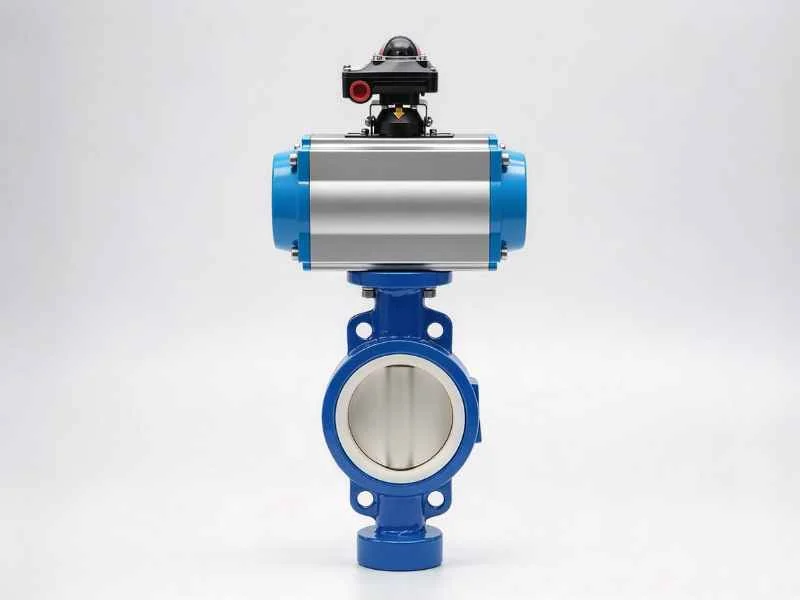

Ceramic Double-Disc Valve
Opposed ceramic sealing discs provide isolation for dry powder, ash and pneumatic conveying applications.
- Suitable for particulate media
- Compact isolation arrangement
- Pneumatic automation options

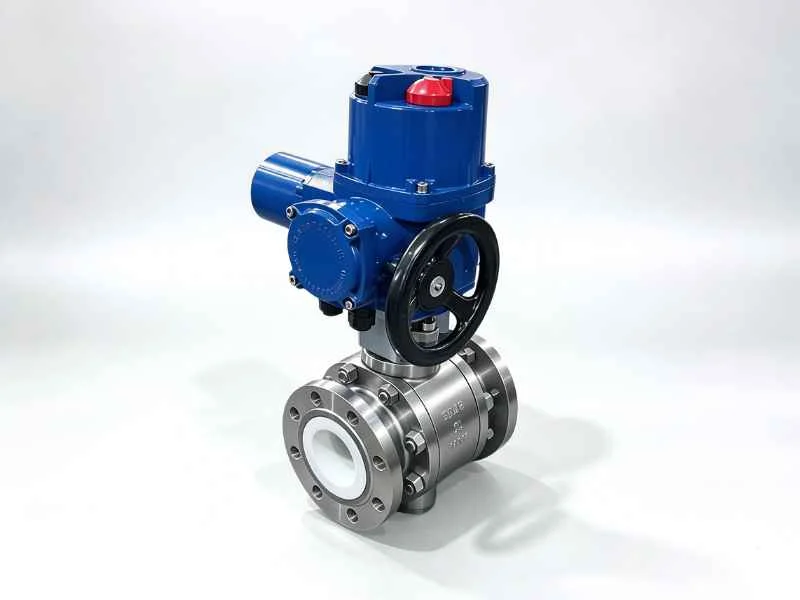

Ceramic Control Valve
Engineered ceramic trim provides application-specific regulation where erosion or corrosion affects conventional trim.
- Modulating flow control
- Wear-resistant trim options
- Positioner and feedback integration
Product Comparison
Choose the Appropriate Ceramic Valve
| نوع الصمام | الوظيفة الأساسية | Main Advantage | Important Consideration | Typical Duty |
|---|---|---|---|---|
| Ceramic ball valve | Quarter-turn isolation | Low-obstruction flow path | Particle trapping and operating torque | Slurry and corrosive liquid isolation |
| Ceramic gate valve | Open-close isolation | Large open flow area | Solids accumulation around the seat | Ash, powder and solids-bearing media |
| Ceramic double-disc valve | Frequent isolation | Compact closure for dry particulate service | Particle size and air quality | Pneumatic conveying and ash handling |
| Ceramic control valve | Continuous regulation | Wear-resistant control trim | Velocity, pressure drop and cavitation | Abrasive or corrosive flow control |
| Ceramic-lined valve | Isolation or application-specific control | Protected body flow path | Ceramic support and thermal stress | Combined abrasion and corrosion |

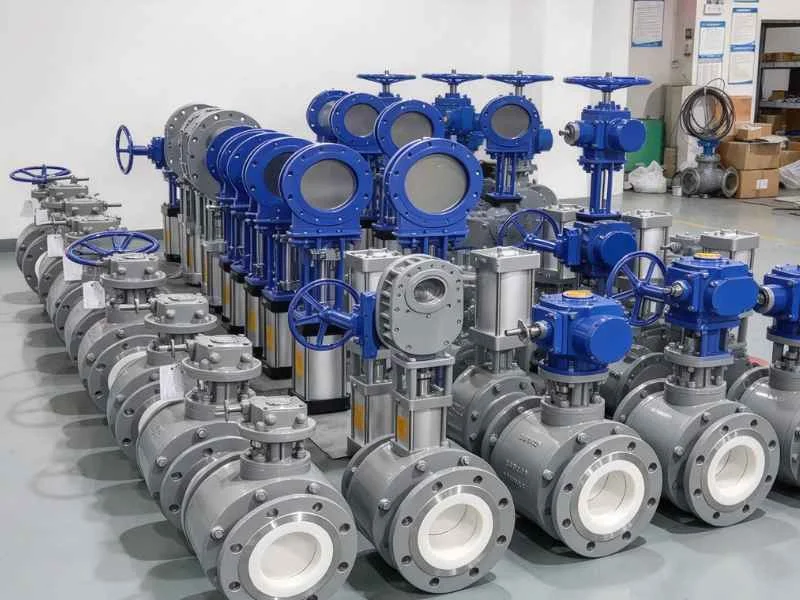

Engineering Approach
Designed Around Wear Mechanisms
Ceramic hardness alone does not determine valve life. Particle impact, flow velocity, pressure drop, thermal shock and mechanical loading must also be evaluated.
- Identify the medium: Confirm liquid, gas, slurry, powder or mixed-phase service.
- Describe the solids: Provide particle size, shape, hardness and concentration.
- Review the chemistry: Identify corrosive components, concentration and impurities.
- Define the duty: Confirm isolation, frequent cycling or continuous regulation.
- Locate expected wear: Evaluate seats, closure elements, liners and downstream piping.
- Select the ceramic: Balance hardness, toughness, corrosion resistance and thermal behavior.
Control Particle Velocity
High local velocity can accelerate erosion even when hard ceramic materials are used.
Avoid Impact Loading
Ceramics require support and protection from shock, misalignment and external piping loads.
Review Thermal Change
Rapid temperature changes can create damaging stress between ceramic and metallic parts.
Technical Configuration
Configurable Ceramic Valve Specifications
Available specifications depend on the valve design, ceramic material and approved operating conditions.
| المعلمة | Available Engineering Options | Selection Basis |
|---|---|---|
| Nominal size | Model-dependent size range | Pipeline size, flow rate and particle passage |
| Pressure class | Selected according to valve construction | Operating, design and differential pressure |
| درجة حرارة التشغيل | Material- and seal-dependent range | Normal, maximum, minimum and transient temperature |
| Ceramic components | Ball, seat, gate, disc, liner or control trim | Expected wear location and valve function |
| Ceramic material | Alumina, zirconia, silicon carbide or engineered option | Abrasion, toughness, chemistry and temperature |
| Body material | Cast iron, carbon steel, stainless steel or alloy | Pressure, environment and mechanical support |
| Seat and seal | Ceramic, metallic or compatible soft-seal combination | Medium, temperature and shutoff requirement |
| اتصال | Flanged, wafer, threaded or project-specific | Piping standard and installation layout |
| العملية | Manual, pneumatic, electric or hydraulic | Torque, thrust, cycle frequency and utilities |
| Control accessories | Solenoid, regulator, switches and positioner | Plant control philosophy |
Ceramic Material Selection
Match Hardness, Toughness and Chemistry
The correct ceramic depends on more than abrasion resistance. Mechanical shock, corrosion, thermal cycling, component geometry and manufacturing method can change performance.
- Particle hardness, shape and impact angle
- Normal and maximum flow velocity
- Chemical composition and concentration
- Operating and transient temperature
- Pressure differential across the closure
- Expected operating frequency
- Mechanical support and assembly method
Ceramic Material Guide
Ceramic Options for Different Conditions
Final material selection must be confirmed against the complete medium, temperature, pressure and mechanical duty.
| Ceramic Material | Typical Strength | Engineering Consideration |
|---|---|---|
| Alumina ceramic | Hardness, wear resistance and broad industrial use | Review impact, thermal shock and chemical compatibility |
| Zirconia ceramic | Higher fracture toughness than many technical ceramics | Confirm temperature, wear mechanism and chemistry |
| Silicon carbide | High hardness and resistance to selected corrosive media | Evaluate brittleness, thermal conditions and assembly |
| Silicon nitride | Toughness and thermal-shock performance for selected duties | Review component geometry and process compatibility |
| Ceramic composite | Application-specific balance of wear and toughness | Requires detailed project and manufacturing review |
| Ceramic coating | Localized surface protection where applicable | Consider coating thickness, adhesion and substrate movement |
Isolation vs. Control
Match the Valve to the Operating Duty
Isolation Duty
The valve operates primarily between fully open and fully closed positions.
- Pipeline shutdown
- Equipment isolation
- Process-line switching
- Reduced exposure to throttling erosion
Frequent-Cycle Duty
The valve repeatedly opens and closes during conveying, discharge or batching operations.
- Cycle-life evaluation
- Fast actuator response
- Position feedback
- Deposit-control planning
Modulating Duty
The valve operates at intermediate positions to regulate flow or pressure.
- Velocity and pressure-drop analysis
- Cavitation and flashing review
- Erosion-resistant trim
- Positioner and feedback options

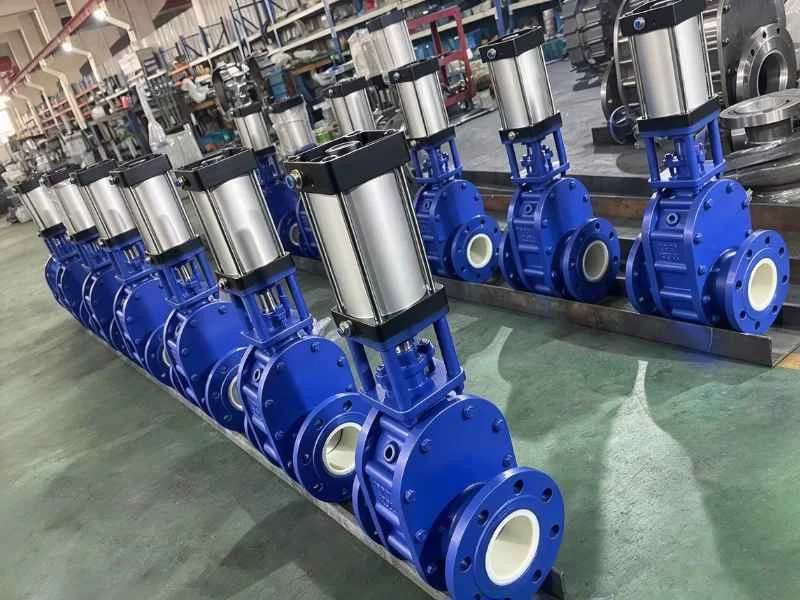

Handling & Installation
Protect Ceramic Components from Mechanical Shock
Technical ceramics can provide excellent wear performance but require correct support, alignment and handling. Impact or external piping stress can damage ceramic components.
- Keep protective packaging until installation
- Do not strike the valve or ceramic components
- Align piping without forcing the valve body
- Support adjacent piping independently
- Prevent welding debris from entering the valve
- Follow the specified flange-tightening sequence
- Avoid rapid temperature changes during startup
Application Matrix
Typical Ceramic Valve Applications
| Industry or System | Typical Medium | Valve Function | Key Selection Concern |
|---|---|---|---|
| توليد الطاقة | Fly ash, bottom ash and desulfurization slurry | Isolation and discharge control | Abrasion, particles and cycle frequency |
| Mining and minerals | Ore slurry, tailings and mineral suspension | Isolation and flow control | Particle hardness, size and velocity |
| Cement production | Powder, clinker dust and abrasive suspension | Transfer and equipment isolation | Dry abrasion and deposit accumulation |
| المعالجة الكيميائية | Corrosive slurry and process suspension | Isolation and regulation | Combined corrosion and erosion |
| Steel and metallurgy | Scale-bearing water and abrasive process media | Isolation and process control | Wear, impact and temperature |
| Pneumatic conveying | Ash, powder and granular solids | Line isolation and discharge | Particle impact and operating frequency |
| معالجة المياه | Lime slurry, sludge and treatment suspension | Isolation and dosing control | Scaling, settling and chemical compatibility |
Selection Checklist
Information Required for Ceramic Valve Selection
Process Data
- Medium name and chemical composition
- Solids concentration by weight or volume
- Particle size, distribution, shape and hardness
- Fluid density and viscosity
- Operating and design temperature
- Operating and differential pressure
Pipeline & Control Data
- Pipeline size and connection standard
- Normal, minimum and maximum flow rate
- Isolation, cycling or modulating duty
- Expected operating frequency
- Available pneumatic, electric or hydraulic utility
- Required operating time, fail position and feedback
Manufacturer Support
From Wear Data to Final Valve Configuration
1. Process Review
We review chemistry, particles, velocity, pressure, temperature and operating duty.
2. Material Selection
The ceramic components, supporting body, seats and seals are evaluated together.
3. Actuator Selection
Required torque or thrust, speed, fail position and control accessories are configured.
4. Documentation
Approved drawings, technical data and inspection documents are prepared for the order scope.

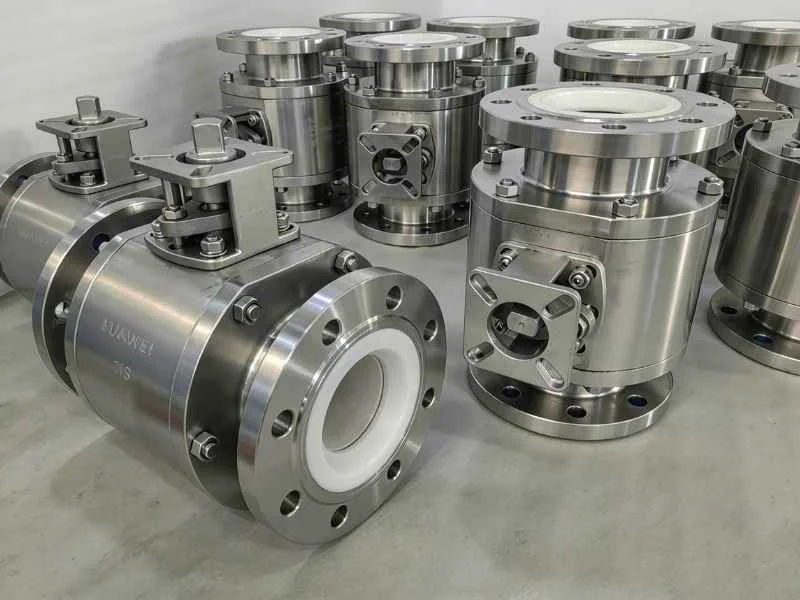

Quality Control
Inspection Before Shipment
Inspection and testing are completed according to the selected model, approved specification and purchase-order requirements.
- Material and component verification
- Dimensional and visual inspection
- Ceramic surface and assembly inspection
- Valve opening and closing checks
- Pressure and leakage testing where specified
- Actuator and accessory function checks
- Position-feedback verification where required
- Protection, marking and packing inspection
Installation & Maintenance
Protect Ceramic Components Throughout Service
تثبيت
- Handle the valve without impact
- Align piping without external stress
- Support adjacent piping independently
- Follow the specified flow direction
- Use the approved tightening sequence
Commissioning
- Remove welding debris from the pipeline
- Confirm complete opening and closing
- Verify actuator direction and feedback
- Introduce temperature changes gradually
- Record initial operating conditions
الصيانة
- Inspect ceramic wear surfaces regularly
- Monitor leakage and operating torque
- Remove deposits before they restrict movement
- Inspect downstream piping for erosion
- Keep recommended service parts available
Send Us Your Ceramic Valve Data
Provide the medium composition, solids concentration, particle characteristics, flow rate, pressure, temperature, pipeline size, operating duty and actuator preference. Our engineers will help configure a suitable ceramic valve.
الأسئلة المتداولة
Ceramic Valve FAQ
What is a ceramic valve?
It is a valve that uses technical ceramic materials in selected wetted or wear-critical components such as the ball, seat, gate, disc, liner or control trim.
Why use ceramic components?
Selected ceramics can provide high hardness and resistance to compatible abrasive or corrosive media, helping protect parts exposed to severe wear.
Which ceramic material should I select?
The choice depends on abrasion, corrosion, impact, thermal shock, component geometry and operating duty. Complete process data is required.
Can ceramic valves handle slurry?
Yes, suitable designs can be evaluated for slurry after reviewing particle size, hardness, solids concentration, velocity, pressure and chemistry.
Can a ceramic valve be used for throttling?
Only suitable control-valve designs should be used for throttling. Velocity, cavitation, flashing and erosion must be evaluated.
Are ceramic valves resistant to impact?
Ceramics are hard but can be sensitive to mechanical shock. Correct support, alignment, handling and operating conditions are important.
Can BCST provide automated ceramic valves?
Yes. Pneumatic, electric and hydraulic actuation can be evaluated with switches, solenoids, positioners and feedback accessories.
What information is required for quotation?
Provide process chemistry, solids concentration, particle size and hardness, flow, pressure, temperature, pipeline connection, duty and actuator preference.
