Technical Documentation for Industrial Projects
BCST prepares technical and quality documentation to support product review, manufacturing control, inspection, installation and maintenance. The final document package is confirmed according to the product, purchase specification and agreed order scope.
- Technical datasheets and approved GA drawings
- Material Test Certificates for specified materials
- Inspection and test reports
- ITP and QAP for project quality control
- Installation, operation and maintenance manuals
Define the Product
Datasheets and drawings record the approved technical configuration.
Verify the Materials
Material records support traceability for specified pressure-containing parts.
Record the Quality
Inspection and test reports document agreed verification activities.
Support the Lifecycle
Manuals guide installation, commissioning, operation and maintenance.
Available Technical Documents
Document availability and content depend on the product type, project requirements and confirmed purchase-order scope.
Datasheet
Summarizes the approved product configuration and principal operating information.
- Product type and model
- Size and pressure rating
- Materials and connections
- Operating and design conditions
GA Drawing
Shows the general arrangement, main dimensions and relevant equipment interfaces.
- Overall dimensions
- Connection details
- Actuator orientation
- Weight and interface information
MTC
Provides material test information for the specified components and material grades.
- Material grade
- Heat or batch reference
- Chemical composition
- Mechanical properties where applicable
Inspection Report
Records the results of agreed visual, dimensional and manufacturing inspections.
- Appearance inspection
- Dimensional verification
- Marking and nameplate checks
- Coating inspection where applicable
Test Report
Records the results of specified pressure, leakage, functional or performance tests.
- Test method and medium
- Test pressure and duration
- Acceptance criteria
- Recorded result
ITP
Defines the planned inspection and test activities across the production process.
- Manufacturing stages
- Inspection activities
- Review and witness points
- Required quality records
QAP
Describes the quality controls, responsibilities and records applicable to the order.
- Quality-control sequence
- Responsible departments
- Applicable procedures
- Document and record requirements
يدوي
Provides guidance for receiving, installation, operation and planned maintenance.
- Handling and storage
- Installation instructions
- Operation and commissioning
- Inspection and maintenance
What Each Document Helps Confirm
| Document | Primary Purpose | Typical Review Stage | Main User |
|---|---|---|---|
| Datasheet | Define the technical configuration | Quotation and order confirmation | Process, piping and procurement teams |
| GA Drawing | Confirm dimensions and interfaces | Design approval and installation planning | Engineering and construction teams |
| MTC | Verify specified material properties | Manufacturing record review | Quality and material-control teams |
| Inspection Report | Record visual and dimensional checks | Manufacturing and final inspection | Quality and inspection teams |
| Test Report | Record specified test results | Final verification | Quality, engineering and client inspectors |
| ITP | Plan inspection and testing activities | Before manufacturing begins | Project and quality teams |
| QAP | Define quality-control responsibilities | Project quality planning | Quality assurance and project teams |
| يدوي | Support installation and operation | Delivery, commissioning and service | Construction, operations and maintenance teams |

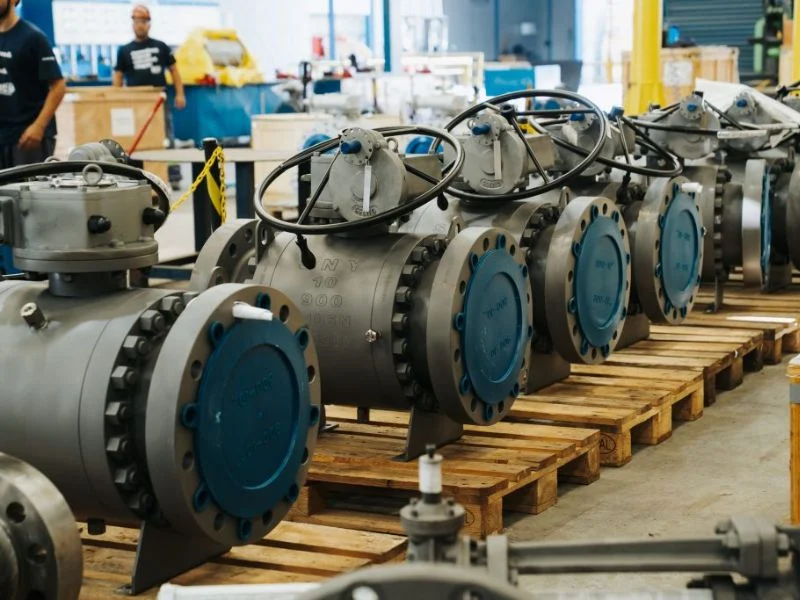

Datasheet
The datasheet creates a concise technical record of the product offered or ordered. It should align with the approved quotation, drawing and purchase specification.
Typical Datasheet Content
- Project, customer and item reference
- Product type, model and required quantity
- Nominal size and pressure rating
- Operating and design conditions
- Body, trim, seat, liner and sealing materials
- End connection and applicable dimensional standard
- Actuator, accessories and control requirements
- Applicable inspection and testing requirements

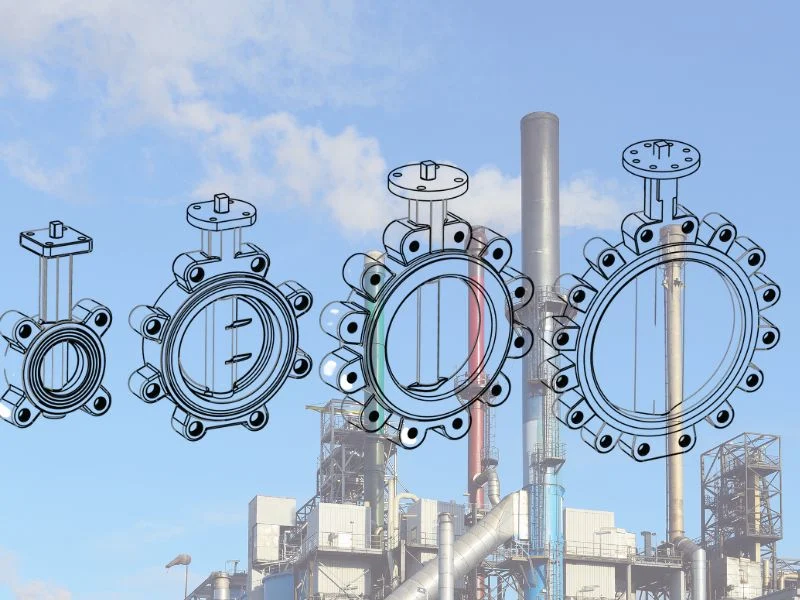

GA Drawing
The General Arrangement drawing helps customers verify that the product fits the piping, duct, tank or equipment interface before manufacturing and installation.
Typical Drawing Content
- Overall length, width and height
- Face-to-face or installation dimensions
- Flange, nozzle or connection details
- Flow direction and installation orientation
- Actuator and accessory arrangement
- Drain, vent, purge and instrument connections
- Approximate product weight
- Applicable notes and revision status
Technical Approval
Confirm datasheets and drawings before production begins.
Revision Control
Track document status, comments and approved changes clearly.
Document Traceability
Connect records to the project, item, tag or order reference.
Material Test Certificate
An MTC provides recorded material information for specified components. The required certificate type, applicable components and traceability scope should be confirmed before production.
- Manufacturer or material supplier identification
- Material specification and grade
- Heat, lot or batch reference
- Chemical composition results
- Mechanical-property results where applicable
- Heat-treatment information where applicable
- Product dimensions or material form
- Authorized validation information
Certificate content and availability depend on the material, component and agreed project requirements.
Inspection Report and Test Report
Inspection Report
Records agreed inspections completed during production or final verification.
- Visual condition
- Critical dimensions
- Component assembly
- Marking and nameplate
- Coating or surface condition
- Quantity and packing checks
Test Report
Records specified test conditions, acceptance criteria and final results.
- Shell or body test
- Seat or leakage test
- Functional operation test
- Set-point verification where applicable
- Actuator travel check
- Additional agreed examinations
ITP and QAP
| Quality Document | Main Focus | Typical Content | When It Is Reviewed |
|---|---|---|---|
| ITP | Inspection and test sequence | Production stages, inspections, tests and records | Before manufacturing begins |
| ITP | Client involvement | Review, witness and hold points where agreed | During document approval |
| ITP | Acceptance criteria | Reference procedures and acceptance requirements | Before each relevant inspection |
| QAP | Quality organization | Responsibilities and quality-control activities | During project quality planning |
| QAP | Process control | Document, purchasing, manufacturing and inspection controls | Before and during execution |
| QAP | Quality records | Required records, review and document-retention expectations | Throughout the order |

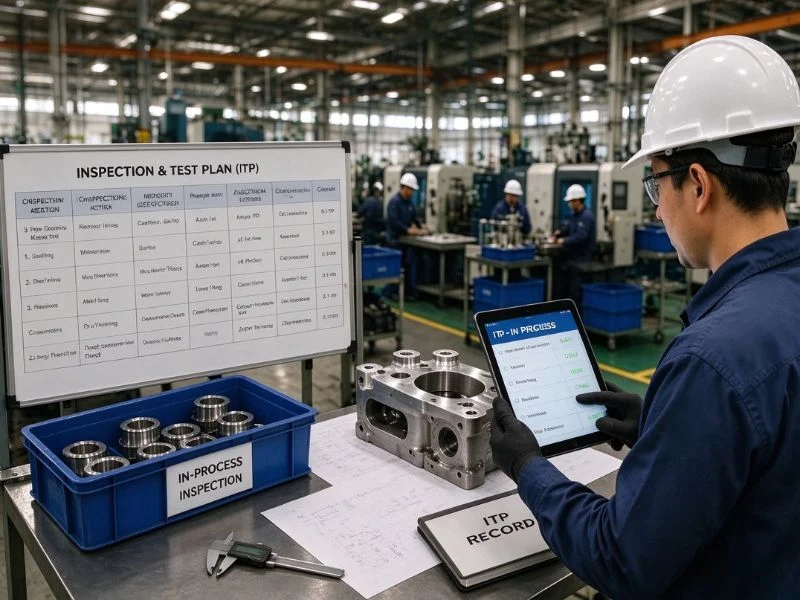

Typical ITP Stages
- Review the approved datasheet, drawing and order requirements.
- Verify material documents for specified components.
- Inspect incoming or prepared components where required.
- Confirm critical manufacturing and assembly stages.
- Complete dimensional and visual inspections.
- Perform specified pressure, leakage or functional tests.
- Inspect coating, marking and nameplate information.
- Complete final document and release review.
The exact sequence, responsibilities and client involvement are confirmed in the approved project ITP.
Confirm Documentation Before Ordering
Send the required document list, submission schedule, approval workflow and final dossier format with the inquiry so they can be included in the agreed scope.
Installation, Operation and Maintenance Manual
The manual supports personnel responsible for receiving, storing, installing, commissioning, operating and maintaining the supplied product.
- Product identification and intended use
- Handling, lifting and storage precautions
- Installation orientation and connection guidance
- Pre-commissioning inspection
- Operating and actuator instructions
- Routine inspection and maintenance
- Troubleshooting guidance
- Recommended spare and wear components where applicable
Submission, Review and Final Dossier
1. Requirement List
The customer identifies required documents, formats, languages and submission dates.
2. Document Submission
Applicable datasheets, drawings and quality documents are submitted for review.
3. Comment Resolution
Technical comments and revisions are recorded and addressed within the agreed scope.
4. Final Dossier
Approved documents and applicable manufacturing records are compiled for delivery.
Information to Include with the Inquiry
Document Requirements
- Required document list
- Required submission dates
- Review and approval workflow
- Document numbering system
- Required language
- Electronic file format
- Final dossier structure
Quality Requirements
- Applicable project specifications
- MTC scope and required certificate type
- Required inspection and test reports
- ITP review, witness or hold points
- Third-party inspection requirements
- Coating and special examination records
- Record retention or certification expectations
Details That Keep Records Clear
| Control Item | Recommended Information | الغرض |
|---|---|---|
| Document Number | Unique project or supplier document reference | Supports identification and retrieval |
| Revision | Current revision code and date | Prevents use of superseded information |
| Status | For review, approved, as-built or final | Clarifies how the document may be used |
| Item Reference | Tag, serial, model or purchase-order item | Connects the document to the supplied equipment |
| Approval Record | Review comments and approval information | Provides a clear decision history |
| File Format | Agreed editable or non-editable electronic format | Supports project handover and archiving |
Need a Project Documentation Package?
Provide your document register, quality requirements and equipment list. BCST will review the requested package and confirm the applicable scope.
Technical Documentation FAQ
Which documents are supplied with an order?
The document package depends on the product and agreed order scope. Required documents should be listed with the inquiry or purchase specification.
What is the difference between a datasheet and a GA drawing?
A datasheet defines the technical configuration and operating information. A GA drawing shows the physical arrangement, dimensions and interfaces.
Can MTCs be provided for every component?
Availability depends on the component, material source and agreed traceability scope. Required components and certificate types should be confirmed before production.
What is included in a test report?
A test report normally identifies the product, test method, medium, pressure or operating condition, duration, acceptance criteria and recorded result.
What is the difference between an ITP and a QAP?
An ITP focuses on inspection and testing stages. A QAP provides a broader view of quality responsibilities, controls, procedures and records.
Can customer witness points be included in the ITP?
Review, witness and hold points can be included when they are agreed before manufacturing and clearly defined in the approved ITP.
Can documents be submitted before production?
Datasheets, drawings, ITPs and applicable quality documents can be submitted for review according to the agreed project schedule.
What information is needed for a document-package quotation?
Provide the document register, equipment list, required language, formats, submission schedule, inspection scope and final dossier requirements.
