Industrial Air & Gas Flow Control
Butterfly Damper Manufacturer
蝶阀制造商
BCST manufactures industrial butterfly dampers for isolating, diverting and regulating air, flue gas and process-gas flow. Each damper is configured around the duct dimensions, temperature, pressure, gas composition, required leakage performance and actuation method.
- Round and engineered duct configurations
- Isolation and flow-control designs
- Single-blade, double-blade and multi-blade options
- Manual, electric, pneumatic or hydraulic operation
- Materials and seals selected for the operating environment
العزل
Control gas-path isolation for maintenance, shutdown and process switching.
تنظيم التدفق
Adjust blade position to manage air or gas flow within the engineered range.

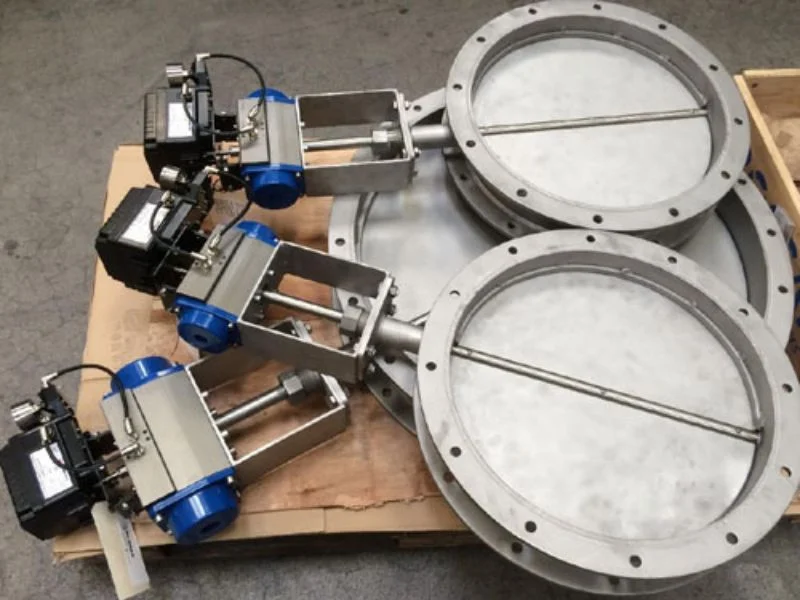

High-Temperature Options
Configure materials, bearings and shaft seals for elevated-temperature service.
Custom Manufacturing
Match duct dimensions, flanges, actuators and accessories to the project.
Product Collection
Butterfly Damper Configurations
Select the blade, sealing and actuation arrangement according to the required control function and operating conditions.

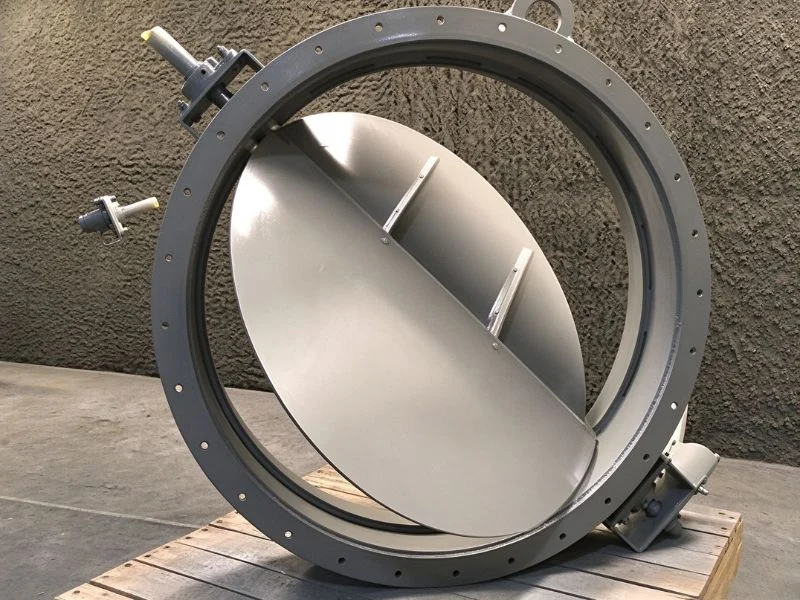

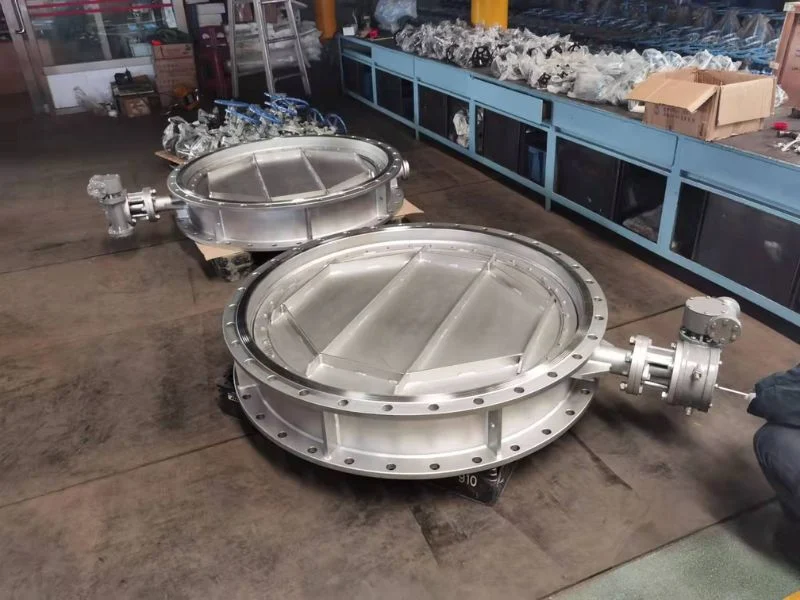

Single-Blade Butterfly Damper
A central rotating blade provides compact isolation or flow regulation for round air and gas ducts.
- Compact face-to-face dimension
- Simple operating mechanism
- Isolation or modulating service

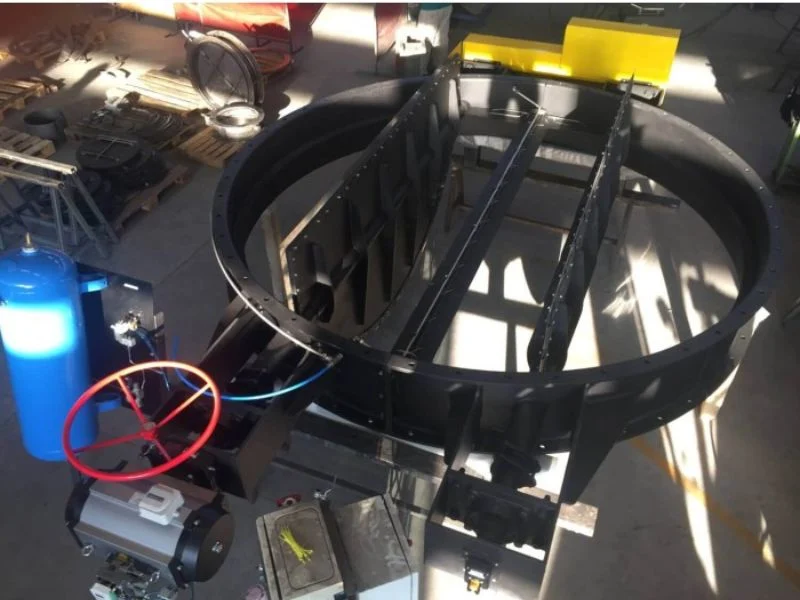

Double-Blade Butterfly Damper
Two sealing blades create an intermediate cavity that can support enhanced isolation and purge arrangements.
- Improved isolation capability
- Purge or sealing-air options
- Suitable for critical gas-path duties

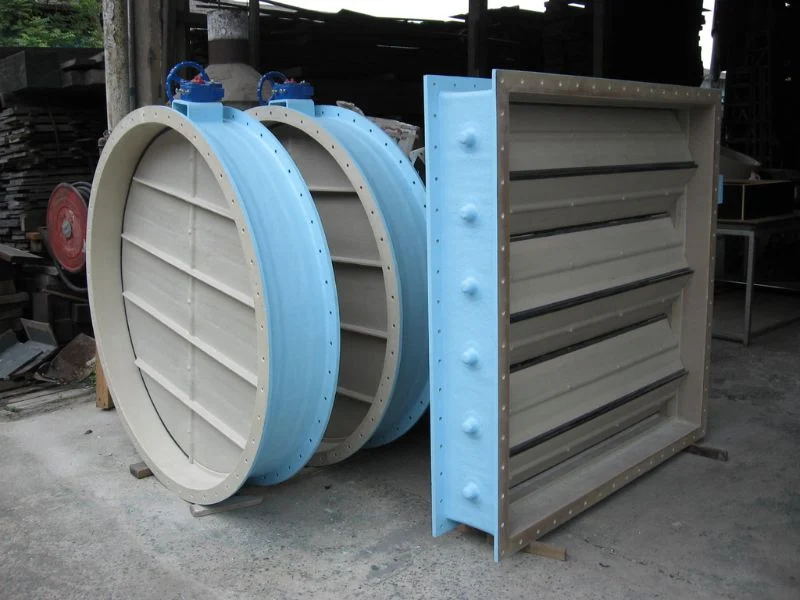

Multi-Blade Damper
Multiple linked blades provide controlled movement across larger duct areas and can reduce operating torque.
- Large duct applications
- Parallel or opposed blade motion
- Regulating and isolation options
Product Comparison
Choose the Appropriate Damper Design
| Damper Type | الوظيفة الأساسية | Typical Application | Main Advantage | Selection Priority |
|---|---|---|---|---|
| Single-blade butterfly damper | Isolation or regulation | Round air and gas ducts | Compact and economical construction | Operating torque and allowable leakage |
| Double-blade butterfly damper | Enhanced isolation | Critical flue-gas and process-gas systems | Intermediate sealing or purge cavity | Required isolation performance |
| Multi-blade damper | Regulation or isolation | Large rectangular or round ducts | Distributed blade area and controlled movement | Duct size and modulation requirement |
| High-temperature damper | Isolation or control | Furnace, kiln and hot-gas systems | Temperature-resistant construction | Temperature, thermal growth and material limits |

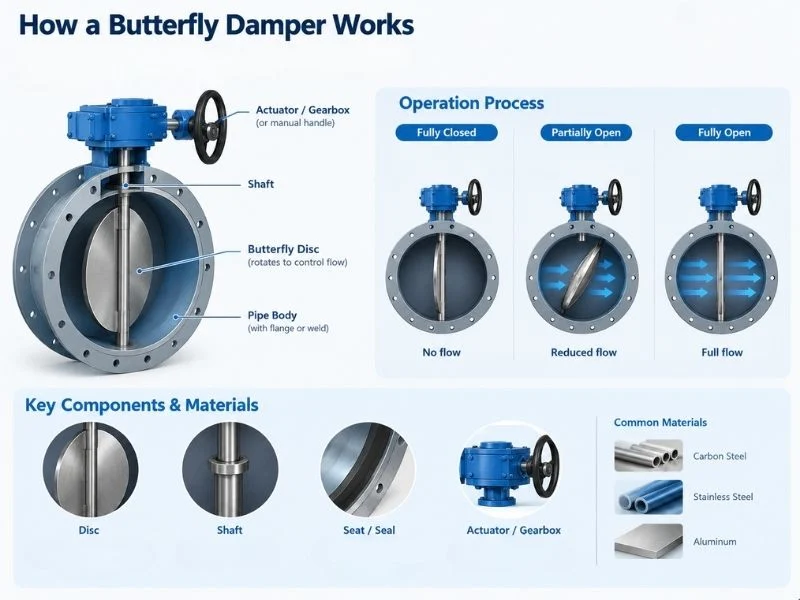

Operating Principle
How a Butterfly Damper Works
- Open position: The blade aligns with the gas path to provide a large available flow area.
- Modulating movement: The actuator rotates the shaft and blade to the required intermediate position.
- Flow regulation: The changing blade angle modifies resistance and controls the system flow.
- Closed position: The blade rotates across the duct and approaches or contacts the sealing arrangement.
- Position feedback: Switches or transmitters can report open, closed or modulating position to the control system.
Butterfly dampers used in gas ducts are not automatically bubble-tight. The required leakage level must be stated during selection so the blade, seal and actuator can be configured correctly.
Flow Conditions
Define gas velocity, pressure, temperature and expected operating positions.
Leakage Requirement
State the acceptable closed-position leakage or required isolation method.
Actuator Sizing
Consider aerodynamic torque, deposits, seal friction and safety margin.
Engineering Options
Configurable Butterfly Damper Specifications
Final dimensions and operating limits depend on the selected design and approved project conditions.
| المعلمة | Available Engineering Options | Selection Basis |
|---|---|---|
| Duct shape | Round, square or rectangular where applicable | Existing duct layout and available installation space |
| Nominal size | Standard and engineered dimensions | Flow rate, velocity and duct dimensions |
| Design pressure | Low-pressure and engineered gas-service designs | Maximum positive or negative duct pressure |
| درجة حرارة التشغيل | Ambient to high-temperature designs | Normal, minimum, maximum and transient temperature |
| Body material | Carbon steel, stainless steel or specified alloy | Gas composition, corrosion and temperature |
| Blade construction | Flat, reinforced or engineered profile | Size, pressure differential and thermal conditions |
| Seal design | Clearance, metal, flexible or purge-assisted arrangement | Temperature and required leakage performance |
| Shaft arrangement | Single shaft, stub shaft or supported construction | Damper size, torque and accessibility |
| اتصال | Flanged, wafer-style or project-specific duct connection | Duct standard and installation arrangement |
| العملية | Manual, electric, pneumatic or hydraulic | Cycle frequency, control mode and site utilities |
التحكم في التدفق
Isolation and Modulating Service
Isolation Damper
An isolation damper normally operates between fully open and fully closed positions.
- Maintenance isolation
- Process-line switching
- Emergency or planned shutdown duties
- Open and closed position indication
- Leakage requirement defined by the project
Modulating Damper
A modulating damper operates at intermediate blade positions to regulate air or gas flow.
- Combustion-air control
- Draft and pressure regulation
- Process-gas balancing
- Positioner or control-signal operation
- Performance evaluated across the operating range

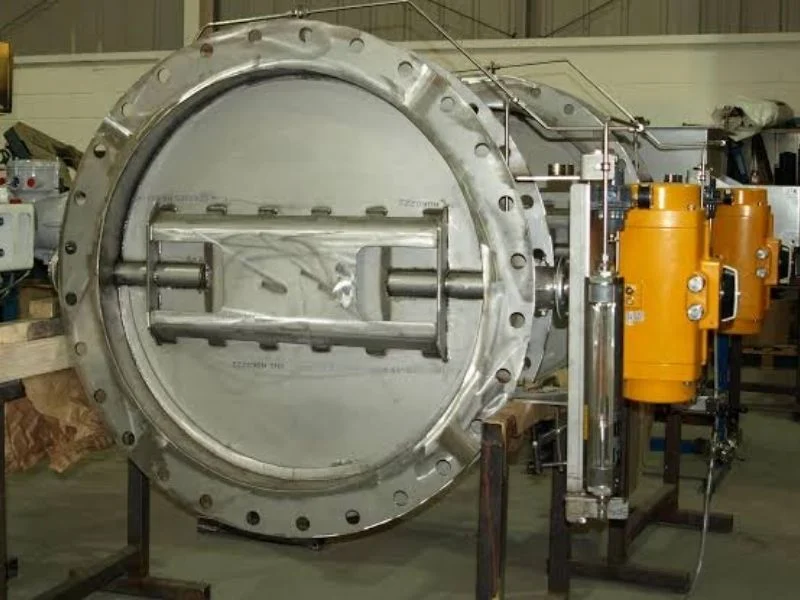

Leakage Performance
Select the Correct Sealing Arrangement
The phrase “closed damper” does not define an acceptable leakage rate. Isolation requirements should be quantified before the damper is manufactured.
- Clearance seal: Suitable where limited closed-position leakage is acceptable.
- Metal contact seal: Improves isolation for compatible temperatures and operating cycles.
- Flexible seal: Supports lower leakage where the seal material is compatible with the gas and temperature.
- Double-blade design: Creates an intermediate cavity for sealing-air or purge arrangements.
- Air-purge arrangement: Establishes a pressure barrier where enhanced isolation is required.
التشغيل
Operating and Control Options
Manual Operation
Lever, gearbox or handwheel operation for infrequent local positioning.
- Simple local control
- Position-locking options
- Suitable for lower cycle frequency
التشغيل الكهربائي
Motorized operation for remote isolation or modulating control.
- Open-close or modulating duty
- Position feedback options
- Project-specific voltage and enclosure
التشغيل الهوائي
Fast and repeatable operation using the plant instrument-air supply.
- Double-acting or fail-position options
- Solenoid and positioner accessories
- Suitable for automated systems
Hydraulic Actuation
High-torque operation for large dampers or demanding service conditions.
- High output torque
- Controlled operating speed
- Engineered hydraulic accessories
Materials & Temperature
Designed for the Gas and Thermal Conditions
- Carbon steel: Common for compatible air and moderate-temperature gas service.
- الفولاذ المقاوم للصدأ: Selected for corrosion resistance or elevated-temperature performance.
- Heat-resistant alloy: Evaluated for demanding furnace, kiln and hot-gas applications.
- Refractory lining: Considered where the metal structure requires additional thermal protection.
- External bearings: Can help separate bearing components from the hot or contaminated gas path.
- Shaft sealing: Selected according to temperature, pressure and acceptable external leakage.
Thermal expansion, distortion and transient temperature conditions must be considered for high-temperature dampers.
Application Matrix
Typical Butterfly Damper Applications
| Industry or System | Gas Service | Damper Function | Key Selection Concern |
|---|---|---|---|
| توليد الطاقة | Flue gas and combustion air | Isolation, balancing or draft control | Temperature, ash and actuator reliability |
| Cement plants | Hot gas and dust-laden air | Process isolation and flow regulation | Abrasion, deposits and elevated temperature |
| Steel and metallurgy | Furnace gas and combustion air | Switching, isolation and control | Thermal cycling and gas composition |
| المعالجة الكيميائية | Process gas and ventilation air | Isolation or modulating control | Corrosion resistance and external leakage |
| التكرير | Combustion air and process exhaust | Isolation and airflow control | Operating safety and sealing performance |
| Waste treatment | Incineration gas and exhaust air | Gas-path control and isolation | Temperature and corrosive components |
| Industrial ventilation | Clean or particulate-laden air | Balancing and equipment isolation | Control accuracy and pressure loss |
Selection Checklist
Information Required for Damper Sizing
Process Conditions
- Gas composition and density
- Normal and maximum flow rate
- Operating and design temperature
- Positive or negative design pressure
- Gas velocity and particulate loading
- Corrosive, abrasive or sticky components
Mechanical & Control Data
- Duct shape and internal dimensions
- Flange drilling or connection details
- Required isolation or modulation function
- Maximum acceptable closed-position leakage
- Available electric, pneumatic or hydraulic utility
- Fail position, operating time and feedback signals
Manufacturer Support
From Duct Data to Final Damper Configuration
1. Application Review
We review the gas, temperature, pressure, duct size, control function and leakage requirement.
2. Mechanical Design
The body, blade, shaft, supports and connection arrangement are configured for the service.
3. Actuator Selection
Required torque, operating speed, fail position and control accessories are evaluated.
4. Documentation
Approved drawings, technical data and inspection documents are prepared for the order scope.

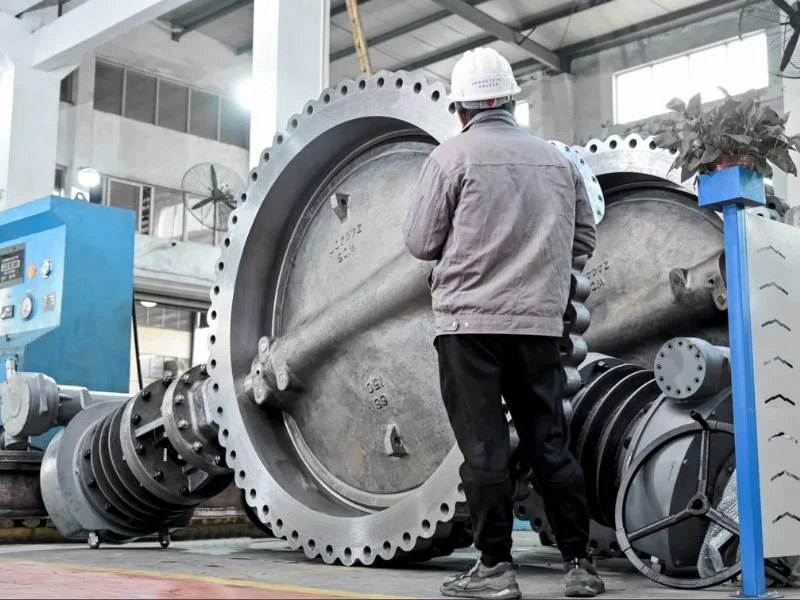

Quality Control
Inspection Before Shipment
Inspection and testing are completed according to the approved specification, damper design and purchase-order requirements.
- Material and component verification
- Dimensional and visual inspection
- Blade, shaft and bearing alignment checks
- Full-stroke operational testing
- Actuator, switch and position-feedback verification
- Seal and leakage testing where specified
- Coating, marking and packing inspection
- Final documentation review
Installation & Maintenance
Protect Alignment and Operating Performance
تثبيت
- Verify the specified gas-flow direction
- Prevent duct loads from distorting the body
- Maintain access to bearings and actuator
- Check blade clearance before startup
- Allow for thermal movement where required
Commissioning
- Remove construction debris from the duct
- Confirm full open and closed travel
- Set switches and position feedback
- Verify actuator direction and control signal
- Observe movement under operating conditions
الصيانة
- Inspect deposits and blade condition
- Check bearings, seals and linkage
- Verify actuator mounting and fasteners
- Exercise infrequently operated dampers
- Investigate abnormal torque or vibration
Send Us Your Butterfly Damper Data
Provide the duct dimensions, gas composition, flow rate, pressure, temperature, leakage requirement, operating function and actuator preference. Our engineers will help configure a suitable butterfly damper.
الأسئلة المتداولة
Butterfly Damper FAQ
What is an industrial butterfly damper?
It is a rotating-blade device used to isolate or regulate air, flue gas and process-gas flow inside an industrial duct.
Is a butterfly damper the same as a butterfly valve?
No. Dampers are generally designed for air and gas ducts, often at lower pressures and larger sizes. Butterfly valves are normally designed according to liquid or pressurized piping requirements.
Can a butterfly damper provide zero leakage?
A standard single-blade damper normally permits some leakage. Very low leakage or positive isolation requires a suitable seal, double-blade system or purge arrangement.
Can the damper regulate gas flow?
Yes. A modulating actuator can position the blade between fully open and fully closed. Control performance depends on system resistance, blade design and operating range.
Which actuator should be selected?
The choice depends on required torque, operating speed, control mode, cycle frequency, fail position and available plant utilities.
Can the damper handle high-temperature gas?
High-temperature designs are available. The materials, shaft arrangement, bearings, seals, insulation and thermal expansion must be evaluated for the stated temperature.
Can BCST manufacture a custom-size butterfly damper?
Yes. Round, square and rectangular configurations can be evaluated using the project duct dimensions, connection details and service conditions.
What information is required for quotation?
Provide duct dimensions, gas composition, flow, pressure, temperature, particulate loading, leakage requirement, control function, connection details and actuator preference.
