المواصفات التقنية والاختيار

Comprehensive technical data and interactive tools to help you select the perfect valve for your application.

Material Selection Guide

Choose the right material for your application based on temperature, pressure, and media compatibility.

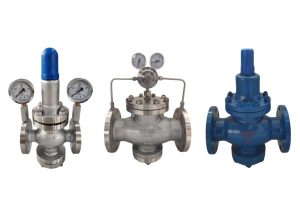

صمامات تخفيض الضغط

Self-operated valves designed to reduce higher upstream pressure to constant lower downstream pressure

Series:

BCST-PRV-3000

Pressure Range:

ASME Class 150 – 2500

Size Range:

1/2″ to 24″

Accuracy:

±1% of setpoint

Back Pressure Regulators

Maintain constant upstream pressure by controlling flow out of the system

Series:

BCST-BPR-4000

Pressure Range:

Up to 6000 psi

درجة الحرارة:

-196°C to +650°C

Response Time:

< 1 second

Valve Types & Features

نوع الصمام	Operating Principle	الميزات الرئيسية	التطبيقات
Direct-acting PRV	محملة بنابض	Simple, reliable, low cost	Water systems and general services
Pilot-operated PRV	Pilot sensing	High precision, large capacity	Steam systems and process industries
Dome-loaded PRV	Gas pressure loaded	Precise control, remote operation	Chemical processing, oil and gas

Dimensional Data

Interactive dimensional data table based on GB/T 12221-2005 standards.

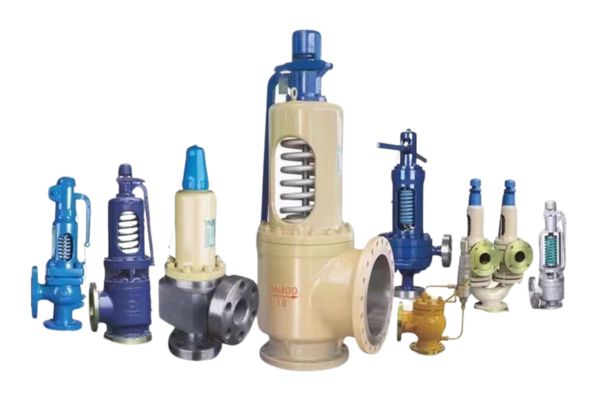

صمامات تخفيف الضغط

Safety devices that automatically open to discharge excess fluid or gas when system pressure exceeds setpoint

Series:

BCST-PRV-5000

Set Point Range:

15 to 6000 psi

Capacity:

Up to 1,000,000 lb/hr

Certifications:

ASME VIII, PED

صمامات الأمان

Used for compressible fluids (gases, vapors, steam) with quick opening characteristics

Series:

BCST-SV-6000

Blowdown:

2-7% of set pressure

المواد:

Carbon steel, stainless steel

الاختبار:

100% tested

Relief Valve Specifications

المعلمة	Standard PRV	Pilot Operated	صمام الأمان
Set Point Accuracy	±3%	±1%	±3%
Overpressure	10%	5%	3%
Blowdown	7-10%	2-5%	2-7%
Reseal Tightness	جيد	ممتاز	جيد

أجهزة إرسال الضغط

Convert pressure readings into electrical signals for continuous monitoring and control

Series:

BCST-PT-7000

Accuracy:

±0.075% of span

Output:

4-20mA, HART, Foundation Fieldbus

Environmental Rating:

IP66/IP67

Pressure Switches

Simple on/off control devices that activate electrical contacts at specific pressure setpoints

Series:

BCST-PS-8000

Set Point Range:

0.5 to 6000 psi

Repeatability:

±0.5%

Electrical Rating:

250VAC, 10A

أجهزة إرسال الضغط

Gauge Pressure

Measures pressure relative to atmospheric pressure • General industrial applications • Process monitoring • Pump discharge pressure

Absolute Pressure

Measures pressure relative to perfect vacuum • Weather monitoring • Altitude measurement • Vacuum processes

الضغط التفاضلي

Measures difference between two pressure points • Flow measurement • Level measurement • Filter monitoring

Valve Types & Features

نوع الصمام	Operating Principle	الميزات الرئيسية	التطبيقات
Direct-acting PRV	محملة بنابض	Simple, reliable, low cost	Water systems, general service
Pilot-operated PRV	Pilot sensing	High precision, large capacity	Steam systems, process industries
Dome-loaded PRV	Gas pressure loaded	Precise control, remote operation	Chemical processing, oil & gas

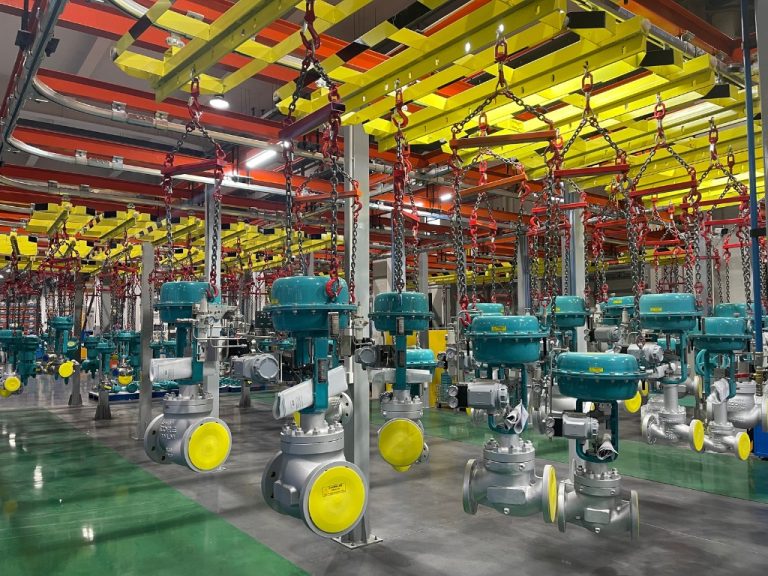

How Can You Master Pressure Control for Ultimate Safety and Efficiency?

Unstable pressure is a silent threat in your pipelines. It can trigger alarms, halt production, and even cause catastrophic equipment failure. This constant risk erodes profits, threatens safety, and complicates every aspect of your operation.

Mastering pressure control involves a systematic approach: selecting the correct final control element—either a regulator or a control valve—and pairing it with the right pressure instrumentation to create a stable, responsive, and safe system that protects your assets and optimizes performance.

From my earliest days watching my father build his valve business, I understood that pressure was the invisible force that drove everything. He used to say, “Pressure is like a powerful river. You can’t just dam it up; you have to build channels to guide its energy safely.” That lesson has been a cornerstone of my career. It was reinforced dramatically in a conversation I had with Hassan, a brilliant chief engineer responsible for designing entire petrochemical plants. He told me about a harrowing incident at a high-pressure polymerization reactor. A seemingly minor pressure fluctuation, caused by an improperly selected control device, led to an off-spec batch of product. The financial loss was over a quarter of a million dollars, but more importantly, it triggered a plant-wide safety review. Hassan explained that the root cause wasn’t a faulty valve but a misunderstanding of the system’s dynamic needs. This story illustrates a critical truth: effective pressure control isn’t just about individual components. It’s about designing a complete, intelligent system where every part works in harmony to tame that powerful river.

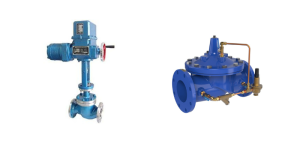

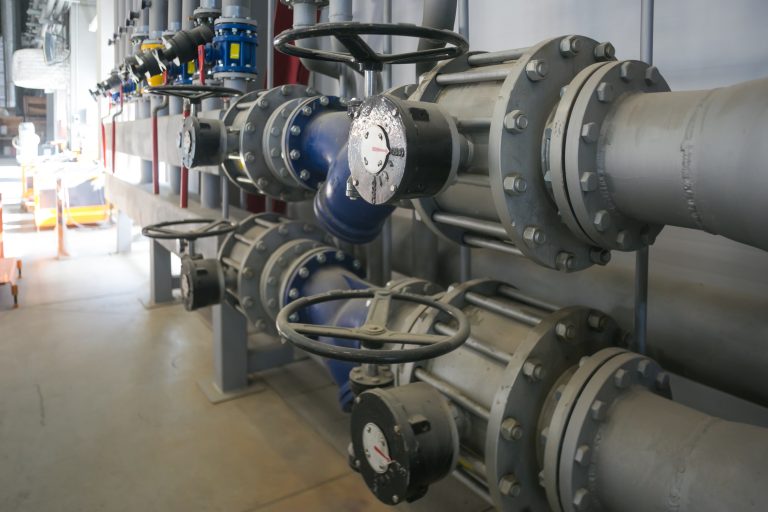

Regulator vs. Control Valve: Are You Using the Right Tool for the Job?

Are you specifying a complex, expensive control valve system for a simple pressure reduction task? Or worse, are you relying on a simple regulator for a dynamic process that demands precision, leading to instability and poor performance? This single choice can define your system’s reliability and cost.

A pressure regulator is a stand-alone mechanical device that automatically maintains a constant downstream pressure. A control valve is an actuated valve that modulates flow as part of a larger control loop, directed by an external controller to precisely manage dynamic process conditions.

Choosing between a regulator and a control valve is one of the most fundamental decisions in fluid system design. The core difference lies in their intelligence and autonomy. A pressure regulator is the definition of “set and forget.” It’s a self-contained, mechanical marvel that uses the energy of the fluid itself to operate. You turn a screw to set your desired outlet pressure, and internal springs and diaphragms do all the work, automatically adjusting to changes in inlet pressure to hold the outlet steady. It’s like setting the cruise control in your car on a long, empty highway—it maintains a constant speed with no further input. This makes them perfect for steady-state applications, like supplying instrument air or reducing city water pressure to a building.

A control valve, however, is part of an intelligent team called a “control loop.” It doesn’t think for itself; it takes orders. The loop consists of:

1. The Sensor (Pressure Transmitter): This is the “eyes” of the system, constantly measuring the process pressure.
2. The Controller (PLC or DCS): This is the “brain,” comparing the transmitter’s reading to the desired setpoint and calculating the necessary correction.
3. The Final Control Element (The Control Valve): This is the “hands,” receiving a signal from the brain and physically moving to adjust the flow.

This loop provides the dynamic responsiveness needed for complex processes where pressures must change based on reactions, temperatures, or flow rates—like the city driving to the regulator’s highway cruise control.

A critical, often overlooked, difference is their failure mode. Most regulators are designed to fail in the open position. A control valve system can be engineered to fail-safe. You can specify it to fail-open (e.g., for a cooling water line to prevent overheating), fail-closed (e.g., for a chemical injection line to prevent overdose), or fail-in-last-position to maintain the status quo during a signal loss. Hassan insists that analyzing the safest failure state is the first question his team answers when designing any critical control loop.

Direct-Operated vs. Pilot-Operated: Which Regulator Fits Your Flow?

Is your system experiencing frustrating pressure drops whenever demand increases? Your direct-operated regulator might not be able to handle the load, causing process instability and performance issues that a more advanced design could easily solve.

Use a direct-operated regulator for low-flow, stable applications where simplicity is key and minor pressure droop is acceptable. Choose a more sensitive pilot-operated regulator for high-flow, dynamic systems that demand tight, accurate pressure control.

Once you’ve decided a regulator is the right tool, you have another important choice to make. The difference between direct-operated and pilot-operated models is all about sensitivity and capacity.

A direct-operated pressure regulator is the essence of simplicity. It works on a straightforward force balance. A spring pushes down on a diaphragm, trying to open the valve, while the outlet pressure pushes up on the other side of the diaphragm, trying to close it. When the forces are balanced, the valve holds a steady position. This design is robust, inexpensive, and fantastic for simple, low-flow applications. Its primary weakness, however, is a phenomenon called “droop” or “offset.” As the flow demand increases, the valve has to open wider, which requires the spring to expand slightly. For the spring to expand, the balancing pressure from the outlet must decrease. Therefore, higher flow results in slightly lower pressure.

A pilot-operated regulator is a far more sophisticated, two-stage device designed to overcome this limitation. Think of it as a small, smart valve controlling a large, powerful one. A highly sensitive “pilot” stage senses the outlet pressure with extreme accuracy. Instead of trying to directly move the large main valve, this pilot uses the high inlet pressure as a power source, precisely directing it to open or close the main valve diaphragm. This hydraulic or pneumatic amplification means the pilot only has to do a tiny amount of work to control a massive amount of flow. The result is a regulator that can handle huge flow rates with incredible accuracy, maintaining a nearly flat pressure curve even as demand swings wildly. Hassan exclusively uses pilot-operated regulators for critical utilities like the main fuel gas feed to a plant’s power-generating turbines, where even a small pressure droop could affect power stability.

مميزة	Direct-Operated Regulator	Pilot-Operated Regulator
تصميم	Simple, single-stage, spring-balanced	Complex, two-stage, pressure-amplified
الدقة	Good, but subject to pressure “droop”	Excellent, very little droop
Flow Capacity	Lower to moderate	Moderate to very high
سرعة الاستجابة	Slower	Faster
الأفضل لـ	Instrument air, point-of-use regulation, simple tasks	Main headers, high-demand systems, critical processes

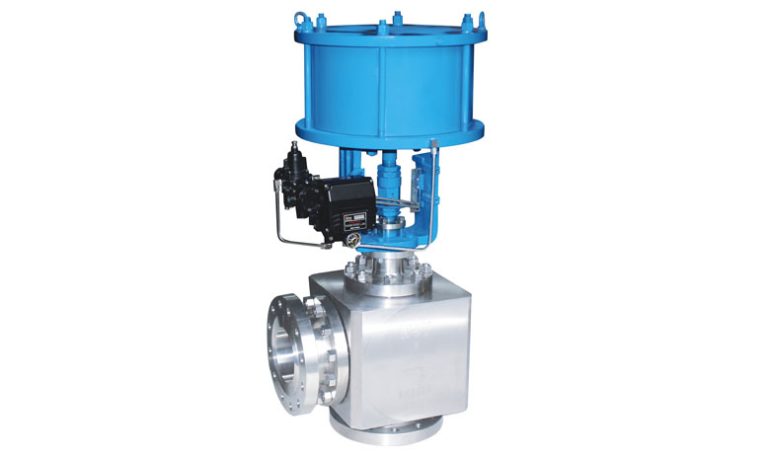

Control Valve Selection: How Do You Tame a Severe Service Application?

Is your control valve chattering, vibrating, or failing prematurely? Choosing a valve without considering the physics of your process fluid can lead to catastrophic damage from cavitation or flashing, rendering your entire control strategy useless and creating a severe safety hazard.

Proper control valve selection goes beyond sizing. It requires matching the valve’s characteristic to the process need, selecting robust materials, and, most critically, specifying a trim design that can withstand the destructive forces of cavitation and flashing.

Selecting a control valve for a “severe service” application—one with high pressure drops or high temperatures—is a true engineering challenge. It’s where my discussions with Hassan always get deeply technical. While correct sizing (calculating the flow coefficient, Cv) is the first step, it’s just the ticket to entry. The real test is surviving the physics of the process.

The two biggest enemies are cavitation and flashing.

• Flashing: This occurs when a liquid enters the valve, and the pressure drop is so large that the pressure falls below its vapor pressure. The liquid boils and “flashes” into a vapor, and it remains a vapor as it exits the valve. This two-phase flow (liquid and gas) can be highly erosive, like a sandblaster.
• Cavitation: This is even more destructive. The liquid pressure drops below its vapor pressure, creating vapor bubbles, but then the pressure recovers downstream of the valve’s narrowest point (the vena contracta). This pressure recovery violently collapses the bubbles. This implosion creates incredible localized pressure spikes (up to 100,000 PSI) and microjets that act like tiny jackhammers, chipping away at the valve’s internals and downstream piping. The noise, vibration, and damage can be immense.

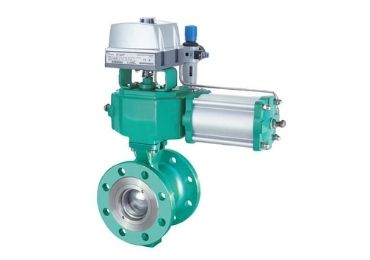

The solution lies in the heart of the valve: the trim. For these applications, a standard trim won’t survive. We must use specially engineered severe service trims:

• Anti-Cavitation Trim: This trim is designed to prevent the damaging collapse of bubbles. It often uses a multi-stage design, with a series of restrictive paths that force the pressure to drop in several small steps instead of one large one. This keeps the pressure from ever falling below the liquid’s vapor pressure.
• Hardened Trim: For flashing service, where the two-phase flow is unavoidable, the trim components (plug, seat, cage) are made from extremely hard materials like Stellite or Tungsten Carbide to resist the erosive wear.

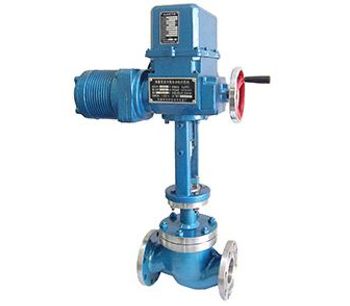

For one of his boiler feedwater applications, Hassan specified a globe valve with a multi-stage anti-cavitation trim made from solid Stellite. It was an expensive valve, but as he said, “The cost of the right valve is a fraction of the cost of one unplanned shutdown.”

Instrument Selection: Are You Giving Your System the Right Eyes?

Are you flying blind, relying on an operator’s occasional glance at a gauge for a critical process? Or are you over-engineering with expensive transmitters where a simple switch would suffice? Using the wrong instrument creates visibility gaps or unnecessary costs, undermining your entire control philosophy.

Effective instrumentation involves a tiered approach: use pressure gauges for local visual indication, pressure switches for automated on/off control or alarms, and pressure transmitters for continuous, precise data feedback to a control system.

A control system is only as good as the information it receives. The valves and regulators are the hands, but the instruments are the eyes and reflexes. Choosing the right “eyes” is essential for both control and safety. I learned this lesson the hard way early in my career. A client wanted to save money on a cooling water system for a large motor. They opted for a simple pressure gauge instead of a pressure switch. An operator was supposed to check it hourly. One day, the pump’s intake clogged, pressure dropped, and no one noticed for nearly two hours. The motor overheated, causing thousands in damage. A simple $200 pressure switch wired to an alarm could have prevented the entire incident.

Here’s how to match the instrument to the task:

• Pressure Gauges: These are the most basic and essential pressure instruments. They provide a direct, visual reading of the pressure at a specific point. Their role is purely informational for operators making their rounds. They are perfect for non-critical monitoring points, like the inlet and outlet of a filter or on a pump discharge, to provide a quick health check. You can’t control with a gauge, but you can’t troubleshoot without one.
• Pressure Switches: A switch is a simple decision-maker. It’s an on/off device that triggers an electrical contact when the pressure crosses a predetermined setpoint. Its job is not to measure the pressure, but to react to it. This makes it ideal for safety interlocks (shutting down a compressor on high pressure), starting a backup pump on low pressure, or activating a high-pressure alarm light and horn. They are the simple, reliable workhorses of automated safety.
• Pressure Transmitters (or Transducers): This is the most sophisticated of the three. It is a true measurement device that senses the pressure and converts it into a continuous electrical signal (typically a 4-20 mA analog signal). This signal is proportional to the measured pressure and is sent to a control system (PLC/DCS). This continuous, high-resolution data is what allows a control valve to make the tiny, constant adjustments needed for precise process control. You cannot have a modern, responsive control loop without a reliable transmitter.

For any given system, you will often find all three working together. Hassan’s designs will have a pressure transmitter feeding the main control loop, a pressure switch acting as a backup high-pressure trip, and a pressure gauge right next to it so an operator can visually verify the reading. This layered approach creates a system that is not only controllable but also robust and safe.

خاتمة

Mastering pressure control is an exercise in holistic design. It demands selecting the right tool—a simple regulator or a dynamic control valve—and giving it the right senses through carefully chosen gauges, switches, and transmitters. This synergy creates a system that is safe, efficient, and built to last.
