¿Mi mirilla se corroerá con el tiempo?

Aunque mirillaes are inherently resistant to corrosion, they can still begin to erode under certain circumstances, particularly if the wrong material is specified for the application.  As a result, corroding sight glasses become increasingly vulnerable to failure, which can be sudden, catastrophic, and damaging. In addition, it can harm your system, put workers at risk, and cause unplanned downtime. To help prevent a costly disaster, it’s essential to comprehend the risks of sight glass corrosion and failure and take the necessary steps to prepare for them.

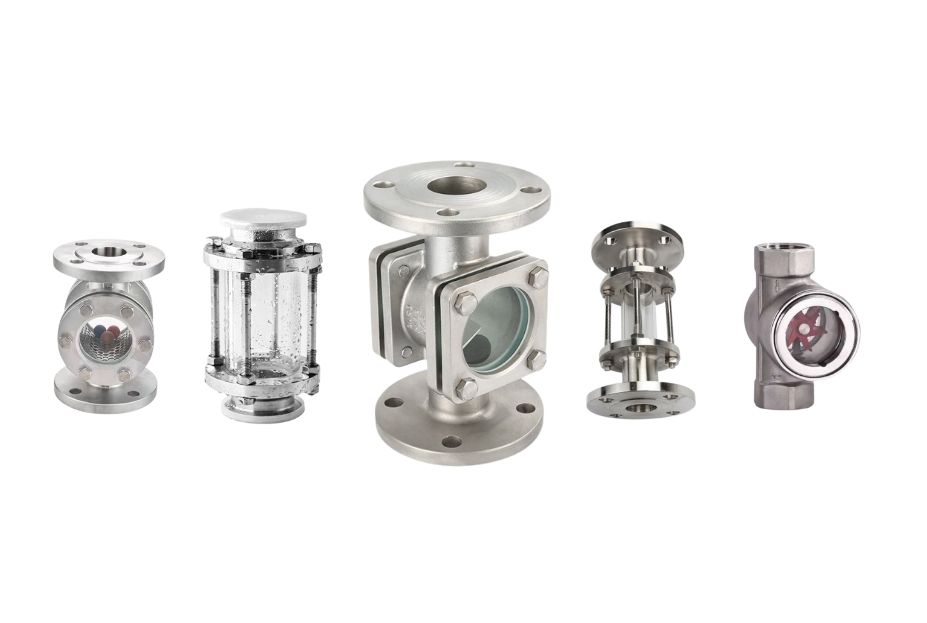

A mirilla, also called a sight window or port is an essential tool for observing a closed system’s interior. Properly installed and spaced to your unique application, sight glass can be incredibly resistant to extreme temperatures, pressure fluctuations, and even corrosion. However, certain conditions can put sight glasses at an even greater risk for decay and damage. These include:

• Exposición a productos químicos agresivos.
• Contacto con agua sobrecalentada.
• Limpieza inadecuada o abrasiva.
• Contacto continuo con medios de proceso gruesos.
• Las temperaturas suben/bajan rápidamente.
• Sobrepresurización.

Aside from these hazards, your sight glass is at even greater risk of failure or corrosion if it is not correctly installed, handled correctly during operation, or designed for the wrong application.  Glass that has been removed from service must never be reused, so using an old sight glass for a new operation can also cause issues. Even if an old sight glass had seen little use, the stresses and strains of the installation process could cause tiny, microscopic flaws in the material. While these invisible cracks won’t be seen with a visual inspection, they can significantly weaken the structural integrity of the glass, leaving it susceptible to breakage.  Always inspect any sight glass for signs of wear before installation to minimize the chance of damage.

El círculo vicioso de la corrosión y la rotura de las mirillas puede ser difícil de romper. La corrosión debilita el cristal, haciéndolo más susceptible a fracturas y roturas, mientras que una grieta puede socavar significativamente el cristal, dejándolo abierto a una corrosión y debilitamiento más importantes. Este ciclo puede ser difícil de romper, pero un mantenimiento y reparación adecuados pueden ayudar a evitar que se produzca en primer lugar.

The consequences of a failed sight glass can be catastrophic. When glass cracks at five miles per second, thick chunks and glass shards are ejected faster than the fastest fighter jets. This can easily damage your system, exposing it to the surrounding environment and rendering it inoperable. In addition, any product or materials inside your equipment can be ruined. Don’t let a failed sight glass lead to disaster – take the necessary steps to ensure your equipment and materials are safe.

Cómo evitar la corrosión y el fallo de Mirillaes

La selección, instalación y mantenimiento adecuados de una mirilla son esenciales para salvaguardar su sistema de posibles fallos. Elegir la mirilla adecuada para su sistema es el primer paso para garantizar su seguridad. La instalación correcta de la mirilla y su mantenimiento mediante inspecciones periódicas también son fundamentales para evitar averías peligrosas.

When selecting the correct type of glass for your project, soda lime glass is often the first choice. However, it has its limitations regarding temperature and pressure tolerance – tempered soda lime should not be used in applications above 300°F. Therefore, for applications requiring higher temperature and pressure specifications, it is choosing a different type of glass.

Gracias a sus especificaciones químicas y mecánicas únicas, el vidrio de borosilicato es la elección preferida para los procesos químicos, biotecnológicos y farmacéuticos. Con capacidades de temperatura de hasta 572 °F, resistencia a la corrosión de amplio espectro, baja expansión térmica y excelente transparencia y visibilidad, el vidrio de borosilicato es la elección perfecta para cualquier aplicación. Tanto si necesita mezclar, medir, almacenar o transportar productos químicos, el vidrio de borosilicato es ideal para obtener el máximo rendimiento.

Para aplicaciones que superan los 572 °F, los ingenieros de procesos confían en los materiales de cuarzo y zafiro por su resistencia superior a la temperatura y su durabilidad. Además, estos materiales ofrecen un rendimiento fiable a temperaturas extremas, lo que los hace ideales para procesos industriales que requieren resistencia al calor.

Soda lime glass’s chemical degradation or corrosion occurs much more rapidly in slightly acidic (pH 6) and alkaline (pH 10) conditions. As a result, soda lime glass is 10 times more vulnerable to degradation than borosilicate glass—so taking the proper precautions to protect it from these environmental conditions is essential.

For more information on the physical properties of borosilicate glass, see to ASTM E438 “Standard Specification for Glasses used in Laboratory Apparatus” and DIN 7079.  The former provides information about the glass’s optical, thermal, electrical, and mechanical properties, while the latter outlines whether the glass can withstand high temperatures, high pressure, and corrosive chemicals.

Además de su impresionante durabilidad térmica y química, el vidrio de borosilicato también es famoso por su notable resistencia mecánica. Con una resistencia a la compresión de hasta 200.000 libras por pulgada cuadrada y una resistencia a la tracción de más de 10 veces la del acero, el vidrio de borosilicato es uno de los materiales de vidrio más resistentes.

La creciente elección de vidrios pretensados mecánicamente puede ayudarle a evitar los problemas comunes asociados a las ventanas estándar. Con el vidrio pretensado, puede evitar los problemas comunes como la rotura, la distorsión y el empañamiento que suelen producirse con las ventanas estándar, lo que le proporciona una mayor tranquilidad y una mejor visibilidad. Además, el vidrio pretensado mecánicamente proporciona un mayor nivel de seguridad y protección.

A mechanically pre-stressed sight glass consists of a stainless-steel ring that applies a uniform, radial compression to a disc of borosilicate glass. This unique design ensures greater strength and durability, allowing the sight glass to withstand more complex impacts and greater stress forces than other sight glasses. The radial compression also prevents tensile stress from affecting the glass so you can rely on its performance during challenging conditions. Invest in this high-quality sight glass, and you’ll have a dependable, long-lasting solution.

Once you’ve selected the optimal design for your operation, double-check that the glass is thick enough to handle the pressure of your application. Failure to do so can result in glass breakage, risking your process. To avoid this, it’s essential to ensure the glass can handle the maximum internal pressure it will be subjected to.

When considering a sight glass window, the metal ring’s corrosion must be considered. Therefore, system designers typically specify the type of stainless steel required to handle harsh caustic or acidic process mediums. In some cases, the sight glass can be mounted so that the metal ring is not directly exposed to the process fluid – meaning that lower-cost steel may be used.

Proper training is required for anyone who works with or near a sight glass, regardless of the task or the environment. Even the slightest bump from a tool or scratch from a gloved hand can weaken the glass, so it’s essential to ensure that all personnel is adequately trained in best practices. Furthermore, harsh cleaning agents can cause premature corrosion, making it even more important to ensure anyone who is working on or near the sight glass is aware of the potential hazards. With the proper training, you can ensure that your sight glass system runs safely and effectively.

It’s incredibly simple to install, and the less contact you have with your sight glass, the better it will perform. In addition, regular cleaning and maintenance can help keep your sight glass functioning optimally and ensure years of reliable service.
