Where to Use Ball Valves with Unions: 5 Key Applications

The ability to control fluid flow reliably is fundamental to any plumbing or process system. Ball valves are a popular choice for their quick shut-off and durability. However, the true genius in system design often comes down to anticipating future needs – specifically, maintenance and replacement. This is where ball valves with unions prove their invaluable worth. According to Intel Market Research, Union Ball Valves are highly effective at main control points for golf courses and large-scale farms where irrigation downtime during growing seasons directly impacts crop yields.

1. Main Water Shut-off Valves (Residential & Commercial)

Your main water shut-off valve is arguably the most critical valve in any building. When a catastrophic break occurs, or even for routine plumbing work, the ability to quickly and reliably turn off your entire water supply is paramount. However, these valves can eventually fail or wear out.

Installing a ball valve with a union as your main shut-off provides:

• Rapid Replacement: If the main shut-off valve itself fails, a union allows for its quick removal and replacement without having to cut into the main water line, minimizing service interruption.
• Reduced Damage Risk: Less intrusive work means less chance of damaging surrounding pipes or property.

This application highlights the core benefit of serviceable valves: making unexpected repairs quick and straightforward. For more on the strategic advantages, read Why Your Plumbing System Needs Serviceable Valves: 3 Key Benefits.

2. Connections to Water Heaters, Boilers, and Tanks

Appliances that heat or store water have a finite lifespan and frequently require maintenance. Water heaters, boilers, storage tanks, and even expansion tanks will eventually need to be replaced, serviced, or removed.

Placing ball valves with unions on the hot and cold water inlet/outlet lines of these appliances:

• Effortless Appliance Swaps: Allows for easy disconnection of the old appliance and connection of a new one without needing to re-do significant plumbing work.
• Simplified Draining/Flushing: Facilitates the isolation and draining of the appliance for maintenance or winterization.

This saves immense time and mess, eliminating the need to cut and re-solder or re-glue pipes every time an appliance reaches the end of its service life.

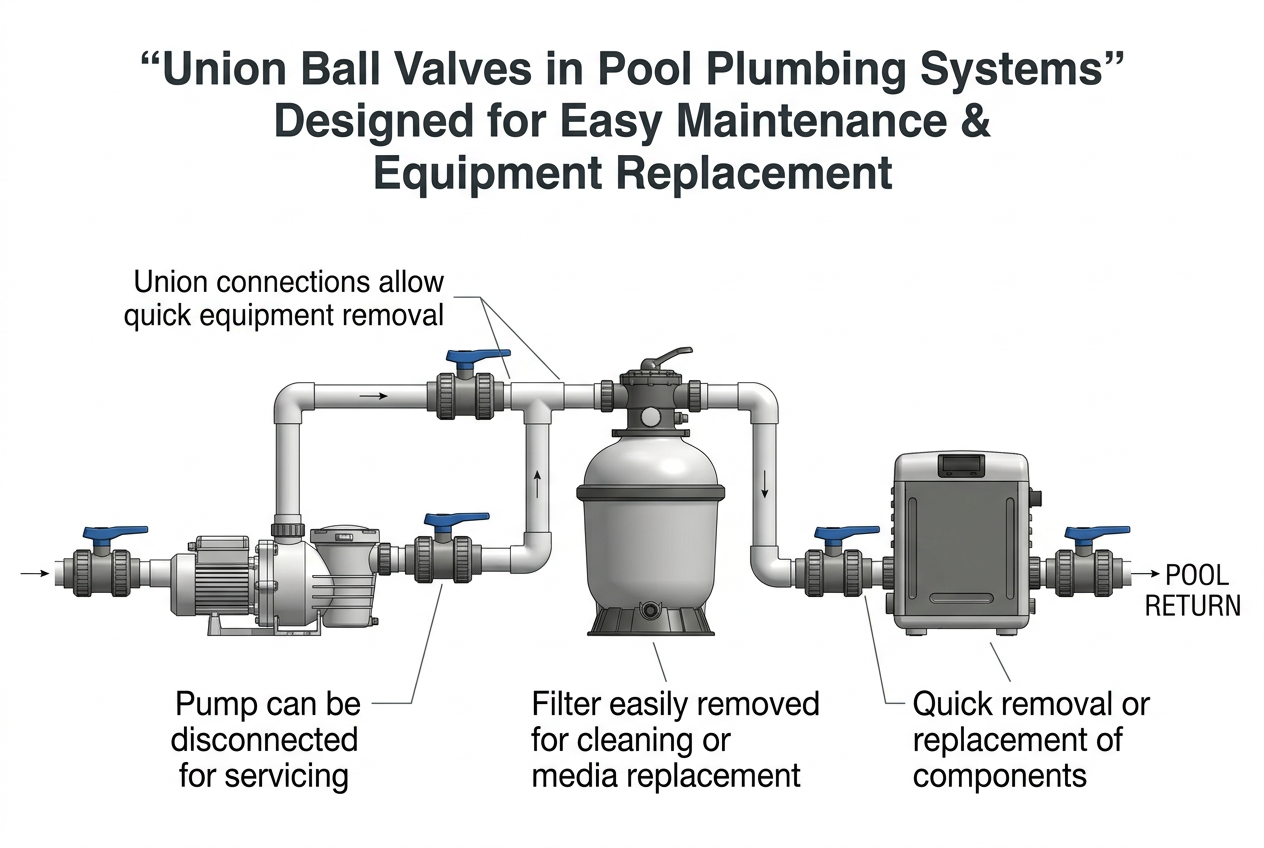

3. Pool and Spa Equipment Plumbing

Pool and spa systems are a prime example where union ball valves are not just recommended but often considered standard practice. Pumps, filters, heaters, and chlorinators all require seasonal maintenance, cleaning, or eventual replacement.

Key benefits in pool/spa plumbing:

• Easy Equipment Removal: Pumps can be quickly disconnected for servicing, filters can be easily removed for media replacement, and heaters can be bypassed or swapped.
• Winterization Flexibility: Allows for simple draining and disconnection of specific components to prevent freeze damage.
• Quick Diagnostics: Helps isolate individual pieces of equipment for troubleshooting.

Often, true union ball valves are favored here for their ability to completely remove the valve body if needed. You can learn more about this distinction in True Union vs. Standard Ball Valves: Which Should You Choose?

4. Water Treatment Systems (Softener, Filter, RO Units)

Home and commercial water treatment systems, including water softeners, whole-house filters, and reverse osmosis (RO) units, all require periodic maintenance, media replacement, or filter changes. These often involve taking the unit offline or bypassing it.

Ball valves with unions simplify these tasks by:

• Easy Bypass & Isolation: Allows the unit to be isolated from the main water supply for servicing without interrupting water flow to the rest of the property (via a bypass loop).
• Simplified Unit Replacement: When the unit needs to be replaced entirely, the union connections make removal and installation straightforward.

This ensures homeowners and maintenance staff can perform necessary service quickly and efficiently, maintaining water quality with minimal disruption.

5. Industrial Process Lines (Critical Equipment, Aggressive Media)

In industrial settings like chemical plants, food processing, or manufacturing facilities, downtime equates to significant financial losses. Valves controlling flow to critical equipment such as reactors, heat exchangers, or dedicated pumps are often subject to harsh conditions (high temperatures, corrosive media, frequent cycling) leading to wear.

For these demanding environments, ball valves with unions are essential:

• Minimal Production Interruptions: Enables rapid valve replacement in process lines, drastically cutting down on costly downtime.
• Safety During Maintenance: Isolating and removing a valve with a union is often safer as it avoids spark-generating pipe cutting or complex rigging in hazardous areas.
• Flexibility for Upgrades: Allows for quick integration of new sensors, bypass loops, or process equipment.

The long-term operational efficiency and safety benefits in these scenarios far outweigh any initial cost difference.

Conclusion: Build for Today, Maintain for Tomorrow

From the smallest residential plumbing repair to large-scale industrial operations, the strategic use of ball valves with unions is a testament to foresight in design. They transform potential maintenance headaches into simple, efficient tasks, saving time, money, and stress in the long run. By incorporating these serviceable components, you’re not just installing a valve; you’re building a system that’s ready for its inevitable future of inspection, repair, and upgrade.
