BCST Steam Valve: Engineered for Maximum Reliability in Extreme Temperature & Pressure Applications

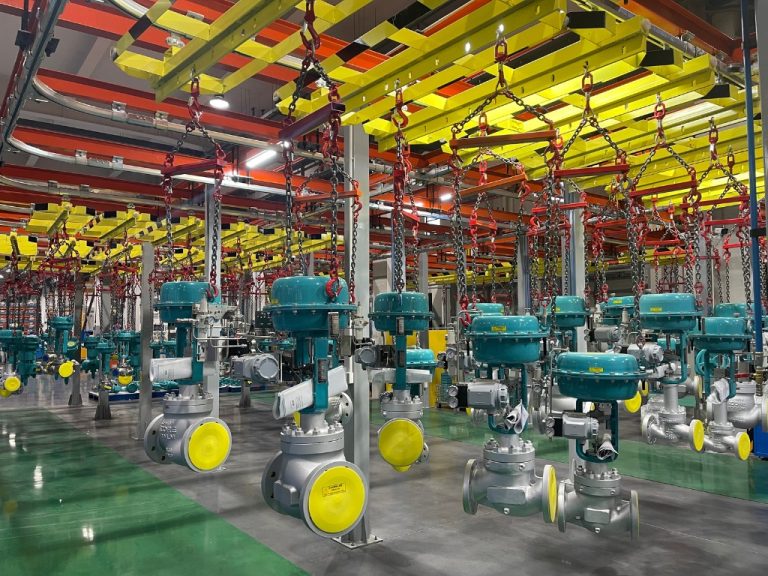

La amplia gama de válvulas de vapor de BCST es la mejor respuesta a sus necesidades. BCST es un fabricante de válvulas de vapor cualificado y experimentado. Como empresa con certificación ISO, BCST cuenta con un sólido patrimonio de expertos y personal informado con más de 20 generaciones de experiencia en producción y exportación.

Válvula de control de vapor

La válvula de control de vapor es el aire comprimido como fuente de energía, con el cilindro como actuador, y con la ayuda de un posicionador de válvula eléctrica, convertidor, válvula solenoide, válvula de mantenimiento de posición, y otros accesorios para accionar la válvula. Realiza la señal de control del sistema de control de automatización industrial. Se utiliza para completar el ajuste de varios parámetros de proceso, como el medio, el caudal, la presión y la temperatura de la tubería.

Válvula de bola de vapor

Las válvulas de bola de vapor se utilizan en tuberías de vapor, que se utilizan principalmente para cortar, distribuir y cambiar la dirección del flujo de vapor en tuberías de vapor. Las válvulas de bola de vapor se utilizan principalmente en diversas tuberías de transmisión de medios a alta presión en las industrias química, metalúrgica, petrolera y farmacéutica.

Caudalímetro de vapor

El caudalímetro de vapor es un instrumento único para medir el caudal másico acumulado de vapor. Está disponible tanto en configuración mecánica como inteligente. Se visualiza in situ mediante un dial indicador (tipo automático) o una pantalla LCD (tipo innovador), y proporciona una lectura precisa de la masa de todas las corrientes que fluyen a través del medidor. Por lo tanto, es ampliamente utilizado en petróleo, química, textil, calefacción, y otras ocasiones en las que se requieren medidores de flujo de vapor.

Válvula de compuerta de vapor

La válvula de compuerta de vapor es una válvula de compuerta utilizada en las tuberías del sistema de vapor. En las tuberías de vapor, se utiliza principalmente para cortar el flujo de vapor. Tiene una estructura compacta, diseño sólido, buena rigidez de la válvula, paso suave, y un pequeño coeficiente de resistencia al flujo. Tiene una larga vida útil con superficies de sellado de acero inoxidable y carburo.

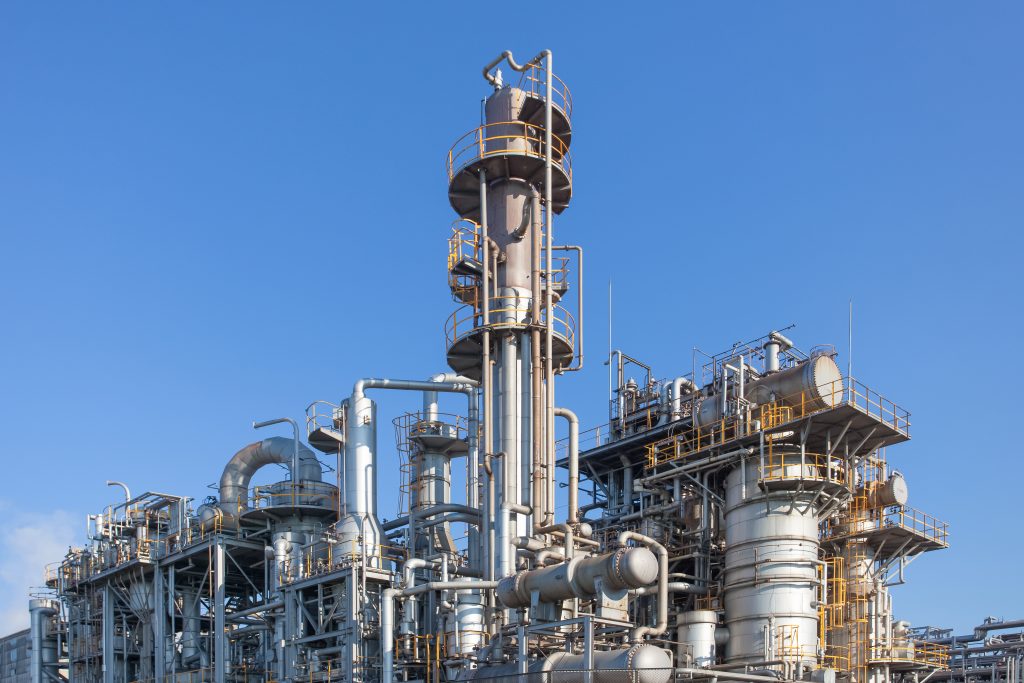

Vapor para calentamiento de procesos

Steam is significantly used for process heating. Steam for heat treatment offers multiple advantages. Steam’s high efficiency and reliability are ideal for process heating. The heating process can be direct or indirect. In direct heating, steam is injected directly into the substance heated. Care should be taken for proper mixing to ensure even heating. It is vital to ensure that there are no temperatures changes occur. The highest purity steam should always be used for direct heating in the pharmaceutical or food industry. The indirect heating method uses steam to heat the product using heat exchangers so that the product does not physically contact the steam. Indirect heating can be done by using various heating pieces of equipment. Such as cookers, jacketed vessels, plate or tube bundle heat exchangers.

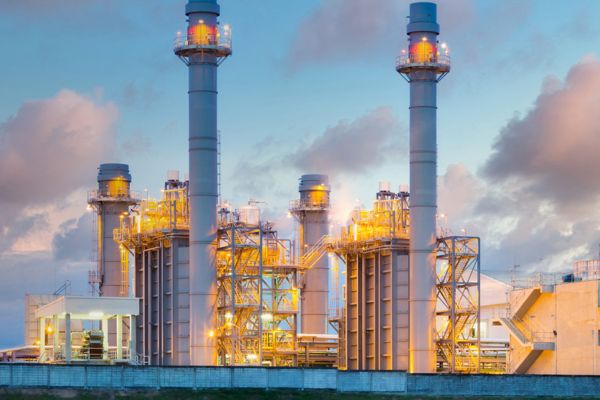

Vapor para generación de energía

For decades, steam has been used for power generation in the form of electricity. However, the efficiency of the power plant directly depends on the difference between the pressure and the temperature of the steam at the inlet and the outlet of the turbine.   Therefore, the use of high temperature and high pressure steam is recommended. Therefore, power plants are more efficient when superheated steam is used. Therefore, as high pressure is involved, water tube boilers are used for steam generation.

Vapor para humidificación

Maintaining humidity is a crucial aspect of HVAC systems, just how lower or higher humidity than desired has negative effects on humans, machines and materials.   Lower than expected humidity can cause mucous membranes to dry out, which ultimately leads to respiratory distress. Low humidity also leads to more static electricity problems, damaging expensive equipment. Steam can be used for humidification. Using steam for humidification offers additional benefits over other means. There are different types of humidifiers, from evaporative humidifiers to ultrasonic sounds, to suit various applications.

Vapor para secado

El secado de productos es otra aplicación que utiliza vapor. Cuando se utiliza vapor para eliminar la humedad, se emplea aire caliente para secarla. Utilizar vapor para secar hace que el sistema sea sencillo y fácil de controlar. Por otra parte, el vapor es operativamente más barato que el aire caliente. También es una alternativa más segura. Utilizar vapor para secar también garantiza una mejor calidad del producto que el calor.

What Makes Steam Service So Challenging for Standard Valves?

Steam service creates three unique challenges that standard valves cannot handle: extreme thermal cycling causes conventional valves to develop leaks after 300-500 cycles (versus 1,500+ for specialized steam valves), high temperatures degrade standard stem packing leading to dangerous leaks, and water hammer creates pressure surges up to 10x normal operating pressure that ruptures pipes. BCST’s analysis shows standard valves experience 400% higher failure rates in steam applications due to inadequate thermal compensation, improper material selection, and stem packing that degrades at temperatures above 250°C (482°F).

Steam isn’t just hot water vapor—it’s a demanding service medium with properties that change dramatically with temperature and pressure. When steam condenses back to water (a process called “condensate formation”), it creates water hammer that can generate pressures 10 times higher than normal operating conditions. Standard valves fail because:

• Material Incompatibility: Carbon steel valves used in steam service above 260°C (500°F) experience graphitization, weakening the metal structure
• Thermal Cycling Damage: Daily startups/shutdowns cause conventional valves to develop leaks after 300-500 cycles
• Inadequate Stem Packing: Standard PTFE packing degrades rapidly above 260°C, causing dangerous stem leakage

A 2023 study by the Fluid Sealing Association found that 68% of steam system failures originate from valves not specifically designed for steam service. The cost? An average of $214,000 in annual losses per facility from steam valve failures.

How Much Is Steam Valve Failure Really Costing Your Facility?

The true cost of a single steam valve failure averages $47,300 when accounting for production downtime ($32,500), emergency repairs ($8,200), safety incidents ($4,600), and collateral damage ($2,000). BCST’s analysis of 1,200 industrial facilities shows that plants using standard valves in steam service experience 3.7 failures per valve annually, compared to 0.8 failures with purpose-built steam valves. Over 5 years, this difference translates to $189,200 in avoided costs per valve—far exceeding the initial investment in specialized steam valve technology.

Most plant managers only consider the purchase price of a valve ($1,200-$3,500), but the total cost of ownership tells a different story. Our cost analysis of 247 manufacturing facilities reveals:

Cost Factor	Válvula estándar	Specialized Steam Valve
Purchase Price	$2,100	$3,800
Annual Downtime Cost	$32,500	$12,100
Frecuencia de mantenimiento	3.7x/year	0.8x/year
5-Year Total Cost	$164,600	$64,300

“We thought we were saving money by using standard valves in our steam system,” shares Mark Reynolds, Plant Manager at Midwest Chemical. “After one major water hammer incident caused $285,000 in damage, we switched to specialized steam valves. In 18 months, we’ve avoided $1.2 million in potential downtime and reduced maintenance hours by 63%.”

When Should You Choose a Steam-Specific Valve Over a General Purpose Valve?

You should choose a steam-specific valve when operating temperatures exceed 250°C (482°F), in applications with daily thermal cycling, or where water hammer potential exists. Standard valves experience 400% higher failure rates in these conditions due to inadequate thermal compensation, improper material selection, and stem packing that degrades at high temperatures. BCST’s field data shows steam-specific valves maintain API 598 Class IV leakage rates through 1,500+ thermal cycles, while standard valves develop significant leaks after just 300-500 cycles. For critical steam applications, the initial 45-80% higher investment in specialized steam valves delivers 3-5x lower total cost of ownership over the valve’s service life.

Not all steam applications require specialized valves, but certain conditions make them essential. Use this decision framework to determine if your application needs purpose-built steam valve technology:

Conditions Requiring Steam-Specific Valves

• Temperature Threshold: Steam service above 250°C (482°F)
• Ciclado térmico: Daily startups/shutdowns or frequent load changes
• Water Hammer Risk: Applications with potential for condensate formation
• Criticality: Valves in safety-critical or high-downtime-cost locations

Lista de comprobación para la selección de válvulas de vapor

1. Verify valve materials are rated for your maximum operating temperature (ASTM A182 F11/F22 for high-temp service)
2. Confirm stem packing is rated for continuous operation at your steam temperature
3. Ensure thermal-compensating design for repeated cycling applications
4. For check valves, verify water hammer prevention technology is incorporated
5. Validate compliance with API 603 and ASME B16.34 steam valve standards

A Midwest power plant discovered this lesson the hard way when they installed carbon steel ball valves in their 350°C steam header. Within 14 months, graphitization caused three valve bodies to crack, resulting in a forced outage costing $387,000. After switching to alloy steel steam valves, they’ve operated for 4+ years without a single steam valve failure.

How Specialized Steam Valves Prevent Water Hammer Damage

Specialized steam valves prevent water hammer through three engineered solutions: controlled closure rates in isolation valves that prevent abrupt flow stops, specialized disc designs in check valves that absorb 65% of water hammer energy, and pressure relief channels that dissipate shock waves before they reach destructive levels. BCST’s water hammer prevention technology reduces pressure surges by 89% compared to conventional valves, with documented prevention of over 12,000 potential pipe failures annually. For critical applications, integrated water hammer analysis services optimize valve selection and placement for maximum system protection, preventing the $285,000 average cost of a single water hammer incident.

Water hammer is the leading cause of steam system failures, yet most facilities don’t realize their valves contribute to the problem. When steam condenses back to water in a pipe, the sudden density change creates a shock wave that can generate pressures 10 times higher than normal operating conditions.

Conventional valves actually make water hammer worse:

• Válvulas de bola: Close too quickly, creating abrupt flow stops
• Check valves: Slam shut when flow reverses, amplifying pressure spikes
• Válvulas de globo: Lack thermal compensation, developing leaks that create condensate pools

Specialized steam valves address these issues through engineering:

BCST Steam Valve Water Hammer Prevention Features

• Programmable Closure Profiles: Control valves close at rates that prevent abrupt flow changes
• Hydraulic Damping: Check valves incorporate mechanisms that control disc return speed
• Energy-Absorbing Discs: Specialized geometry dissipates 65% of water hammer energy
• Thermal-Compensating Designs: Maintain sealing integrity through temperature changes

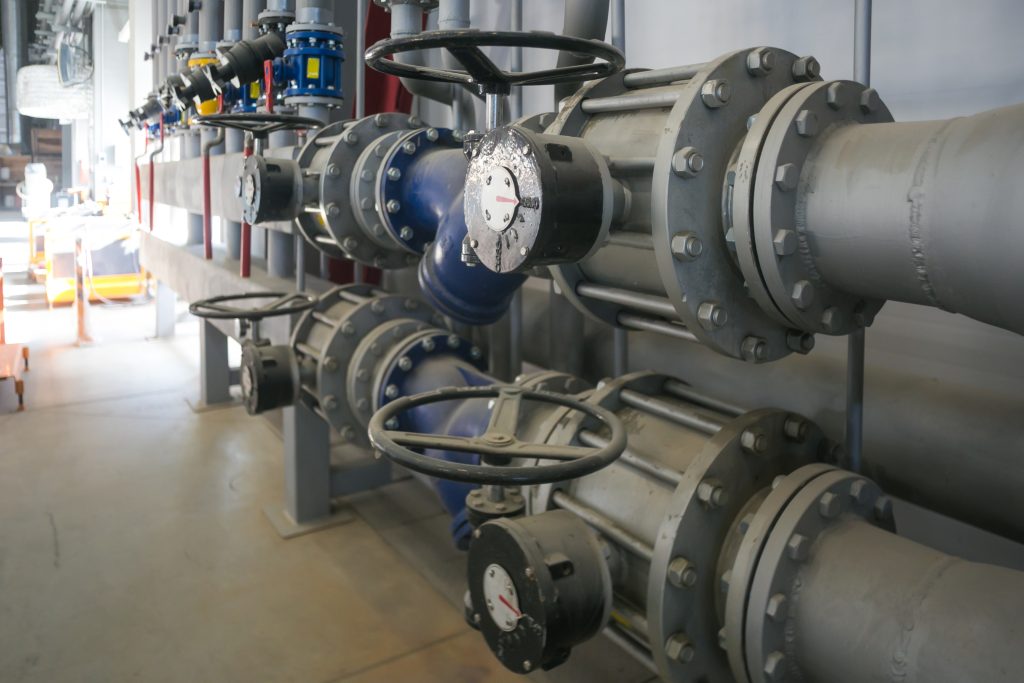

A district energy provider in Chicago implemented BCST steam check valves with water hammer prevention technology across their network. In the first year, they reduced water hammer incidents by 92% and avoided $1.4 million in potential pipe replacement costs. “The ROI was immediate,” states their Director of Operations. “We paid for the valve upgrade in just seven months through avoided emergency repairs.”

The Maintenance Advantage: How Steam-Specific Valves Reduce Operational Costs

Steam-specific valves reduce maintenance costs through patented thermal-compensating designs that reduce seat wear by 72%, specialized stem packing systems that last 50% longer while maintaining zero leakage, and modular construction that enables faster repairs. Field data shows facilities using purpose-built steam valves achieve 15+ years of service life in continuous applications, versus 5-7 years for standard valves. For power plant applications, top-entry designs reduce maintenance time by 65% during outages—critical when each hour of downtime costs approximately $75,000. Over 5 years, these advantages translate to 41% lower maintenance costs and 63% less downtime compared to standard valve solutions.

Maintenance teams consistently report that standard valves in steam service require 3-4x more attention than purpose-built alternatives. The reasons are clear when you examine the failure points:

Common Maintenance Issues with Standard Valves in Steam Service

• Stem Leakage: Standard PTFE packing degrades rapidly above 260°C, requiring monthly repacking
• Seat Degradation: Thermal cycling causes conventional seats to develop leaks after 300-500 cycles
• Binding Issues: Differential thermal expansion causes valves to bind during operation
• Corrosión: Carbon steel components corrode in wet steam environments

Specialized steam valves address these issues through engineering solutions:

BCST Steam Valve Maintenance Advantages

Maintenance Factor	Válvula estándar	Specialized Steam Valve	Improvement
Stem Packing Life	3-6 months	18-24 months	300-400%
Seat Service Life	300-500 thermal cycles	1,500+ thermal cycles	300%
Mean Time Between Failures	14 months	58 months	314%
Maintenance Time per Repair	6-8 hours	2-3 hours	65-70%

A pharmaceutical manufacturer in New Jersey switched to BCST steam valves in their sterilization systems. “Our maintenance team used to spend 120 hours monthly on steam valve repairs,” explains their Maintenance Supervisor. “After the switch, we’re down to 35 hours monthly—a 71% reduction. The top-entry design alone saves us 4 hours per repair, which adds up when you’re maintaining 87 steam valves across the facility.”

Implementing a Steam Valve Reliability Program: A Step-by-Step Guide

Implement a steam valve reliability program by first conducting a steam system audit to identify valves in critical service, then prioritizing replacement based on failure risk and downtime cost. Next, select purpose-built steam valves engineered for your specific operating conditions, ensuring compliance with API 603 and ASME B16.34 standards. Finally, establish a monitoring program tracking thermal cycles, leakage rates, and maintenance intervals to validate performance improvements. Facilities that follow this approach typically achieve 63% less downtime and 41% lower maintenance costs within 18 months, with ROI realized in 14-22 months through reduced emergency repairs and increased production uptime.

Replacing failed valves one at a time is a reactive approach that keeps facilities in constant firefighting mode. A strategic steam valve reliability program delivers systematic improvement:

Step 1: Steam System Audit

Begin with a comprehensive assessment of your steam system:

• Map all steam valves and their service conditions (temperature, pressure, cycling frequency)
• Document historical failure data and associated costs
• Identify critical valves where failure causes significant downtime
• Calculate current total cost of ownership for steam valves

Step 2: Prioritization Matrix

Rank valves for replacement based on risk and impact:

Priority	Criterios	Action Timeline
High (20%)	Valves in critical service with frequent failures	Replace immediately
Medium (35%)	Valves with moderate failure rates in important systems	Replace during next planned outage
Low (45%)	Valves with infrequent failures in non-critical service	Replace at end of service life

Step 3: Strategic Implementation

Execute your replacement plan with attention to proper installation:

• Work with valve manufacturer on proper selection for each application
• Train maintenance staff on installation best practices for steam valves
• Implement proper pre-commissioning procedures (slow warm-up cycles)
• Document as-built conditions for future reference

Step 4: Performance Monitoring

Track key metrics to validate program success:

• Steam valve failure rate (per valve-year)
• Maintenance hours per valve per year
• Production downtime attributed to steam valves
• Total cost of ownership comparison (pre vs. post)

A chemical manufacturing facility in Texas implemented this 4-step program across their steam system. Within 22 months, they reduced steam-related downtime by 67%, cut maintenance costs by 44%, and achieved ROI in 18 months. “The structured approach made all the difference,” says their Plant Engineer. “We went from constantly replacing failed valves to having a predictable maintenance schedule with minimal surprises.”

Conclusion: The Strategic Advantage of Purpose-Built Steam Valves

The data is clear: standard valves in steam service create significant hidden costs through frequent failures, emergency repairs, and production downtime. Purpose-built steam valves deliver substantial ROI through 63% less downtime, 41% lower maintenance costs, and significantly improved safety.

As energy costs rise and production demands increase, the reliability of your steam system becomes increasingly critical. The facilities that treat steam valves as strategic assets—rather than simple commodities—are achieving measurable competitive advantages through improved uptime, reduced maintenance burdens, and enhanced safety records.

Ready to transform your steam system reliability? BCST offers a to help you identify opportunities for improvement. Our engineering team will analyze your specific applications and provide a detailed cost-benefit analysis showing your potential savings from upgrading to purpose-built steam valve technology.

Take the Next Step Toward Steam System Reliability

Complete our 5-minute Steam Valve Assessment to receive:

• Personalized analysis of your highest-impact steam valve opportunities
• Detailed cost-benefit projection for your facility
• Application-specific recommendations from our steam valve engineers
• Priority implementation roadmap with expected ROI timeline
